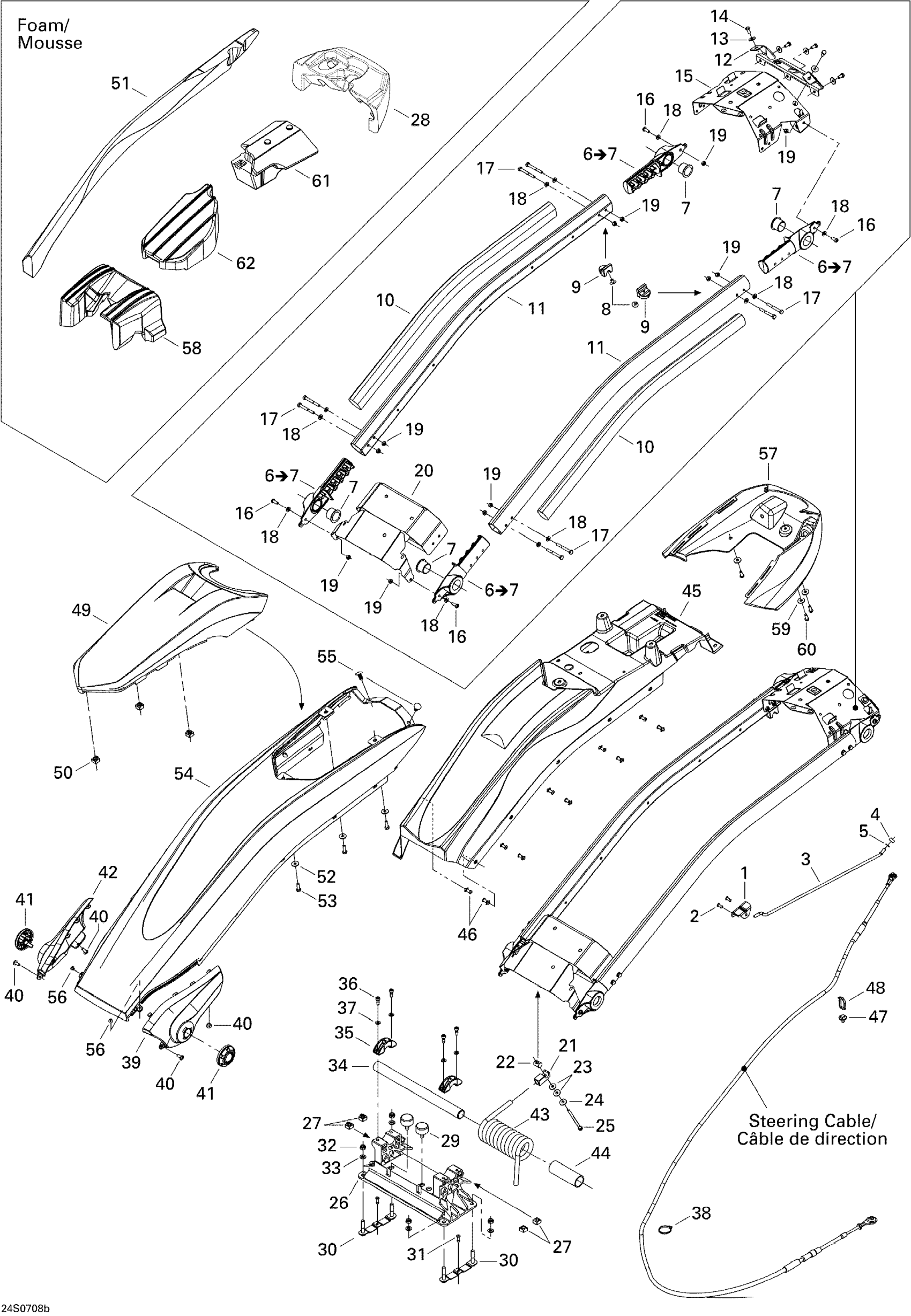

Sea-doo 3D 947 DI, 2007 Steering System 2 Diagram

#

Description
Price

1

Prop Rod Hold

277001311

Unavailable

2

Pop Rivet 3/16"

293150043

$2.09

3

PROP ROD - Call your local BRP dealership

277001310

Unavailable

4

Shock Washer

293720075

Unavailable

5

Stainless Flat Washer M6

234061600

$0.33

6

END ASS'Y - Call your local BRP dealership | Includes 6 to 7

277001312

Unavailable

7

BUSHING - Call your local BRP dealership

293900055

Unavailable

8

Pop Rivet 3/16”

293150092

$3.09

9

RUBBER BUMPER - Call your local BRP dealership

277001294

Unavailable

10

Pole Float

277001348

Unavailable

11

BEAM - Call your local BRP dealership

277001493

Unavailable

12

BUMPER SUPPORT - Call your local BRP dealership

277001349

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

15

Support

277001340

Unavailable

16

Hex. Screw M6 X 16

207161660

$1.59

17

Hex. Screw M6 X 50

207065060

$2.22

18

Stainless Flat Washer M6

234061600

$0.33

19

Hex. Elastic Stop Nut M6

232561600

$1.15

20

STIFFENER - Call your local BRP dealership

277001228

Unavailable

21

Spring Hook

277001341

Unavailable

22

Cylindrical Nut

277001342

Unavailable

23

Flat Washer 6 mm

234062100

$1.26

24

Flat Washer M6, Stainless

234062600

$0.77

25

Hex. Screw M6 X 90

207169060

$4.34

26

MOUNT BRIGE - Call your local BRP dealership

277001230

Unavailable

27

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

28

Rear Foam Pole

277001383

Unavailable

29

Rubber Stopper

708000758

$12.99

30

Retainer Plate

277001231

Unavailable

31

Pop Rivet 3/16"

293150013

$1.37

32

Hex. Elastic Nut M8

232581600

$1.48

33

Stainless, Flat Washer 8 mm

234081600

$0.55

34

TUBE - Call your local BRP dealership

277001497

Unavailable

35

RETAINER CLAMP ANODIZED - Call your local BRP dealership

277001233

Unavailable

36

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

37

Stainless Flat Washer M6

234061600

$0.33

38

Tie-Rap 180 mm

414115200

$0.11

39

LH END CAP - Call your local BRP dealership

277001234

Unavailable

40

Black, Dart

293730016

$9.97

41

AXLE CAP - Call your local BRP dealership

277001274

Unavailable

42

RH END CAP - Call your local BRP dealership

277001235

Unavailable

43

Spring

277001315

Unavailable

44

Spring Guide

277001237

Unavailable

45

INNER COVER - Call your local BRP dealership

277001395

Unavailable

46

Rivet | Model-T3

293150067

$2.89

47

Mount Dart

293730040

$1.04

48

Tie-Rap 180 mm

414115200

$0.11

49

Upper Steering Cover

277001221

Unavailable

50

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

51

RH Pole Foam

277001350

Unavailable

52

Flat Washer M6, Stainless

234062600

$0.77

53

Hex. Forming Screw M6 X 20

207162060

$1.29

54

Pole Cover

277001418

Unavailable

55

Black Dart

293730010

$0.99

56

Pop Rivet 3/16"

204000081

$1.49

57

LOWER STEERING COLUMN TRIM - Call your local BRP dealership

277001268

Unavailable

58

Upper Pole Foam

277001314

Unavailable

59

Flat Washer M6, Stainless

234062600

$0.77

60

SOCKET HEAD SCREW M6, SCOTCH GRIP - Call your local BRP dealership

205961660

Unavailable

61

Lower Pole Foam

277001304

Unavailable

62

Middle Pole Foam

277001317

Unavailable
