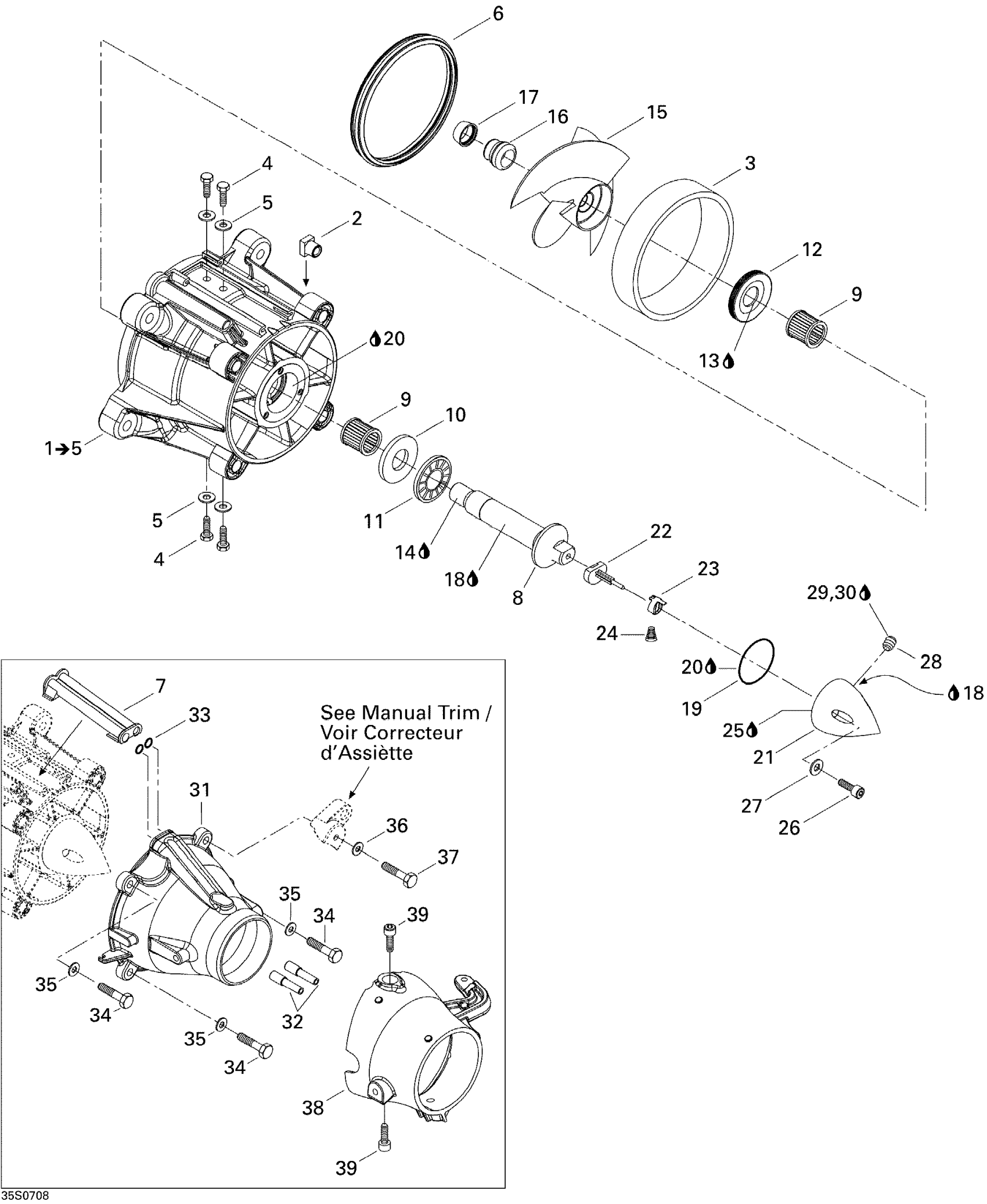

Sea-doo 3D 947 DI, 2007 05- Pump Diagram

#

Description
Price

1

HOUSING ASSEMBLY - Call your local BRP dealership | Includes 1 to 5

267000268

Unavailable

2

Square Nut M8

211100033

$17.99

3

Wear Ring

271000653

$58.49

4

Hex. Plastite Screw #10 X 3/8"

250000040

$1.05

5

Flat Washer M5, Stainless

234051600

$0.77

6

Neoprene Seal

293200087

$12.63

7

Water Outlet

271000785

$3.80

8

Impeller Shaft

271000965

$116.49

9

Needle Bearing

293350017

$27.99

10

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

11

Thrust-Bearing

293350022

$45.99

12

Oil Seal

267000094

$22.49

13

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

14

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

15

Impeller Ass’Y

271000920

$391.99

16

Impeller Boot

271000516

$9.59

17

Impeller Ring

271000517

$9.59

18

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

19

O-Ring

293300011

$8.64

20

Synthetic Grease, 400 G

293550010

Unavailable

21

IMPELLER COVER - Call your local BRP dealership

267000267

Unavailable

22

PUSHER ASS?Y - Call your local BRP dealership

271001124

Unavailable

23

SLIDER - Call your local BRP dealership

271001107

Unavailable

24

SPRING - Call your local BRP dealership

271001108

Unavailable

25

Synthetic Grease, 400 G

293550010

Unavailable

26

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

27

Stainless Flat Washer M6

234061600

$0.33

28

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

29

Was 293800013 Loctite 56765

219704454

$65.99

30

Was 293800041 Loctite Primer 7649

219704458

$39.99

31

VENTURI, BLACK - Call your local BRP dealership

267000187

Unavailable

32

Siphon Tube

271001133

$10.99

33

O-Ring

293300013

$8.18

34

Hex. Screw M8 X 50, Scotch Grip

207285060

$2.11

35

Stainless, Flat Washer 8 mm

234081600

$0.55

36

Flat Washer 8 mm, Stainless

234082600

$2.43

37

HEX. SCREW M8 X 65, SCOTCH GRIP - Call your local BRP dealership

207286560

Unavailable

38

STEERING NOZZLE, BLACK - Call your local BRP dealership

267000081

Unavailable

39

Socket Head Screw M8 X 10, Scotch Grip

211000127

$3.99
