Description

Price

1

Throttle Body Ass'y | Includes 1 to 10

270600098

Unavailable

2

LOWER SUPPORT - Call your local BRP dealership

270600069

Unavailable

3

Support Ass'y | Includes 3 to 4

270600070

Unavailable

4

LATCH BRACKET - Call your local BRP dealership

270600073

Unavailable

5

Socket Head Screw M5 X 10

205051060

$1.58

6

ADJUSTER SCREW - Call your local BRP dealership

270600074

Unavailable

7

Spring

270600075

Unavailable

8

Position Sensor

420866120

$98.99

9

Position Sensor

420866120

$98.99

10

IDLE SCREW - Call your local BRP dealership

270600084

Unavailable

11

Norma Clamp

293650079

$11.60

12

Injection Cable | Includes 28 to 30

270000546

$58.99

13

Hex. Nut M6

232160600

$1.15

14

Stainless Flat Washer M6

234061600

$0.33

15

O-Ring

293250065

Unavailable

16

THROTTLE CABLE - Call your local BRP dealership

277001423

Unavailable

17

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

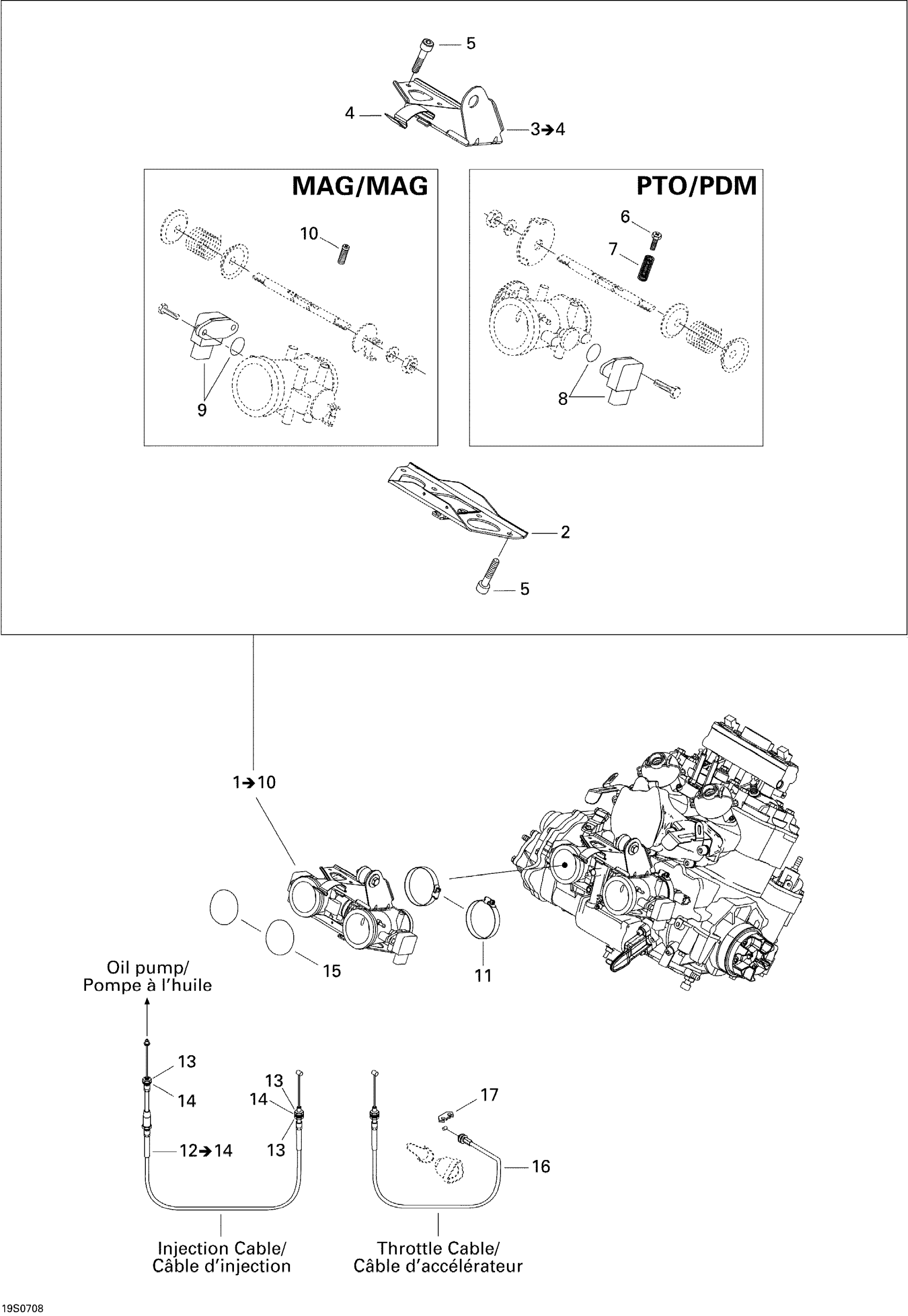

Sea-doo 3D 947 DI, 2007 02- Throttle Body Diagram

Throttle Body Ass'y | Includes 1 to 10

LOWER SUPPORT - Call your local BRP dealership

Support Ass'y | Includes 3 to 4

LATCH BRACKET - Call your local BRP dealership

Socket Head Screw M5 X 10

ADJUSTER SCREW - Call your local BRP dealership

Spring

Position Sensor

Position Sensor

IDLE SCREW - Call your local BRP dealership

Norma Clamp

Injection Cable | Includes 28 to 30

Hex. Nut M6

Stainless Flat Washer M6

O-Ring

THROTTLE CABLE - Call your local BRP dealership

TAB LOCK - Call your local BRP dealership
