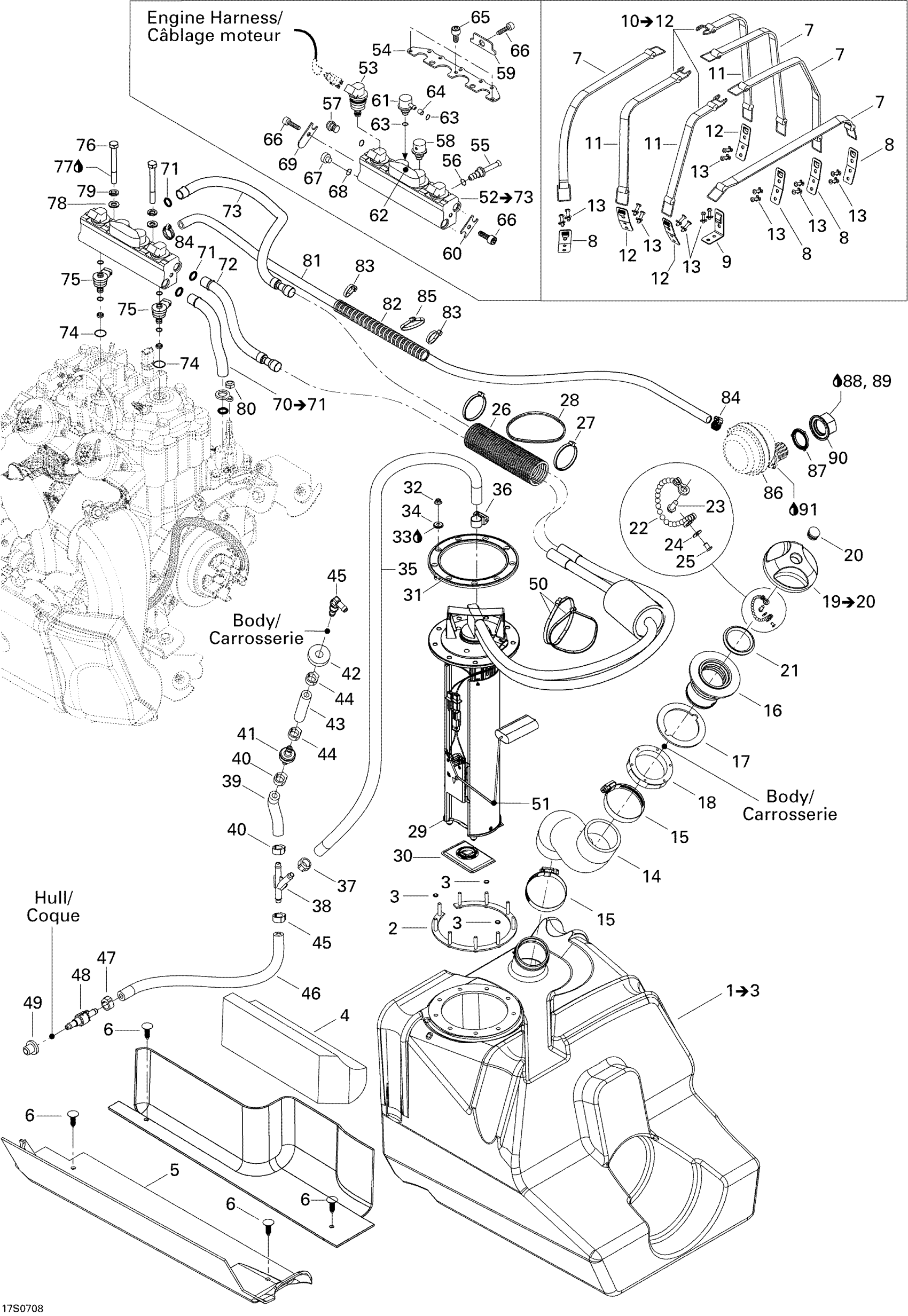

Sea-doo 3D 947 DI, 2007 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership | Includes 1 to 3

275500652

Unavailable

2

C-Ring, 9 Studs

275500679

$77.49

3

Push Nut

389804300

$0.53

4

FOAM PAD - Call your local BRP dealership

292001065

Unavailable

5

Rubber Pad

293830087

Unavailable

6

Black, Dart

293730006

$0.99

7

Fuel Tank Strap

293850093

$21.99

8

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

9

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

10

FUEL TANK STRAP - Call your local BRP dealership | Includes 10 to 12

293850037

Unavailable

11

Fuel Tank Strap

293850094

$22.49

12

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

13

Avdel Rivet 3/16"

293150037

$0.56

14

Fuel Hose Filler

275500649

Unavailable

15

Tridon Clamp

293650023

$13.49

16

Filler Neck, Fuel

275500231

$14.75

17

Gasket

293250029

$14.82

18

Filler Neck Nut, Fuel

211100012

$14.22

19

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

20

Black, Snap Cap

293000034

$9.39

21

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

22

Fuel Cap Chain

275500974

$19.99

23

Screw K40 X 10

241140060

$1.48

24

Flat Washer M3, Stainless

234032600

$0.55

25

Pop Rivet 1/8"

390407900

$1.49

26

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

27

Tie Wrap 368 mm

293750008

$1.04

28

Tie Wrap 368 mm

293750008

$1.04

29

FUEL MODULE ASS'Y - Call your local BRP dealership

275500655

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Gasket

293250088

$14.99

32

Hex. Flange Nut M5

250100071

$2.11

33

Loctite 243, 10 ml

293800060

$21.49

34

Rubber Washer

291001956

Unavailable

35

Was 275500549 Hose 1/4"

219704357

$194.99

36

Tridon Gear Clamp

293650170

$1.99

37

Oetiker Gear Clamp

293650025

$3.09

38

Y-Fitting

293710059

$9.69

39

Was 275500549 Hose 1/4"

219704357

$194.99

40

Oetiker Gear Clamp

293650025

$3.09

41

Check Valve

275500398

$10.99

42

Grommet

709200285

$9.69

43

Was 275500549 Hose 1/4"

219704357

$194.99

44

Oetiker Gear Clamp

293650025

$3.09

45

Elbow Male Connector

414580600

$4.23

46

Was 275500549 Hose 1/4"

219704357

$194.99

47

Oetiker Gear Clamp

293650025

$3.09

48

Check Valve

275500505

$31.99

49

Grommet

293720029

$1.59

50

Tie Wrap 368 mm

293750008

$1.04

51

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

52

FUEL DISTRIBUTOR ASS'Y - Call your local BRP dealership | Includes 52 to 73

275500656

Unavailable

53

Fuel Injector

275500460

$329.99

54

RETAINER PLATE - Call your local BRP dealership

275500543

Unavailable

55

AIR ADAPTER - Call your local BRP dealership

275500538

Unavailable

56

O-RING - Call your local BRP dealership

293300069

Unavailable

57

FUEL PLUG - Call your local BRP dealership

275500595

Unavailable

58

Air Regulator

275500463

Unavailable

59

RETAINER PLATE - Call your local BRP dealership

275500456

Unavailable

60

RETAINER PLATE - Call your local BRP dealership

275500596

Unavailable

61

FUEL REGULATOR - Call your local BRP dealership

275500464

Unavailable

62

Cover

275500449

Unavailable

63

O-Ring

293300072

Unavailable

64

SPACER - Call your local BRP dealership

275500465

Unavailable

65

SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership

205051260

Unavailable

66

Socket Head Screw M6 X 12

205061260

$1.58

67

AIR PLUG - Call your local BRP dealership

275500597

Unavailable

68

O-Ring

275500598

Unavailable

69

RETAINER PLATE - Call your local BRP dealership

275500455

Unavailable

70

Pressure Hose | INCLUDES 72 TO 73

270600022

Unavailable

71

O-Ring

293300070

Unavailable

72

FUEL HOSE ASS'Y - Call your local BRP dealership

275500657

Unavailable

73

FUEL HOSE ASS'Y - Call your local BRP dealership

275500658

Unavailable

74

O-Ring

293300083

Unavailable

75

Air Injector | Includes 45 to 48

275500633

$329.99

76

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

77

Loctite 243, 10 ml

293800060

$21.49

78

Stainless, Flat Washer 8 mm

234081600

$0.55

79

Lock Washer 8 mm, Stainless

234181601

$0.55

80

Hex. Elastic Stop Nut M6

232561600

$1.15

81

BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership

276000084

Unavailable

82

Tubing 16 Mm 1000Mm Long

219704408

$7.49

83

Tie Wrap 142 mm

293750002

$1.25

84

Tridon Gear Clamp

293650170

$1.99

85

Tie Wrap 142 mm

293750002

$1.25

86

Noise Reducer

270000569

Unavailable

87

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

88

Was 293800041 Loctite Primer 7649

219704458

$39.99

89

Loctite 243, 10 ml

293800060

$21.49

90

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

91

Silicone Sealant 51388, 300 ml

296000309

$36.99
