- 3D 947 DI, 2007
01- Exhaust System

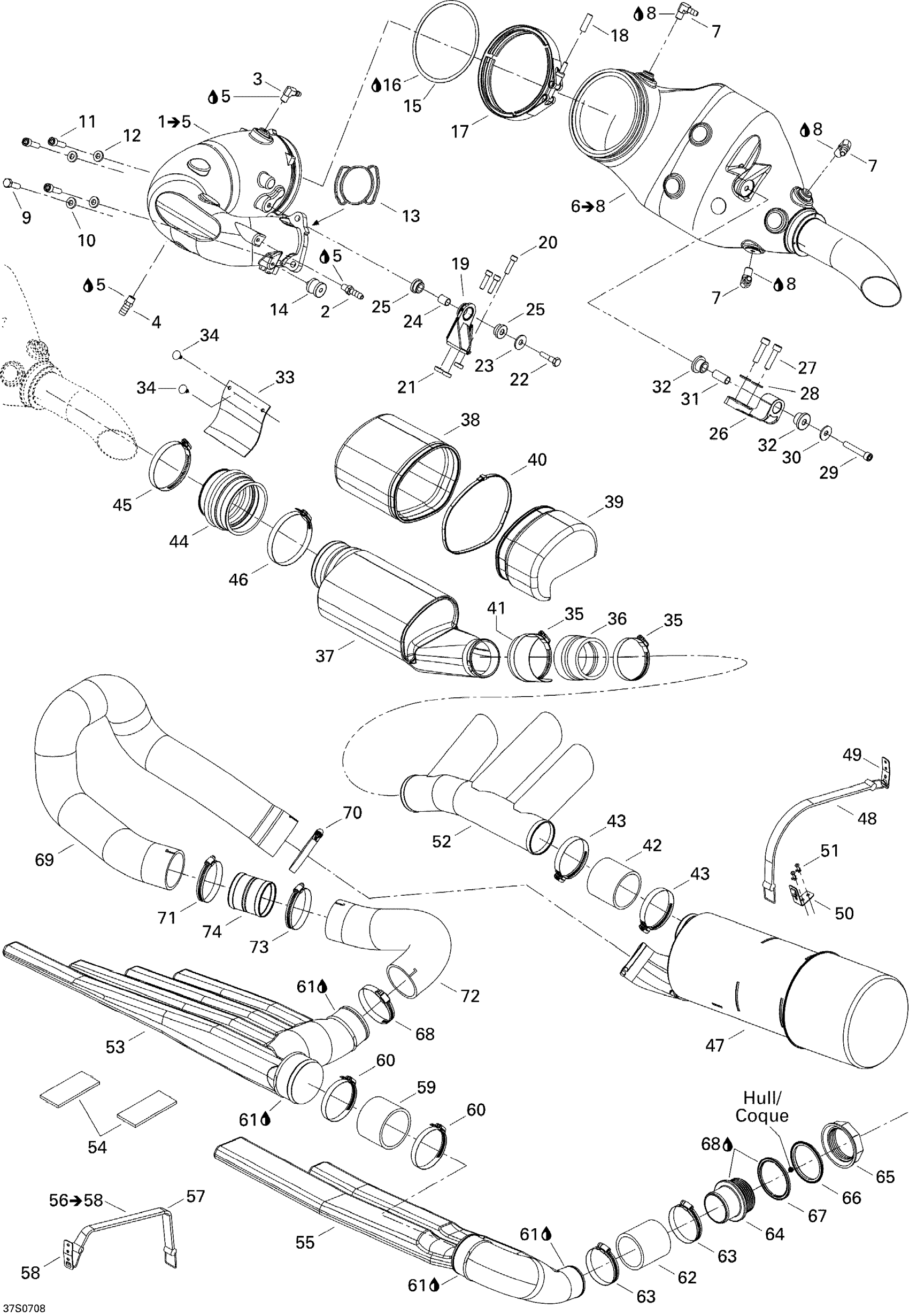

Sea-doo 3D 947 DI, 2007 01- Exhaust System Diagram
#
1
HEAD PIPE - Call your local BRP dealership | Includes 1 to 5
274001333
Unavailable
2
Male Connector
293710037
$10.49
3
Elbow Fitting
293700016
Unavailable
4
Male Connector | With Catalyst
293710021
$14.23
5
Was 293800018 Loctite 592, 50 ml | Package T
219704455
$33.99
6
Cone Pipe | Includes 6 to 8
274001334
Unavailable
7
Elbow Fitting
293700016
Unavailable
8
Was 293800018 Loctite 592, 50 ml | Package T
219704455
$33.99
9
HEX. SCREW M10 X 35 - Call your local BRP dealership
245103570
Unavailable
10
Flat Washer
211200051
$1.68
11
SOCKET SCREW M10 X 35 - Call your local BRP dealership
244003570
Unavailable
12
Flat Washer
211200051
$1.68
13
EXHAUST GASKET - Call your local BRP dealership
420931990
Unavailable
14
Rubber Isolator
707000949
$11.49
15
SEALING RING - Call your local BRP dealership
274000511
Unavailable
16
Sealant, Loctite, 80 ml | DS 650
293800090
$26.99
17
EXHAUST CLAMP - Call your local BRP dealership
274000510
Unavailable
18
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
19
Pipe Support, Black
274001109
Unavailable
20
SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership
244083060
Unavailable
21
FLAT WASHER M8.4 - Call your local BRP dealership
250200012
Unavailable
22
HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership
245004060
Unavailable
23
Flat Washer 10 mm, Stainless
234002600
$2.22
24
BUSHING - Call your local BRP dealership
274000861
Unavailable
25
RUBBER BUSHING - Call your local BRP dealership
293830065
Unavailable
26
SUPPORT - Call your local BRP dealership
274001328
Unavailable
27
SOCKET SCREW M8 X 40 - Call your local BRP dealership
244084070
Unavailable
28
Flat Washer 8 mm, Stainless
234082600
$2.43
29
Socket Screw M10 X 60
244006060
$3.59
30
Flat Washer 10 mm, Stainless
234002600
$2.22
31
BUSHING - Call your local BRP dealership
274001321
Unavailable
32
Rubber Bushing
293830114
Unavailable
33
Rubber Pad
293830109
Unavailable
34
Black, Dart
293730011
$0.99
35
TRIDON GEAR CLAMP - Call your local BRP dealership
293650006
Unavailable
36
EXHAUST HOSE - Call your local BRP dealership
274001234
Unavailable
37
Water Separator
274001219
Unavailable
38
FRONT MUFFLER COVER - Call your local BRP dealership
274001276
Unavailable
39
REAR MUFFLER COVER - Call your local BRP dealership
274001322
Unavailable
40
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
41
Heat Shield
274001235
Unavailable
42
Exhaust Hose
274001326
Unavailable
43
TRIDON GEAR CLAMP - Call your local BRP dealership
293650006
Unavailable
44
EXHAUST BELLOW - Call your local BRP dealership
274001314
Unavailable
45
Tridon Clamp
204000079
$9.99
46
TRIDON GEAR CLAMP - Call your local BRP dealership
293650169
Unavailable
47
Muffler Ass'y
274001231
Unavailable
48
Fuel Tank Strap
293850093
$21.99
49
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
50
STRAP CLIP - Call your local BRP dealership
293850075
Unavailable
51
Avdel Rivet 3/16"
293150037
$0.56
52
Resonator
274001230
Unavailable
53
LH UPPER RESONATOR - Call your local BRP dealership
274000700
Unavailable
54
RUBBER PAD - Call your local BRP dealership
274000752
Unavailable
55
RESONATOR EXTENSION - Call your local BRP dealership
274000701
Unavailable
56
Strap Ass`Y | Includes 56 to 58
293850082
Unavailable
57
Fuel Tank Strap
293850036
$18.99
58
Strap Clip
293850030
$11.12
59
EXHAUST HOSE - Call your local BRP dealership
274000726
Unavailable
60
Tridon Clamp
204000079
$9.99
61
Sealant, Loctite, 80 ml | DS 650
293800090
$26.99
62
Exhaust Hose
274001304
Unavailable
63
Tridon Clamp
293650064
$8.29
64
Exhaust Hose, Outlet
274001391
$29.49
65
NUT 72 MM - Call your local BRP dealership
274000835
Unavailable
66
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
67
GASKET - Call your local BRP dealership
293250041
Unavailable
68
Silicone Sealant 51388, 300 ml
296000309
$36.99
69
Exhaust Hose
274001311
Unavailable
70
TRIDON GEAR CLAMP - Call your local BRP dealership
293650006
Unavailable
71
Tridon Clamp
293650179
$11.49
72
EXHAUST HOSE - Call your local BRP dealership
274001312
Unavailable
73
Tridon Clamp
293650179
$11.49
74
HOSE ADAPTER - Call your local BRP dealership
274001313
Unavailable
