- 3D 947 DI, 2007
01- Cooling System

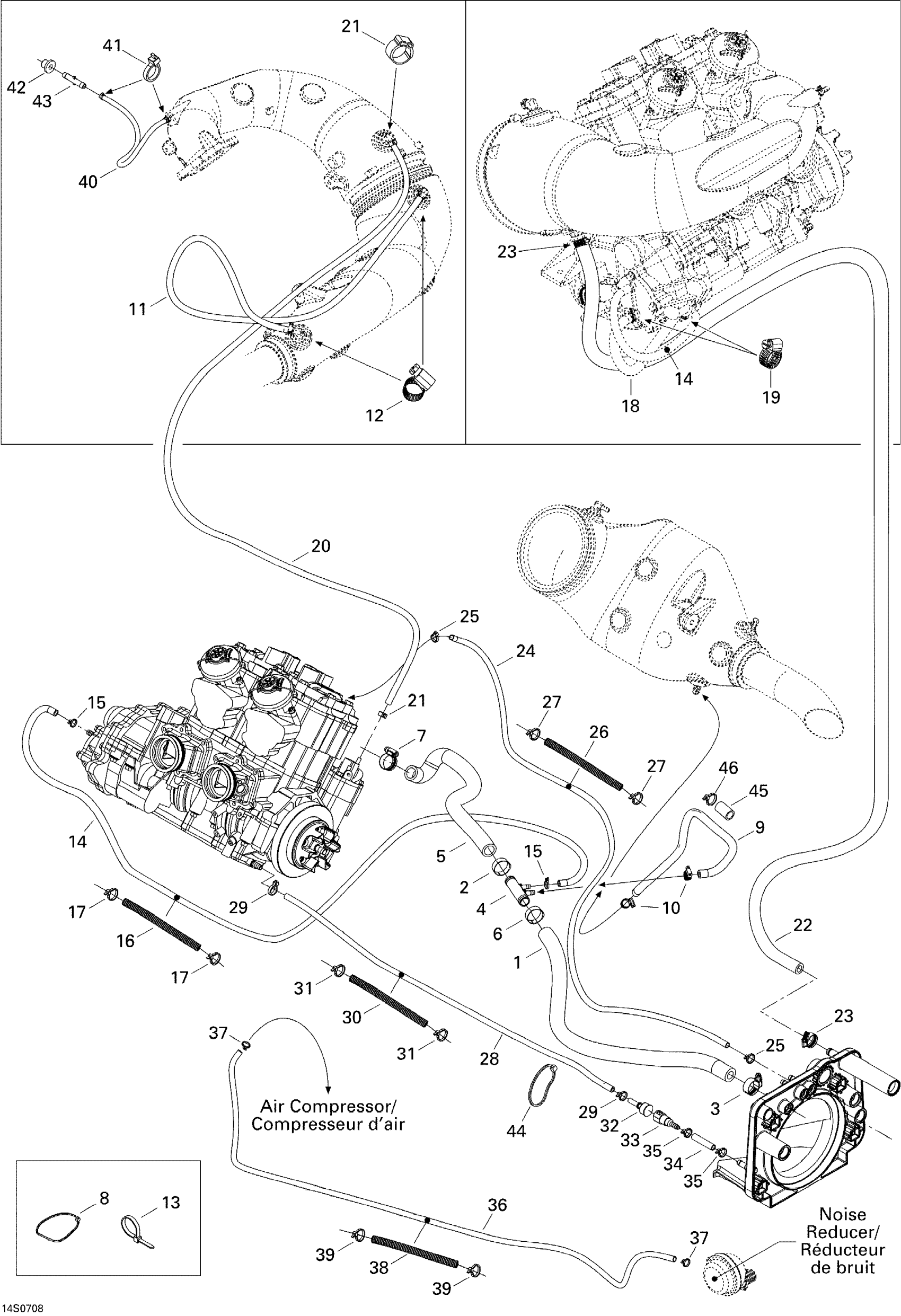

Sea-doo 3D 947 DI, 2007 01- Cooling System Diagram
#
1
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
2
Oetiker Gear Clamp
293650165
$5.39
3
Tridon Gear Clamp
293650051
$4.19
4
DOUBLE FITTING - Call your local BRP dealership
204300182
Unavailable
5
FORMED HOSE - Call your local BRP dealership
276000157
Unavailable
6
Oetiker Gear Clamp
293650165
$5.39
7
Tridon Gear Clamp
293650019
$5.82
8
Tie Wrap 368 mm
293750008
$1.04
9
HOSE 5/16 - Call your local BRP dealership
275500548
Unavailable
10
Tridon Gear Clamp
293650170
$1.99
11
HOSE 5/16 - Call your local BRP dealership
275500548
Unavailable
12
Tridon Gear Clamp
293650170
$1.99
13
Tie-Rap 180 mm
414115200
$0.11
14
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
15
Tie Wrap 94 mm | 4X4
293750001
$1.03
16
Was 409901800 Tubing (13 mm)
219704400
$14.49
17
Tie Wrap 94 mm | 4X4
293750001
$1.03
18
FORMED HOSE - Call your local BRP dealership
275500672
Unavailable
19
Tridon Gear Clamp
293650171
$3.09
20
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
21
Oetiker Clamp
293650042
$3.09
22
Was 276000001 Hose 12.5 mm
219704394
$51.99
23
Tridon Gear Clamp
293650172
$3.09
24
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
25
Tie Wrap 94 mm | 4X4
293750001
$1.03
26
Was 409901800 Tubing (13 mm)
219704400
$14.49
27
Tie Wrap 94 mm | 4X4
293750001
$1.03
28
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
29
Tie Wrap 94 mm | 4X4
293750001
$1.03
30
Was 409901800 Tubing (13 mm)
219704400
$14.49
31
Tie Wrap 94 mm | 4X4
293750001
$1.03
32
Quick Male Fitting
275500435
Unavailable
33
QUICK FEMALE FITTING - Call your local BRP dealership
275500436
Unavailable
34
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
35
Tie Wrap 94 mm | 4X4
293750001
$1.03
36
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
37
Tie Wrap 94 mm | 4X4
293750001
$1.03
38
Was 409901800 Tubing (13 mm)
219704400
$14.49
39
Tie Wrap 94 mm | 4X4
293750001
$1.03
40
Hose 6 Mm 15000Mm Long
219704360
$132.49
41
Tie Wrap 94 mm | 4X4
293750001
$1.03
42
Grommet
293720029
$1.59
43
Straight Fitting
293710039
$7.59
44
Tie-Rap 180 mm
414115200
$0.11
45
Shrink Tubing
276000132
Unavailable
46
Tie Wrap 94 mm | 4X4
293750001
$1.03
