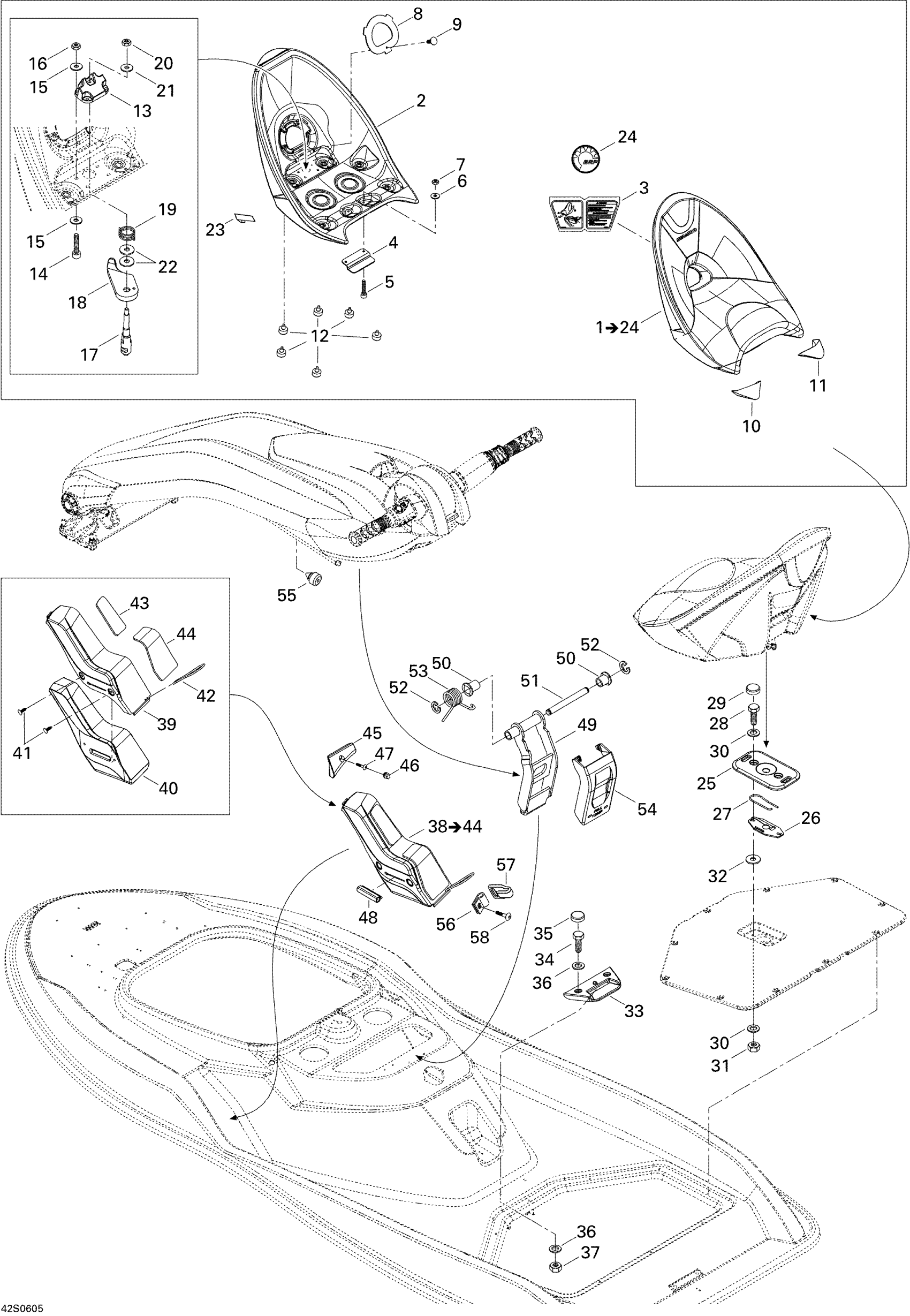

Sea-doo 3D 947 DI, 2006 Kart Seat Diagram

#

Description
Price

1

Kart Seat Ass'y, Black | Includes 1 to 24

269001254

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

WARNING LABEL, KART SEAT - Call your local BRP dealership

219902454

Unavailable

4

KART SEAT PLATE - Call your local BRP dealership

269001167

Unavailable

5

Socket Head Screw M6 X 25

205062560

$1.69

6

Flat Washer M6, Stainless

234062600

$0.77

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Black, Dart

293730011

$0.99

9

Black, Dart

293730006

$0.99

10

RH Seat Corner

269001157

Unavailable

11

LH Seat Corner

269001158

Unavailable

12

Rubber Stopper

708000758

$12.99

13

PINE SUPPORT - Call your local BRP dealership

269001150

Unavailable

14

Socket Head Screw M6 X 25

205062560

$1.69

15

Flat Washer M6, Stainless

234062600

$0.77

16

Hex. Elastic Stop Nut M6

232561600

$1.15

17

PINE - Call your local BRP dealership

269001149

Unavailable

18

PINE HANDLE - Call your local BRP dealership

269001152

Unavailable

19

PINE SPRING - Call your local BRP dealership

269001151

Unavailable

20

Hex. Elastic Stop Nut M6

232561600

$1.15

21

Stainless Flat Washer M6

234061600

$0.33

22

Flat Washer 10 mm, Stainless

234001600

$1.15

23

Not Available As Spare Part - Friction Washer

Unavailable

24

BRP Logo, Vinyl

219902477

Unavailable

25

LATCH BASE - Call your local BRP dealership

269001156

Unavailable

26

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

27

Latch Spring

269700017

$9.19

28

Hex. Screw M6 X 40

207064060

$1.69

29

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

30

Stainless Flat Washer M6

234061600

$0.33

31

Hex. Elastic Stop Nut M6

232561600

$1.15

32

Flat Washer M6, Stainless

234062600

$0.77

33

SEAT HOOK - Call your local BRP dealership

291002036

Unavailable

34

Hex. Screw M6 X 35

207063560

$2.22

35

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

36

Stainless Flat Washer M6

234061600

$0.33

37

Hex. Elastic Stop Nut M6

232561600

$1.15

38

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Upper Foot Peg RH

291002042

Unavailable

39

Upper Foot Peg LH

291002043

Unavailable

40

Foot Peg Foam RH

291002123

Unavailable

40

Foot Peg Foam LH

291002122

Unavailable

41

Black, Dart

293730006

$0.99

42

Elastic Rope 4.3 mm

293850084

Unavailable

42

Elastic Rope 4.3 mm

293850084

Unavailable

43

Upper Carpet RH

291002432

Unavailable

43

Upper Carpet LH

291002435

Unavailable

44

Lower Carpet RH

291002433

Unavailable

44

Lower Carpet LH

291002436

Unavailable

45

RH Foot Peg Holder

291002132

Unavailable

45

LH FOOT PEG HOLDER - Call your local BRP dealership

291002131

Unavailable

46

Bumper Plug, Black

291001040

$7.39

47

Plastite Torx Screw #10 X 7/8"

250000207

$2.00

48

Was 293200062 Seal

219704366

$76.49

49

Seat Latch

269001261

Unavailable

50

BUSHING - Call your local BRP dealership

204130095

Unavailable

51

SEAT LATCH SHAFT - Call your local BRP dealership

269001197

Unavailable

52

Circlip 7mm

293370010

$11.99

53

SEAT LATCH SPRING - Call your local BRP dealership

269001153

Unavailable

54

SEAT LATCH CAP - Call your local BRP dealership

269001164

Unavailable

55

Rubber Bumper

293830005

$8.09

56

Cable Clamp

293750029

Unavailable

57

HOOK - Call your local BRP dealership

293750030

Unavailable

58

Plastite Torx Screw #10 X 7/8"

250000207

$2.00
