Partiron

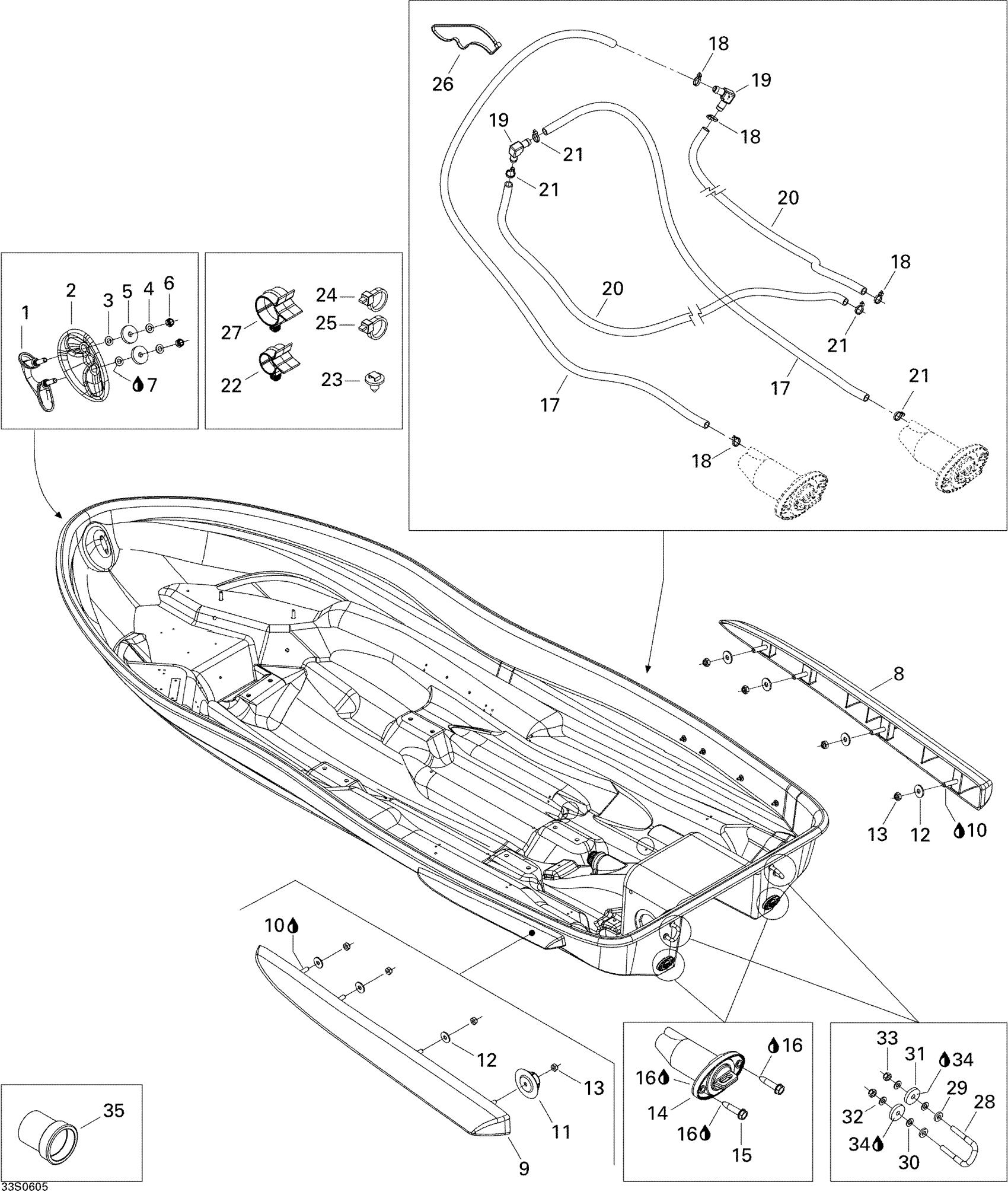

Sea-doo 3D 947 DI, 2006 Hull Diagram

#

Description
Price

1

Eye-Bow (Black) This part replaces 292000708.

292000452

$42.99

2

Black Shell

292001837

$20.99

3

Stainless, Flat Washer 8 mm

234081600

$0.55

4

Flat Washer 8 mm, Stainless

250200175

$3.06

5

Rubber Washer

293830037

$2.68

6

Hex. Elastic Nut M8

232581600

$1.48

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

RH SPONSON - Call your local BRP dealership

292000411

Unavailable

9

LH SPONSON - Call your local BRP dealership

292000412

Unavailable

10

Silicone Sealant 51388, 300 ml

296000309

$36.99

11

Insulator

292000992

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.77

13

Hex. Elastic Stop Nut M6

232561600

$1.15

14

Drain Plug

292001252

$36.99

15

Hex. Screw 10-14 X 7/8”

211000023

$3.59

16

Silicone Sealant 51388, 300 ml

296000309

$36.99

17

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

18

Tie Wrap 94 mm | 4X4

293750001

$1.03

19

ELBOW FITTING 90 - Call your local BRP dealership

293710057

Unavailable

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

Tie Wrap 94 mm | 4X4

293750001

$1.03

22

Cable Retainer

275500527

$2.68

23

Mount Dart

293730040

$1.04

24

Tie-Rap 180 mm

414115200

$0.11

25

Tie Wrap 368 mm

293750008

$1.04

26

Tie Wrap 368 mm

293750008

$1.04

27

Retainer

275500590

$9.69

28

U-Clamp

292000933

$59.49

29

Flat Washer M8.5 x 18

293050001

$3.07

30

Flat Washer 8 mm, Nylon

234081100

$1.39

31

Rubber Washer

293830037

$2.68

32

Flat Washer 8 mm, Stainless

250200175

$3.06

33

Hex. Elastic Nut M8

232581600

$1.48

34

Silicone Sealant 51388, 300 ml

296000309

$36.99

35

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable
