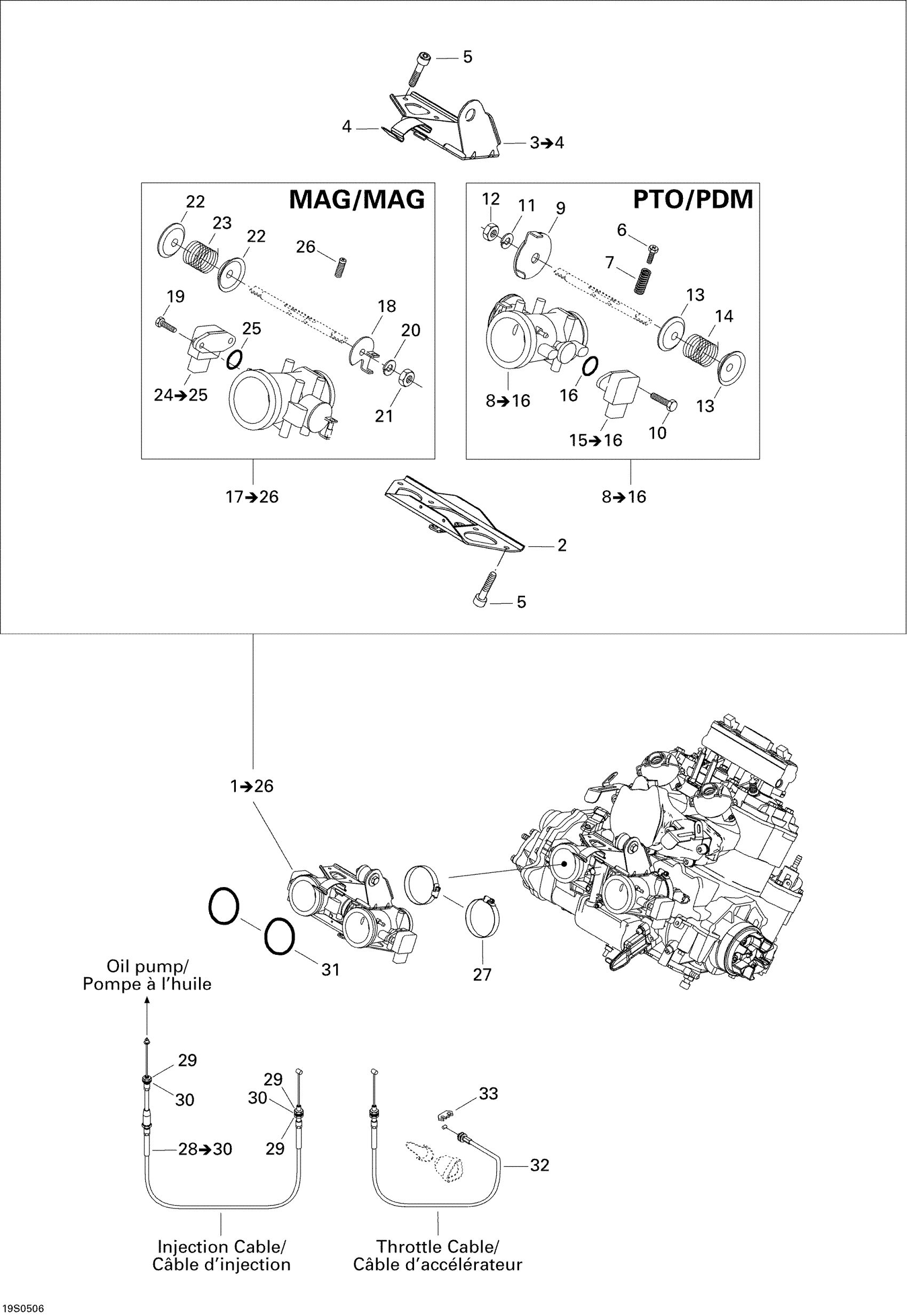

Sea-doo 3D 947 DI, 2006 Throttle Body Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

LOWER SUPPORT - Call your local BRP dealership

270600069

Unavailable

3

Support Ass'y | Includes 3 to 4

270600070

Unavailable

4

LATCH BRACKET - Call your local BRP dealership

270600073

Unavailable

5

Socket Head Screw M5 X 10

205051060

$1.58

6

ADJUSTER SCREW - Call your local BRP dealership

270600074

Unavailable

7

Spring

270600075

Unavailable

8

Primary Throttle Body Ass'y

270600099

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Position Sensor

420866120

$98.99

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Secondary Throttle Body Ass'y

270600100

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

IDLE SCREW - Call your local BRP dealership

270600084

Unavailable

27

Norma Clamp

293650079

$11.60

28

Injection Cable | Includes 28 to 30

270000546

$58.99

29

Hex. Nut M6

232160600

$1.15

30

Stainless Flat Washer M6

234061600

$0.33

31

O-Ring

293250065

Unavailable

32

THROTTLE CABLE - Call your local BRP dealership

277001423

Unavailable

33

TAB LOCK - Call your local BRP dealership

277000279

Unavailable
