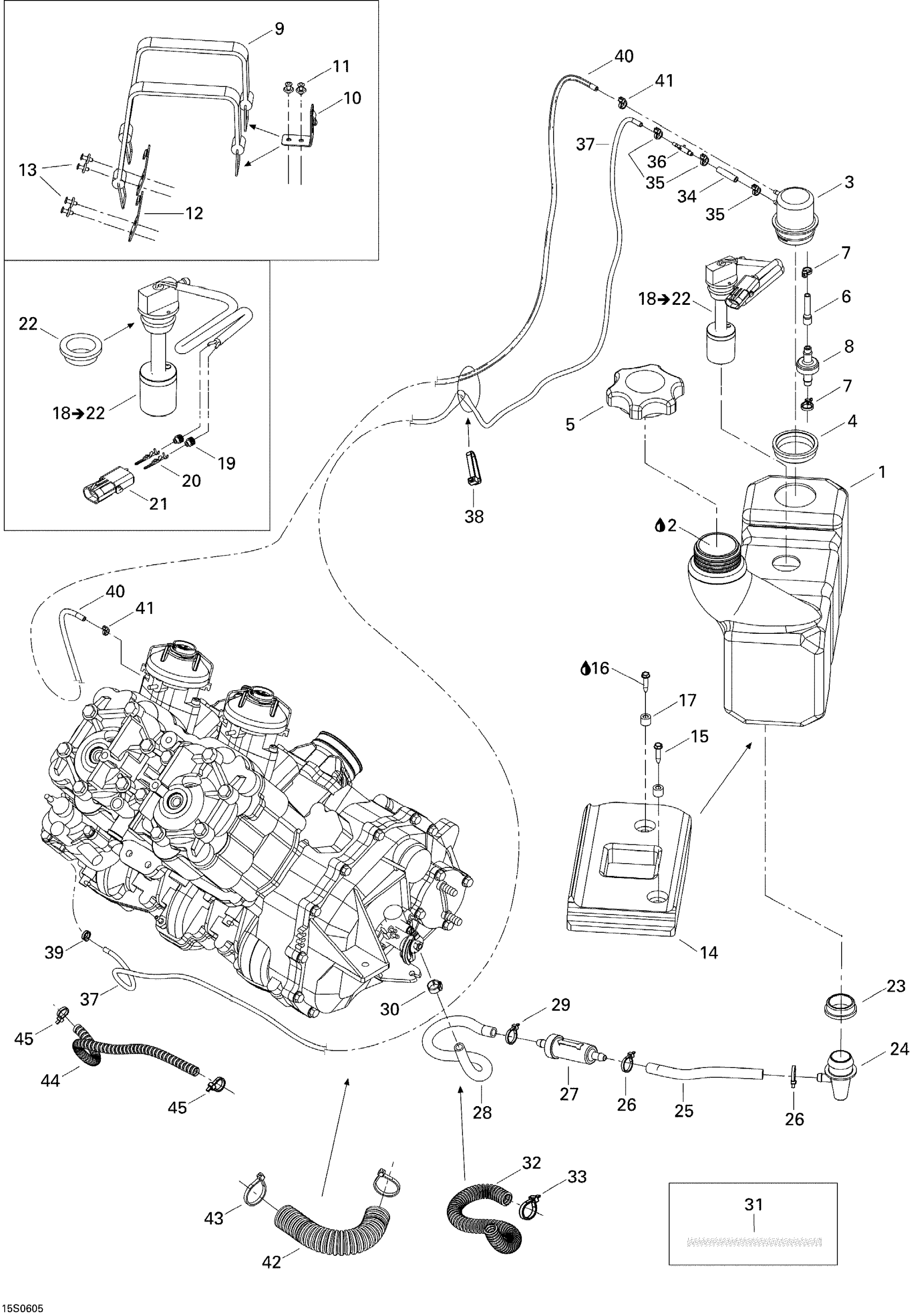

Sea-doo 3D 947 DI, 2006 Oil Injection System Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

275000255

Unavailable

2

OIL 2T 12X1 SYNTH - Call your local BRP dealership This part replaces 293600045.

293600132

Unavailable

2

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

2

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

3

SEPARETOR - Call your local BRP dealership

275000252

Unavailable

4

GROMMET - Call your local BRP dealership

293720072

Unavailable

5

Fuel Tank Cap

513033025

$24.49

6

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

7

Tie Wrap 94 mm | 4X4

293750001

$1.03

8

Check Valve

275500398

$10.99

9

Retainer Strap

293850097

$11.64

10

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

11

Avdel Rivet 3/16"

293150037

$0.56

12

Strap Clip

293850030

$11.12

13

Avdel Rivet 3/16"

293150037

$0.56

14

Foam Pad

292001072

Unavailable

15

Hex. Screw 10-14 X 7/8”

211000023

$3.59

16

Loctite 271, 10 ml

293800005

$26.99

17

Sleeve

292000528

Unavailable

18

OIL SENSOR - Call your local BRP dealership | Includes 18 to 22

278001515

Unavailable

19

Wire Seal

278000218

$4.39

20

Male Terminal | XT Models

278000222

$3.19

21

Female Housing, 2 Circuits

278000217

$9.59

22

Grommet

293720008

$14.75

23

Grommet

293720008

$14.75

24

Elbow Fitting 90°

293710070

Unavailable

25

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

26

Tie Wrap 94 mm | 4X4

293750001

$1.03

27

OIL FILTER - Call your local BRP dealership

275000262

Unavailable

28

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

29

Tie Wrap 94 mm | 4X4

293750001

$1.03

30

Oetiker Clamp

293650042

$3.09

31

Spring

270000684

Unavailable

32

Was 409901800 Tubing (13 mm)

219704400

$14.49

33

Tie Wrap 94 mm | 4X4

293750001

$1.03

34

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

35

Tie Wrap 94 mm | 4X4

293750001

$1.03

36

STRAIGHT FITTING - Call your local BRP dealership

275500444

Unavailable

37

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

38

Tie Wrap 94 mm | 4X4

293750001

$1.03

39

Clamp

293650105

$4.44

40

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

41

Tie Wrap 94 mm | 4X4

293750001

$1.03

42

Tubing 25 MM 1000MM Long

219704402

$15.99

43

Tie Wrap 142 mm

293750002

$1.25

44

Tubing 6 Mm 3000Mm Long

219704425

$13.75

45

Tie Wrap 94 mm | 4X4

293750001

$1.03
