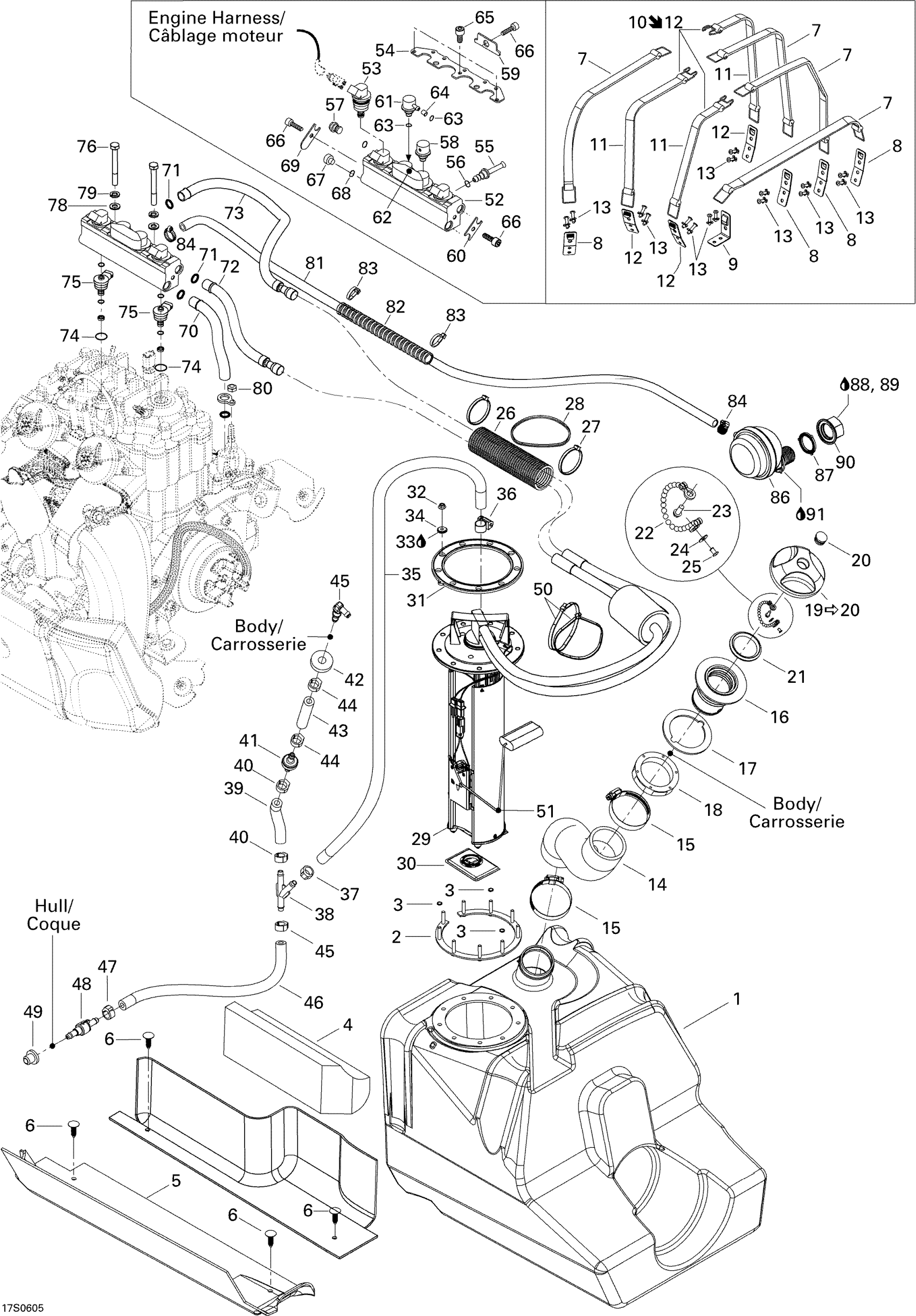

Sea-doo 3D 947 DI, 2006 02- Fuel System Diagram
#
1
FUEL TANK - Call your local BRP dealership | Includes 1 to 3
275500652
Unavailable
2
C-Ring, 9 Studs
275500679
$77.49
3
Push Nut
389804300
$0.53
4
FOAM PAD - Call your local BRP dealership
292001065
Unavailable
5
Rubber Pad
293830087
Unavailable
6
Black, Dart
293730006
$0.99
7
Fuel Tank Strap
293850093
$21.99
8
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
9
STRAP CLIP 90 - Call your local BRP dealership
293850076
Unavailable
10
FUEL TANK STRAP - Call your local BRP dealership | Includes 10 to 12
293850037
Unavailable
11
Fuel Tank Strap
293850094
$22.49
12
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
13
Avdel Rivet 3/16"
293150037
$0.56
14
Fuel Hose Filler
275500649
Unavailable
15
Tridon Clamp
293650023
$13.49
16
Filler Neck, Fuel
275500231
$14.75
17
Gasket
293250029
$14.82
18
Filler Neck Nut, Fuel
211100012
$14.22
19
Fuel Tank Cap, Black | Includes 26 to 27
275500430
$27.49
20
Black, Snap Cap
293000034
$9.39
21
GASKET - Call your local BRP dealership This part replaces 293250075.
293250211
Unavailable
22
Fuel Cap Chain
275500974
$19.99
23
Screw K40 X 10
241140060
$1.48
24
Flat Washer M3, Stainless
234032600
$0.55
25
Pop Rivet 1/8"
390407900
$1.49
26
Was 415084700 Protective Shield | Grand Touring 500.
219704413
Unavailable
27
Tie Wrap 368 mm
293750008
$1.04
28
Tie Wrap 368 mm
293750008
$1.04
29
FUEL MODULE ASS'Y - Call your local BRP dealership
275500655
Unavailable
30
Fuel Filter, Bosch
219700368
$39.99
31
Gasket
293250088
$14.99
32
Hex. Flange Nut M5
250100071
$2.11
33
Loctite 243, 10 ml
293800060
$21.49
34
Rubber Washer
291001956
Unavailable
35
Was 275500549 Hose 1/4"
219704357
$194.99
36
Tridon Gear Clamp
293650170
$1.99
37
Oetiker Gear Clamp
293650025
$3.09
38
Y-Fitting
293710059
$9.69
39
Was 275500549 Hose 1/4"
219704357
$194.99
40
Oetiker Gear Clamp
293650025
$3.09
41
Check Valve
275500398
$10.99
42
Grommet
709200285
$9.69
43
Was 275500549 Hose 1/4"
219704357
$194.99
44
Oetiker Gear Clamp
293650025
$3.09
45
Elbow Male Connector
414580600
$4.23
46
Was 275500549 Hose 1/4"
219704357
$194.99
47
Oetiker Gear Clamp
293650025
$3.09
48
Check Valve
275500505
$31.99
49
Grommet
293720029
$1.59
50
Tie Wrap 368 mm
293750008
$1.04
51
SENSOR LEVER - Call your local BRP dealership
270600051
Unavailable
52
FUEL DISTRIBUTOR ASS'Y - Call your local BRP dealership | Includes 52 to 73
275500656
Unavailable
53
Fuel Injector
275500460
$329.99
54
RETAINER PLATE - Call your local BRP dealership
275500543
Unavailable
55
AIR ADAPTER - Call your local BRP dealership
275500538
Unavailable
56
O-RING - Call your local BRP dealership
293300069
Unavailable
57
FUEL PLUG - Call your local BRP dealership
275500595
Unavailable
58
Air Regulator
275500463
Unavailable
59
RETAINER PLATE - Call your local BRP dealership
275500456
Unavailable
60
RETAINER PLATE - Call your local BRP dealership
275500596
Unavailable
61
FUEL REGULATOR - Call your local BRP dealership
275500464
Unavailable
62
Cover
275500449
Unavailable
63
O-Ring
293300072
Unavailable
64
SPACER - Call your local BRP dealership
275500465
Unavailable
65
SOCKET HEAD SCREW M5 X 12 - Call your local BRP dealership
205051260
Unavailable
66
Socket Head Screw M6 X 12
205061260
$1.58
67
AIR PLUG - Call your local BRP dealership
275500597
Unavailable
68
O-Ring
275500598
Unavailable
69
RETAINER PLATE - Call your local BRP dealership
275500455
Unavailable
70
Pressure Hose | INCLUDES 72 TO 73
270600022
Unavailable
71
O-Ring
293300070
Unavailable
72
FUEL HOSE ASS'Y - Call your local BRP dealership
275500657
Unavailable
73
FUEL HOSE ASS'Y - Call your local BRP dealership
275500658
Unavailable
74
O-Ring
293300083
Unavailable
75
Air Injector | Includes 45 to 48
275500633
$329.99
76
HEX. SCREW M8 X 70 - Call your local BRP dealership
207087060
Unavailable
77
Loctite 243, 10 ml
293800060
$21.49
78
Stainless, Flat Washer 8 mm
234081600
$0.55
79
Lock Washer 8 mm, Stainless
234181601
$0.55
80
Hex. Elastic Stop Nut M6
232561600
$1.15
81
BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership
276000084
Unavailable
82
Tubing 16 Mm 1000Mm Long
219704408
$7.49
83
Tie Wrap 142 mm
293750002
$1.25
84
Tridon Gear Clamp
293650170
$1.99
85
Not Available As Spare Parts
XXX
Unavailable
86
Noise Reducer
270000569
Unavailable
87
SEAL WASHER - Call your local BRP dealership
293830027
Unavailable
88
Was 293800041 Loctite Primer 7649
219704458
$39.99
89
Loctite 243, 10 ml
293800060
$21.49
90
SPECIAL NUT M27 - Call your local BRP dealership
211100020
Unavailable
91
Silicone Sealant 51388, 300 ml
296000309
$36.99
