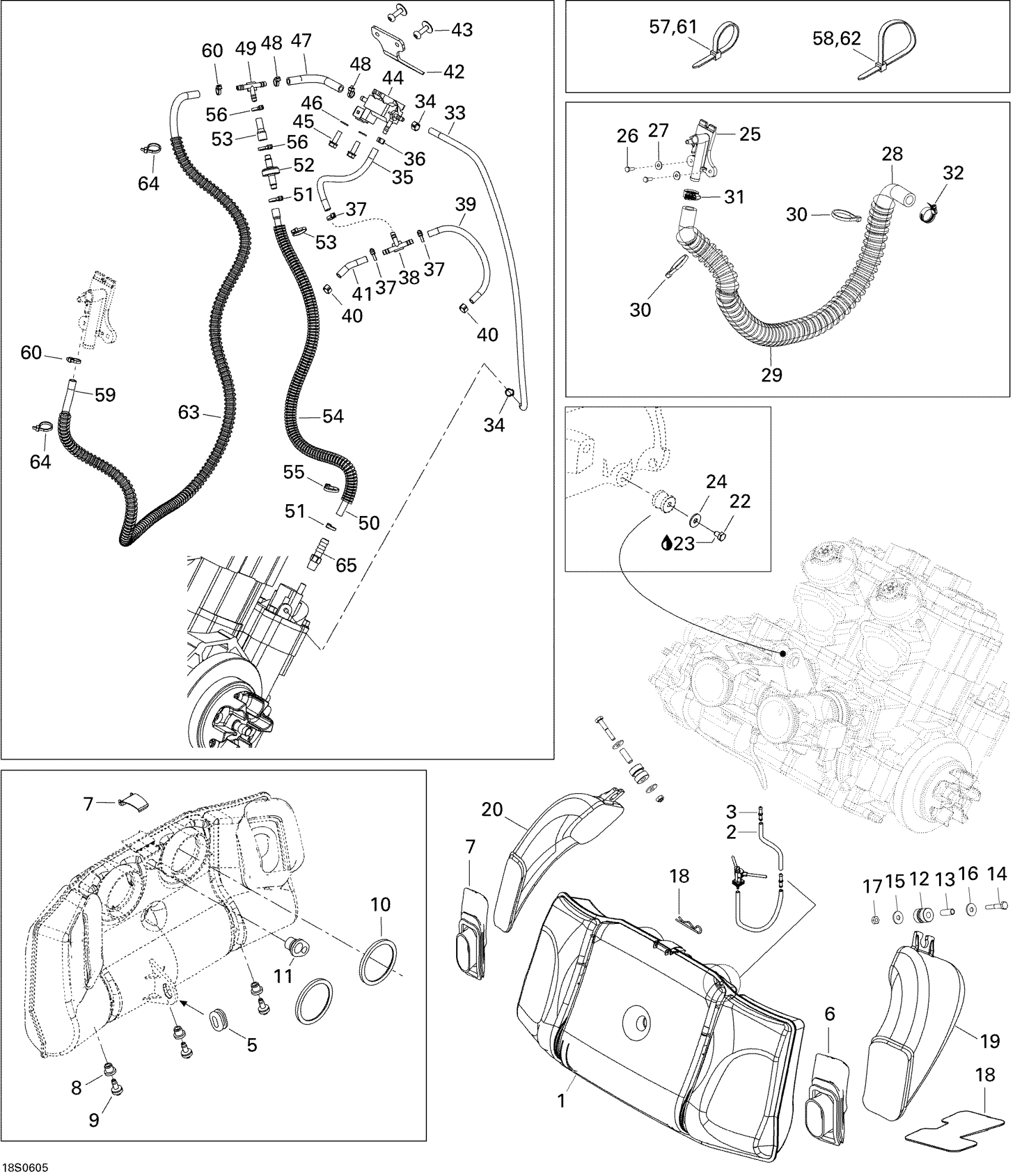

Sea-doo 3D 947 DI, 2006 Air Intake Manifold Diagram

#

Description
Price

1

Air Silencer | Includes 18 to 21

273000209

Unavailable

2

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

3

CONNECTOR - Call your local BRP dealership

293710107

$1.09

4

SUPPORT PLATE - Call your local BRP dealership

273000204

Unavailable

5

Cable Grommet

293720052

Unavailable

6

INTAKE ADAPTOR, PTO - Call your local BRP dealership

273000163

Unavailable

7

INTAKE ADAPTOR, MAG - Call your local BRP dealership

273000164

Unavailable

8

GROMMET - Call your local BRP dealership

293720064

Unavailable

9

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

10

Gasket

293250122

$67.99

11

FEMALE ADAPTOR - Call your local BRP dealership

270600024

Unavailable

12

UPPER INSULATOR - Call your local BRP dealership

278001260

Unavailable

13

SPACER - Call your local BRP dealership

272000074

Unavailable

14

Hex. Screw M6 X 35

207063560

$2.22

15

Flat Washer M6, Stainless

234062600

$0.77

16

Flat Washer M6, Stainless

234062600

$0.77

17

Hex. Elastic Stop Nut M6

232561600

$1.15

18

PROTECTOR PAD - Call your local BRP dealership

273000165

Unavailable

19

HIGH AIR DUCT, PTO - Call your local BRP dealership

273000151

Unavailable

20

High Air Duct, Mag

273000150

Unavailable

21

HAIR PIN - Call your local BRP dealership

250400015

Unavailable

22

HEX. SCREW M8 X 12 - Call your local BRP dealership

207181260

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

Flat Washer 8 mm, Stainless

234082600

$2.43

25

AIR SILENCER ADAPTOR - Call your local BRP dealership

270600023

Unavailable

26

Hex. Screw M4 X 12, Scotch Grip

207341260

Unavailable

27

Flat Washer 4 mm, Stainless

234042600

$1.15

28

Intake Hose

270600106

Unavailable

29

Tubing 25 MM 1000MM Long

219704402

$15.99

30

Tie Wrap 142 mm

293750002

$1.25

31

Tridon Gear Clamp

293650172

$3.09

32

Tridon Gear Clamp

293650173

$3.09

33

HOSE 4.3 MM - Call your local BRP dealership

270000471

Unavailable

34

Oetiker Clamp

293650100

$3.38

35

HOSE 4.3 MM - Call your local BRP dealership

270000471

Unavailable

36

Oetiker Clamp

293650100

$3.38

37

Tie Wrap 94 mm | 4X4

293750001

$1.03

38

T-Fitting

293710068

$8.29

39

HOSE 4.3 MM - Call your local BRP dealership

270000471

Unavailable

40

Oetiker Clamp

293650100

$3.38

41

HOSE 4.3 MM - Call your local BRP dealership

270000471

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Pop Rivet 3/16"

293150123

$4.29

44

SOLENOID VALVE - Call your local BRP dealership

270600044

Unavailable

45

Hex. Screw M5 X 16, Scotch Grip

207351660

$0.83

46

Flat Washer M5, Stainless

234051600

$0.77

47

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

48

Tie Wrap 94 mm | 4X4

293750001

$1.03

49

T-Fitting

293710068

$8.29

50

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

51

Tie Wrap 94 mm | 4X4

293750001

$1.03

52

Check Valve

275500398

$10.99

53

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

54

Tubing 10 MM 1000MM Long

219704407

$2.79

55

Tie Wrap 94 mm | 4X4

293750001

$1.03

56

Tie Wrap 94 mm | 4X4

293750001

$1.03

57

Tie Wrap 142 mm

293750002

$1.25

58

Tie-Rap 180 mm

414115200

$0.11

59

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

60

Tie Wrap 94 mm | 4X4

293750001

$1.03

61

Tie Wrap 142 mm

293750002

$1.25

62

Tie-Rap 180 mm

414115200

$0.11

63

Tubing 10 MM 1000MM Long

219704407

$2.79

64

Tie Wrap 94 mm | 4X4

293750001

$1.03

65

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable
