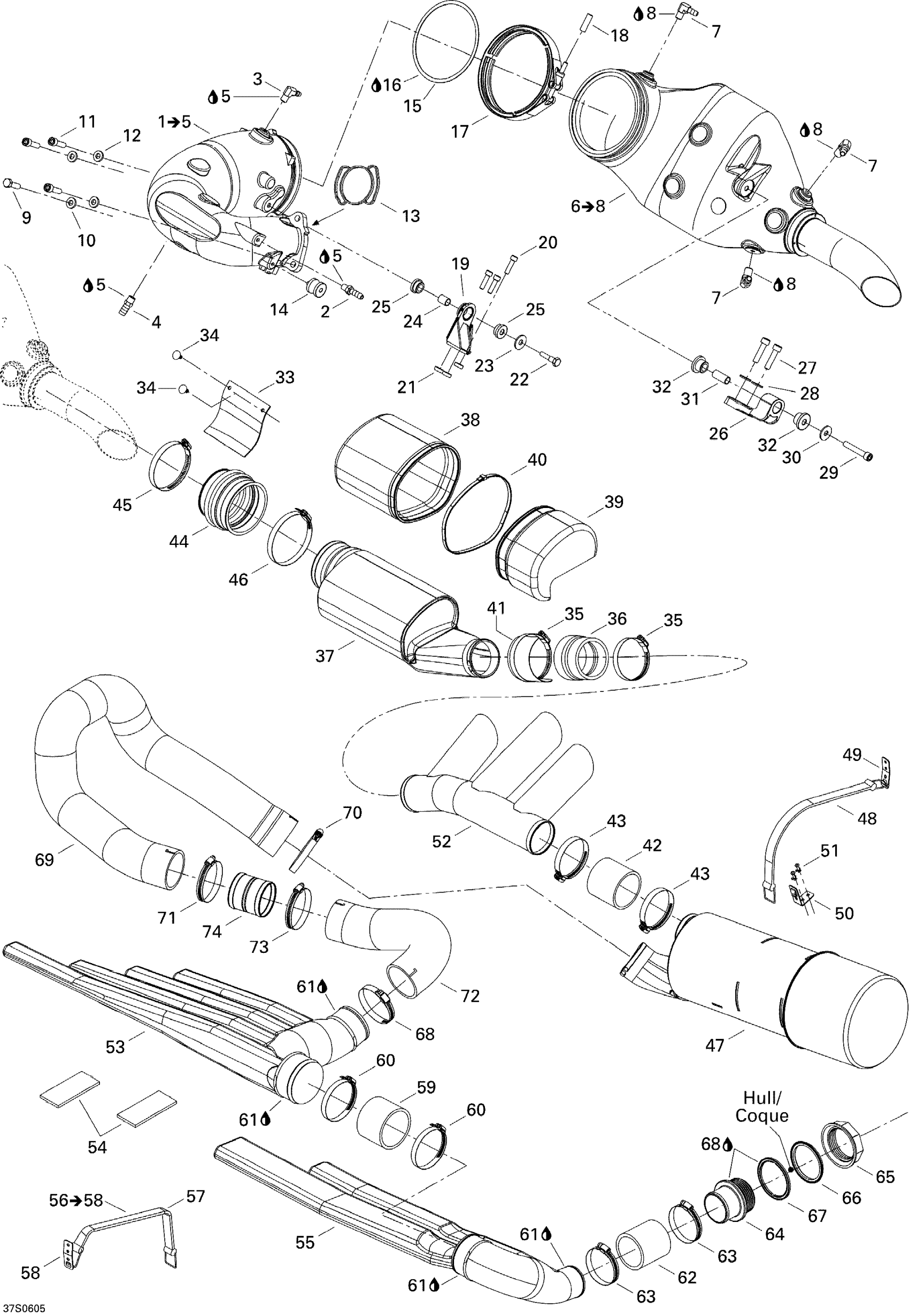

Sea-doo 3D 947 DI, 2006 Exhaust System Diagram

#

Description
Price

1

HEAD PIPE - Call your local BRP dealership | Includes 1 to 5

274001333

Unavailable

2

Male Connector

293710037

$10.49

3

Elbow Fitting

293700016

Unavailable

4

Male Connector | With Catalyst

293710021

$14.23

5

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

6

Cone Pipe | Includes 6 to 8

274001334

Unavailable

7

Elbow Fitting

293700016

Unavailable

8

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

9

HEX. SCREW M10 X 35 - Call your local BRP dealership

245103570

Unavailable

10

Flat Washer

211200051

$1.68

11

SOCKET SCREW M10 X 35 - Call your local BRP dealership

244003570

Unavailable

12

Flat Washer

211200051

$1.68

13

EXHAUST GASKET - Call your local BRP dealership

420931990

Unavailable

14

Rubber Isolator

707000949

$11.49

15

SEALING RING - Call your local BRP dealership

274000511

Unavailable

16

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

17

EXHAUST CLAMP - Call your local BRP dealership

274000510

Unavailable

18

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

19

Pipe Support, Black

274001109

Unavailable

20

SOCKET HEAD SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

244083060

Unavailable

21

FLAT WASHER M8.4 - Call your local BRP dealership

250200012

Unavailable

22

HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership

245004060

Unavailable

23

Flat Washer 10 mm, Stainless

234002600

$2.22

24

BUSHING - Call your local BRP dealership

274000861

Unavailable

25

RUBBER BUSHING - Call your local BRP dealership

293830065

Unavailable

26

SUPPORT - Call your local BRP dealership

274001328

Unavailable

27

SOCKET SCREW M8 X 40 - Call your local BRP dealership

244084070

Unavailable

28

Flat Washer 8 mm, Stainless

234082600

$2.43

29

Socket Screw M10 X 60

244006060

$3.59

30

Flat Washer 10 mm, Stainless

234002600

$2.22

31

BUSHING - Call your local BRP dealership

274001321

Unavailable

32

Rubber Bushing

293830114

Unavailable

33

Rubber Pad

293830109

Unavailable

34

Black, Dart

293730011

$0.99

35

TRIDON GEAR CLAMP - Call your local BRP dealership

293650006

Unavailable

36

EXHAUST HOSE - Call your local BRP dealership

274001234

Unavailable

37

Water Separator

274001219

Unavailable

38

FRONT MUFFLER COVER - Call your local BRP dealership

274001276

Unavailable

39

REAR MUFFLER COVER - Call your local BRP dealership

274001322

Unavailable

40

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

41

Heat Shield

274001235

Unavailable

42

Exhaust Hose

274001326

Unavailable

43

TRIDON GEAR CLAMP - Call your local BRP dealership

293650006

Unavailable

44

EXHAUST BELLOW - Call your local BRP dealership

274001314

Unavailable

45

Tridon Clamp

204000079

$9.99

46

TRIDON GEAR CLAMP - Call your local BRP dealership

293650169

Unavailable

47

Muffler Ass'y

274001231

Unavailable

48

Fuel Tank Strap

293850093

$21.99

49

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

50

STRAP CLIP - Call your local BRP dealership

293850075

Unavailable

51

Avdel Rivet 3/16"

293150037

$0.56

52

Resonator

274001230

Unavailable

53

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

54

RUBBER PAD - Call your local BRP dealership

274000752

Unavailable

55

RESONATOR EXTENSION - Call your local BRP dealership

274000701

Unavailable

56

Strap Ass`Y | Includes 56 to 58

293850082

Unavailable

57

Fuel Tank Strap

293850036

$18.99

58

Strap Clip

293850030

$11.12

59

EXHAUST HOSE - Call your local BRP dealership

274000726

Unavailable

60

Tridon Clamp

204000079

$9.99

61

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

62

Exhaust Hose

274001304

Unavailable

63

Tridon Clamp

293650064

$8.29

64

Exhaust Hose, Outlet

274001391

$29.49

65

NUT 72 MM - Call your local BRP dealership

274000835

Unavailable

66

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

67

GASKET - Call your local BRP dealership

293250041

Unavailable

68

Silicone Sealant 51388, 300 ml

296000309

$36.99

69

Exhaust Hose

274001311

Unavailable

70

TRIDON GEAR CLAMP - Call your local BRP dealership

293650006

Unavailable

71

Tridon Clamp

293650179

$11.49

72

EXHAUST HOSE - Call your local BRP dealership

274001312

Unavailable

73

Tridon Clamp

293650179

$11.49

74

HOSE ADAPTER - Call your local BRP dealership

274001313

Unavailable
