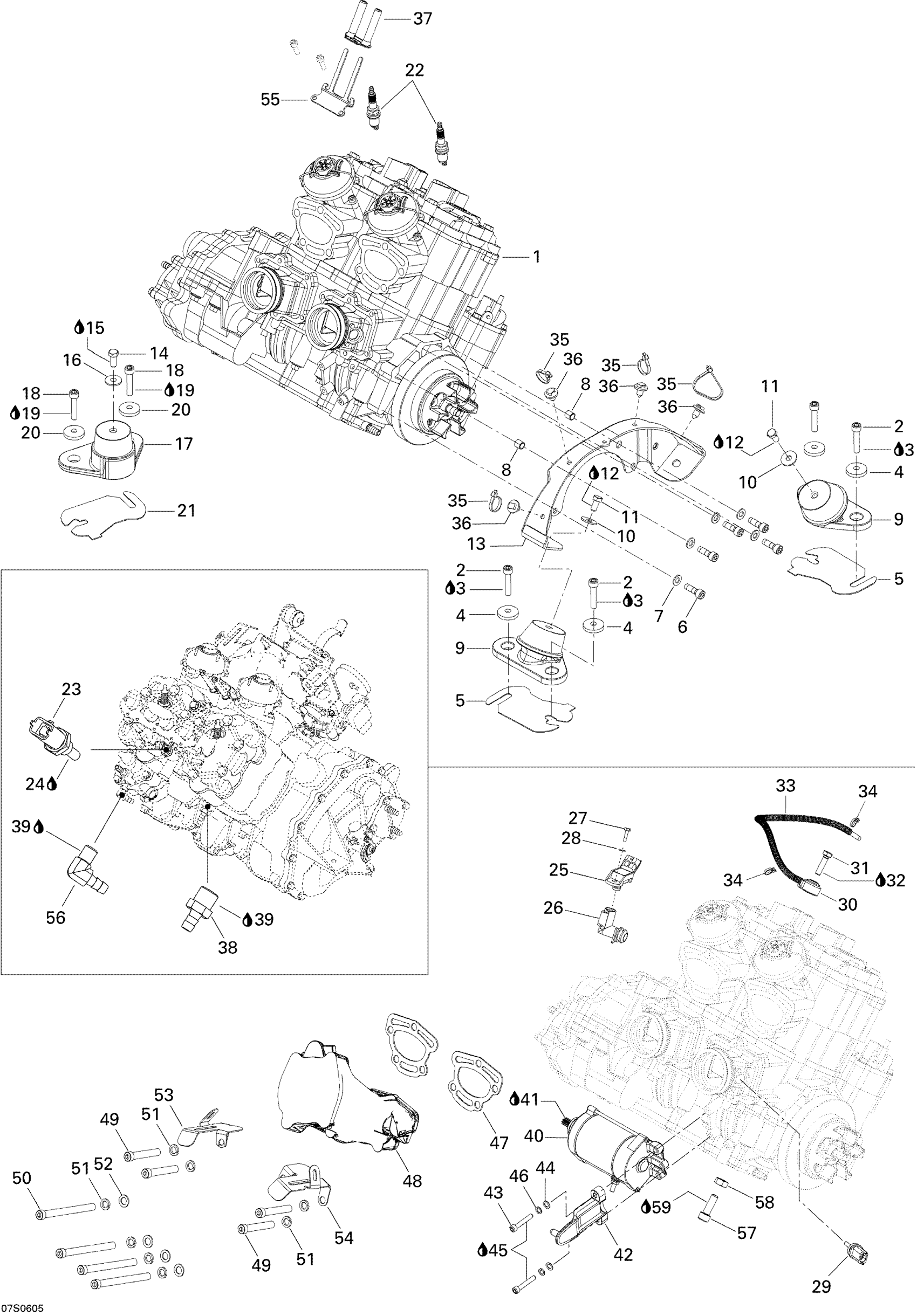

Sea-doo 3D 947 DI, 2006 Engine Diagram

#

Description
Price

1

Engine 947 Di

270000662

Unavailable

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Loctite 243, 10 ml

293800060

$21.49

4

Cone Washer

250200018

$5.61

5

Shim 1.3 mm

270000762

$12.99

6

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

7

Stainless, Flat Washer 8 mm

234081600

$0.55

8

BUSHING - Call your local BRP dealership

270000453

Unavailable

9

Rubber Mount

270000666

Unavailable

10

Flat Washer 8 mm, Stainless

234082600

$2.43

11

Hex. Screw M8 X 16

207181660

Unavailable

12

Loctite 243, 10 ml

293800060

$21.49

13

Engine Support

270000656

Unavailable

14

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

15

Loctite 243, 10 ml

293800060

$21.49

16

Flat Washer 8 mm, Stainless

234082600

$2.43

17

RUBBER MOUNT - Call your local BRP dealership

270000663

Unavailable

18

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

Cone Washer

250200018

$5.61

21

Shim 1.3 mm

270000762

$12.99

22

Spark Plug NGK Zfr4f-11

278001650

$6.35

23

Temperature Sensor

278002895

$39.99

24

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

25

Pressure Sensor

270600040

$199.99

26

VALVE ADAPTOR - Call your local BRP dealership

270600019

Unavailable

27

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

28

Flat Washer | XT

211200035

$0.55

29

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

30

Noise Sensor

270000484

$82.99

31

Hex. Screw M8 X 30

207183060

$1.58

32

Loctite 243, 10 ml

293800060

$21.49

33

Tubing 6 Mm 3000Mm Long

219704425

$13.75

34

Tie Wrap 94 mm | 4X4

293750001

$1.03

35

Tie-Rap 180 mm

414115200

$0.11

36

Mount Dart

293730040

$1.04

37

INSULATOR - Call your local BRP dealership

278001512

Unavailable

38

MALE CONNECTOR - Call your local BRP dealership

293710066

Unavailable

39

Was 293800013 Loctite 56765

219704454

$65.99

40

Starter Ass'y, Black

278001937

$265.99

41

Synthetic Grease, 400 G

293550010

Unavailable

42

AIR SILENCER SUPPORT - Call your local BRP dealership

273000227

Unavailable

43

Socket Head Screw M6 X 35

205063560

$2.22

44

Stainless Flat Washer M6

234061600

$0.33

45

Loctite 243, 10 ml

293800060

$21.49

46

Lock Washer Helical M6

234161601

$1.15

47

EXHAUST MANIFOLD GASKET - Call your local BRP dealership

420931653

Unavailable

48

Exhaust Manifold

420979607

$399.99

49

SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership

205006060

Unavailable

50

SOCKET HEAD SCREW M10 X 110 - Call your local BRP dealership

420941483

Unavailable

51

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

52

Flat Washer 10 mm, Stainless

234000600

$1.46

53

DUCT SUPPORT, MAG - Call your local BRP dealership

273000170

Unavailable

54

Duct Support, PTO

273000169

Unavailable

55

GROUND PLATE - Call your local BRP dealership

278001662

Unavailable

56

Elbow Fitting

293700016

Unavailable

57

Socket Screw M10 X 30

205003060

Unavailable

58

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

59

Loctite 271, 10 ml

293800005

$26.99
