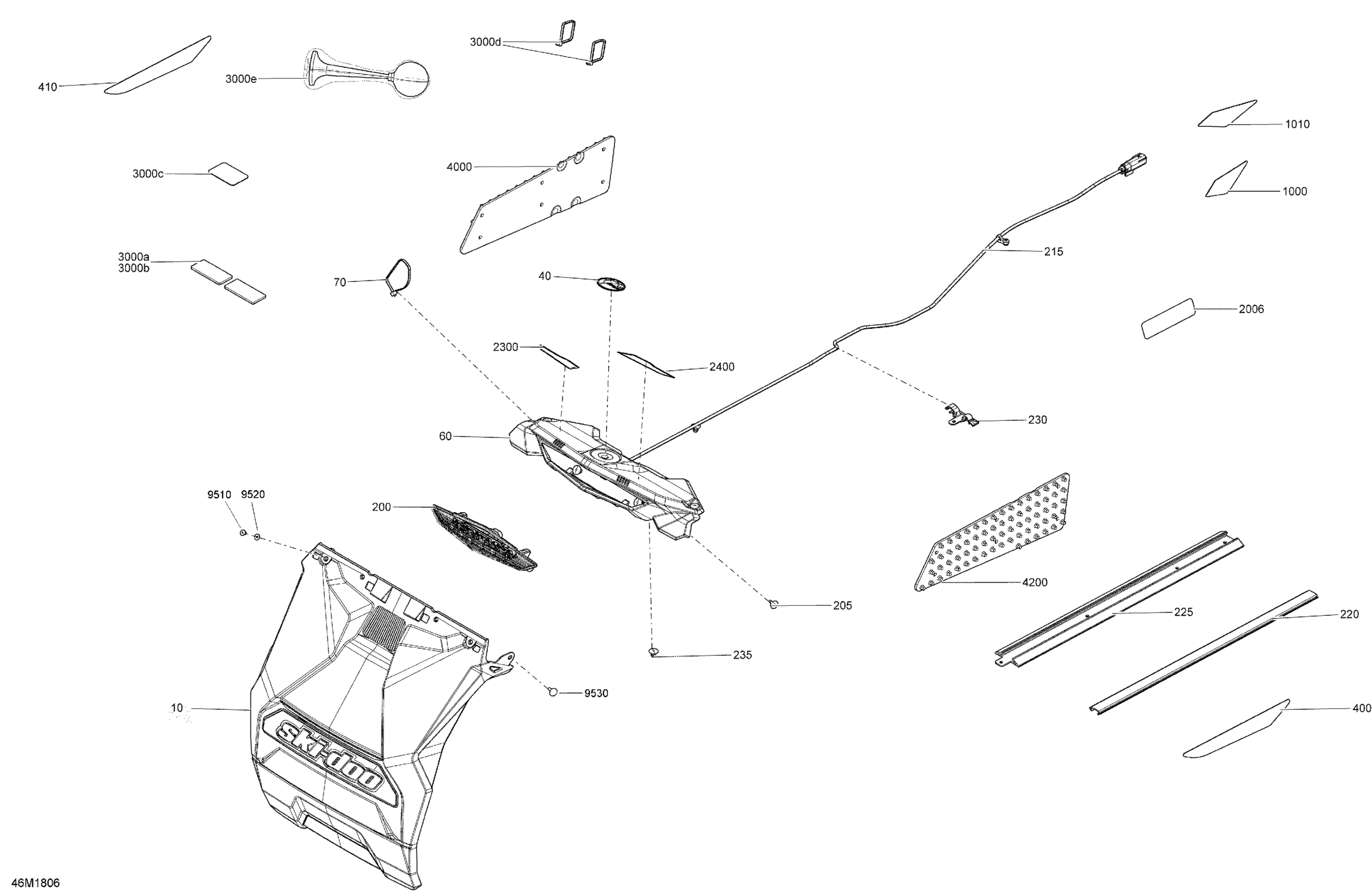

Ski-Doo 3A- SUMMIT 850 E-TEC, 2018 Utilities Summit - 850 E-TEC Diagram

Description

Price

Snow Gard

520001481

$94.75

BRP Logo 48mm

516008738

$12.87

Light Fairing

520001487

$18.63

Tie Wrap 368 mm

293750008

$0.85

200

Rear Light

520001143

$74.60

205

Screw M4 X 16

250000725

$2.87

215

Rear Light Harness

515178266

$23.85

215

Rear Light Harness

515178267

$24.60

215

Rear Light Harness

515178268

$24.60

215

Wiring Harness | Model with 175" rear suspension

515178269

$24.60

218

Pop Rivet 3/16"

390402200

$0.26

220

Extruded Trim

520002921

$20.12

225

Wire Protector

520001703

$17.88

230

Cap

520001722

$8.64

235

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

400

Red, RH Rear Reflector

520001900

$16.39

400

Rear Reflector RH | Europe

520001698

$24.60

410

Red, LH Rear Reflector

520001901

$16.39

410

Rear Reflector LH | Europe

520001699

$24.60

1000

RH Front Reflector

520002343

$7.72

1010

LH Front Reflector

520002344

$9.67

1400

Tool Kit | Includes 1400 to 1400c

520001814

$28.99

1400a

Rope Starter

529017500

$1.19

2006

Europe Decal

516008823

$9.64

2300

LH Safety Label

516008594

Unavailable

2400

RH English Warning Decal

516006892

Unavailable

3000a

Amber, Reflector

520000271

$18.63

3000b

White, Reflector

415037900

$18.63

3000c

Reflector Support | Included 3000d to 3000e

520001787

$187.28

3000d

Horn

549011291

$34.30

3000e

Pop Rivet 3/16"

293150103

$0.52
