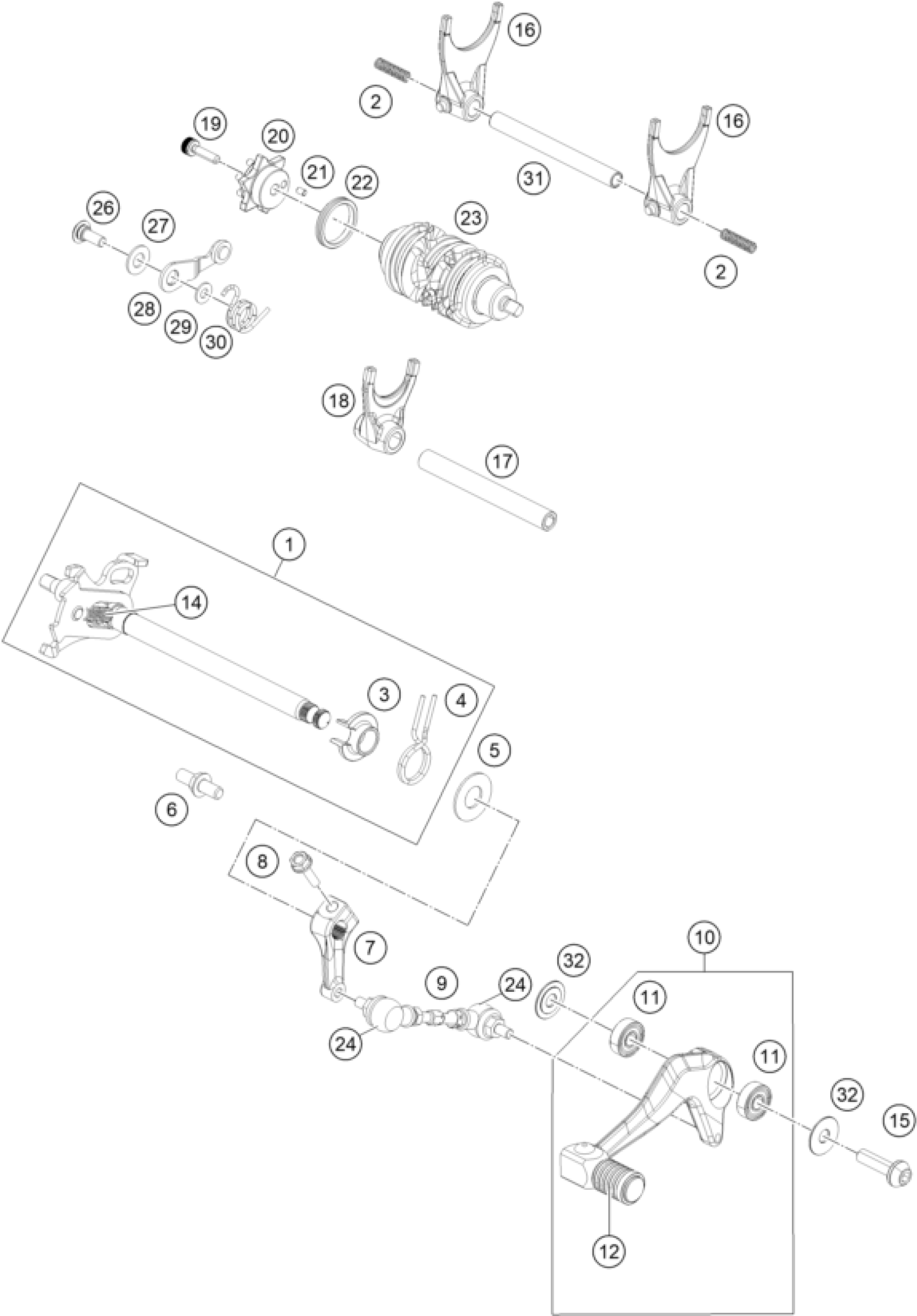

KTM 390 SMC R 2025 SHIFTING MECHANISM Diagram

#

Description
Price

1

assembly lever gear shift

96334005033

$26.08

2

SPRING SHIFT RAIL

90234039000

$1.49

3

SPRING BUSHING

90134022000

$4.11

4

spring torsion

96334014000

$1.49

5

STOP DISK 14X30X1,5

90134050000

$2.05

6

SPRING GUIDE

90134016000

$2.05

7

ARM CHANGE

A60134030000

Unavailable

8

BOLT FLANGED M6X1

J900000602200

$1.49

9

ROD ASSEMBLY TIE

A60334036033

Unavailable

10

LEVER ASSEMBLY CHANGE

A60334031033

Unavailable

11

BALL BEARING 608

J625060800

$7.94

12

Pedal rubber

95834035000

$1.49

14

TENSION SPRING

90134009000

$1.49

15

BOLT SHIFT LEVER

90534034300

$3.08

16

fork gear shift output

96334002000

$14.20

17

SHIFT RAIL

90234019000

$5.88

18

fork gear shift input

96334001000

$13.92

19

SOCKET HEAD SCREW M6X20

90130001001

$1.49

20

Detent

94334015000

$12.80

21

Parallel pin

90134013000

$1.49

22

SPACER

90134012002

$3.08

23

drum gear shift

96334012000

$19.16

24

COVER JOINT BALL

28134038010

Unavailable

26

SCREW LOCKING LEVER

90134025000

$2.05

27

WASHER LOCKING LEVER

90134030000

$3.08

28

LOCKING LEVER CPL.

90134024033

$4.11

29

Washer, 6x14x1.2

J125061416

$1.49

30

spring torsion

96334023000

$1.49

31

Gear shift rail

93834020000

$5.23

32

WASHER SHIFTING LEVER

90534031020

$2.05
