Description

Price

1

FRONT WHEEL ASSLY SMC R 390

A61709001044C1

Unavailable

2

seal oil

J780003955000

$4.11

3

INTERNAL CIRCLIP

J710005520000

Unavailable

4

BEARING 30X55X13

J410003001300

$19.63

5

SPACER

94509011000

$20.47

6

SUPPORT SPACER

A61709013000

Unavailable

9

DISC BRAKE DIA 320

A61709060000

Unavailable

10

RIM WHEEL MT 3.00X17

A61709070000

Unavailable

11

SPECIAL SCREW M8X25 SELF LOCK.

90110062000

$3.08

12

BOLT FLANGED M24X1.5

94509082000

$11.96

13

COLLAR

94509012000

$19.91

14

AXLE FRONT MY17

93009081100

$37.67

15

SPOKE

A60209971000

Unavailable

16

Spoke nipple M5x0.8

28510072100

$2.05

17

Tube protector front

28109073000

Unavailable

18

BOLT SOCKET M5X0.8

J900000500800

$1.49

19

Sensor wheel, front

94542020000

$20.19

99

HUB ASSEMBLY FRONT

A61709010000C1

Unavailable

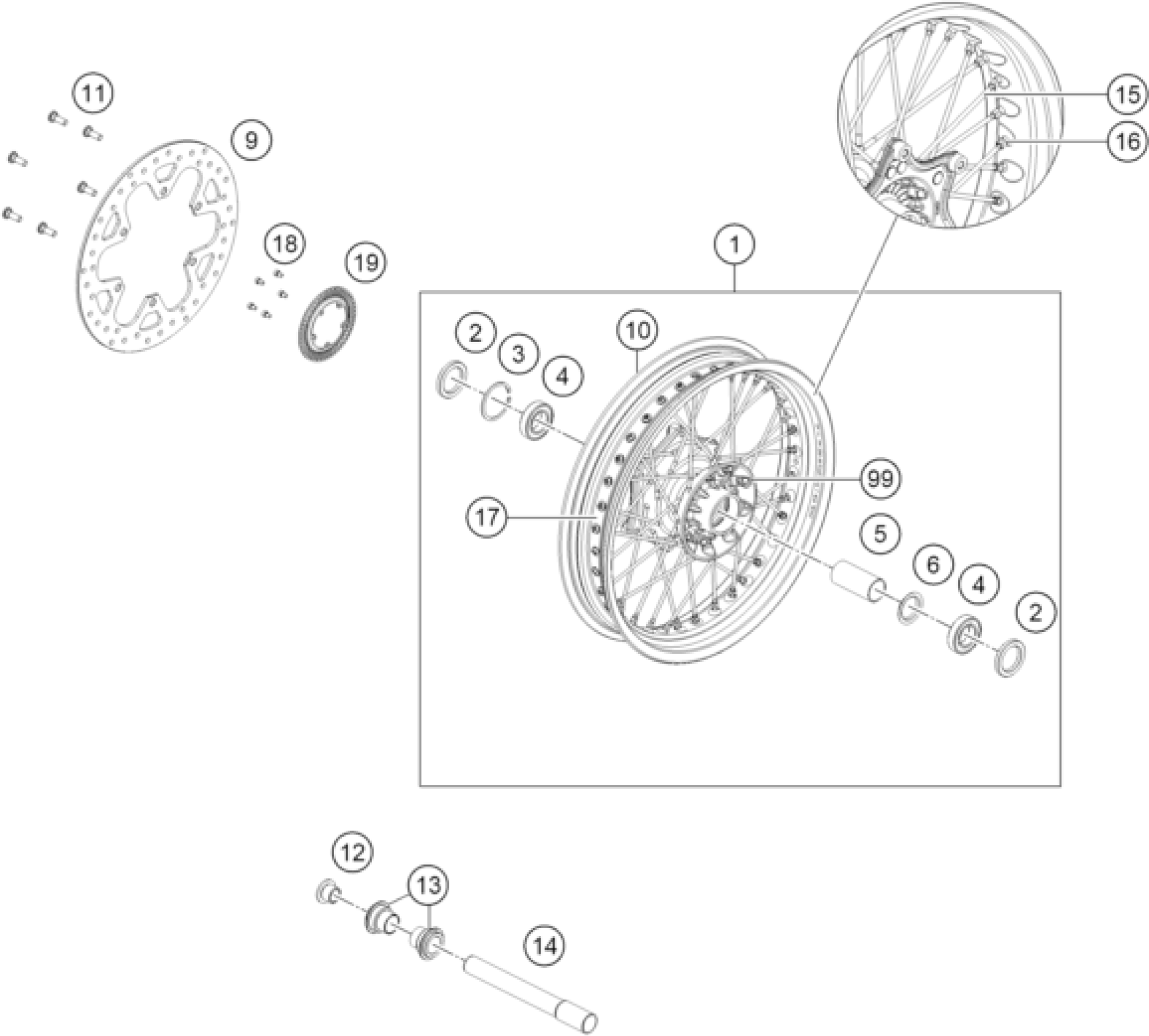

KTM 390 SMC R 2025 FRONT WHEEL Diagram

FRONT WHEEL ASSLY SMC R 390

seal oil

INTERNAL CIRCLIP

BEARING 30X55X13

SPACER

SUPPORT SPACER

DISC BRAKE DIA 320

RIM WHEEL MT 3.00X17

SPECIAL SCREW M8X25 SELF LOCK.

BOLT FLANGED M24X1.5

COLLAR

AXLE FRONT MY17

SPOKE

Spoke nipple M5x0.8

Tube protector front

BOLT SOCKET M5X0.8

Sensor wheel, front

HUB ASSEMBLY FRONT
