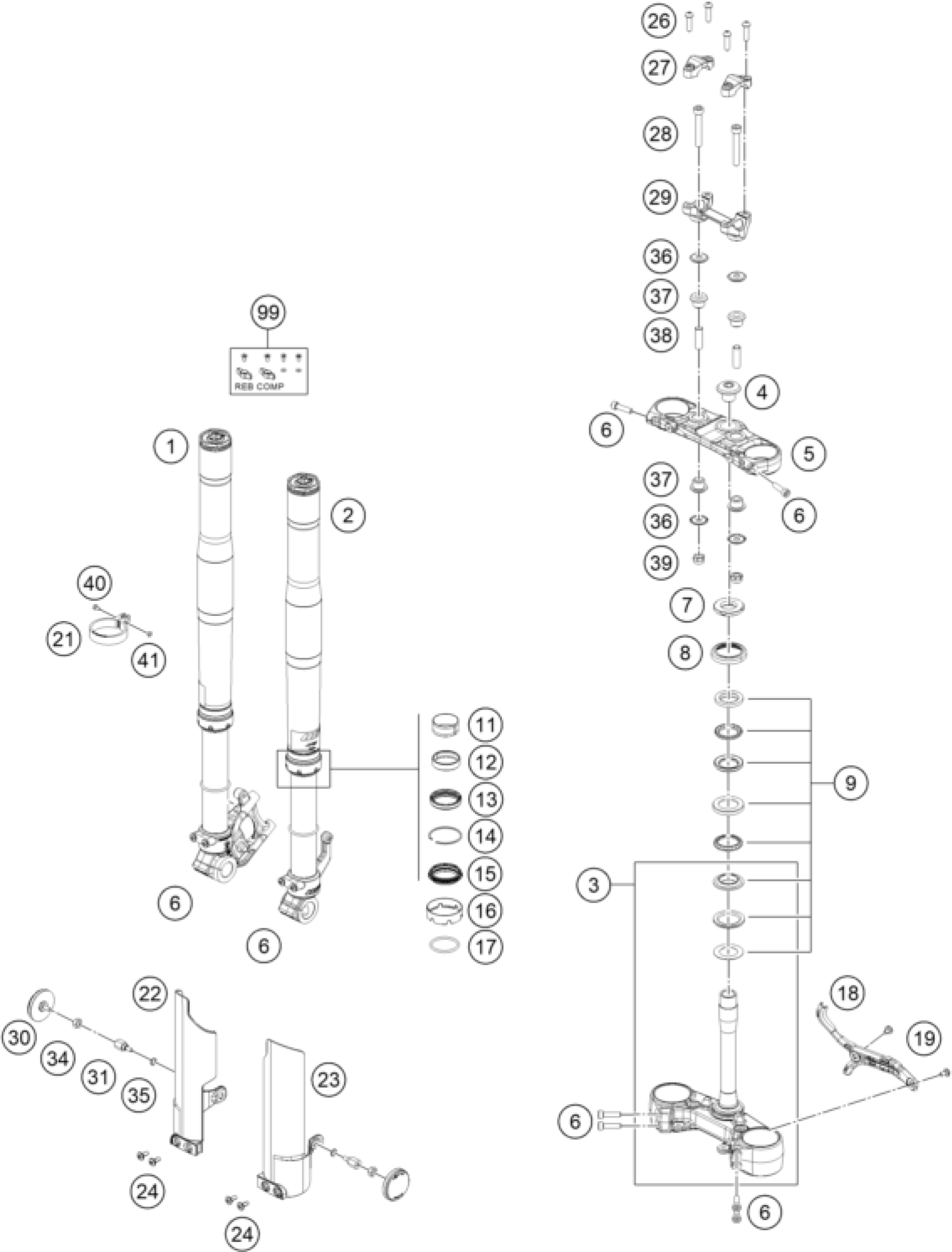

KTM 390 SMC R 2025 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

4

screw socket M22x1.5

J900002202000

Unavailable

7

Adjusting ring steering head

90101036100

$5.23

8

protection cap

90101086000

$3.08

9

STEERING HEAD BEARING-KIT

90101080044

$33.65

11

GUIDE BUSH UPPER

43578016

$16.35

12

GUIDE BUSH LOWER

43578014

$16.45

13

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

14

CIRCLIP

43578044

$4.11

15

Dirt scarper SKF 43mm red

43570723

Unavailable

16

Fork protection ring d43

43578206

$2.05

17

O-ring 40x2,5 VMQ70 red ISO 36

43578219

$4.11

18

GUIDE CABLE

A60113025000

Unavailable

19

Screw M6X1X9

93008020060

$2.05

22

fork protector rh

A60101093000EBC

Unavailable

23

fork protector lh

A60101092000EBC

Unavailable

26

Bolt socket-M8X1.25Xl 29Xblack

J912080293

$2.05

99

Adjuster kit screw cap

RP10021

Unavailable

2

LEG ASSEMBLY LH

A602L121Y201102

Unavailable

1

LEG ASSEMBLY RH

A602R121Y201102

Unavailable

5

BRACKET UPPER

A60101134028C1

Unavailable

3

ADV MY25 BKT ASSEMBLY UNDER (J

A60101132028C1

Unavailable

29

handleholder lower 42 mm

A60301043042C1

Unavailable

27

handleholder upper

A60301038000C1

Unavailable

30

Side reflector

94512082000

$7.10

31

Special screw M6x16.5

J900000601700

Unavailable

35

Washer nylon

93009059000

$1.49

37

RUBBER BUSHING

90101040000

$2.05

36

WASHER 10,5X32X2

90101042000

$1.49

38

SPACER TUBE

90101041000

$4.11

28

AH SCREW M10X1,25X64

J022100643

$3.08

39

SELF L. NUT M10X1,25 H11 WS17

J982101253

$1.49

6

AH SCREW M8X1.25X30

90501045000

$1.49

21

CLAMP HOSE

A60101085000

Unavailable

40

bolt flanged M5x0.8

J900000502001

$1.49

41

nyloc nut-M5x0.8

J982050006

$1.49

24

screw socket step M6x1

J900000601501

Unavailable

34

NUT HEX THICK

J910000600505

$1.49
