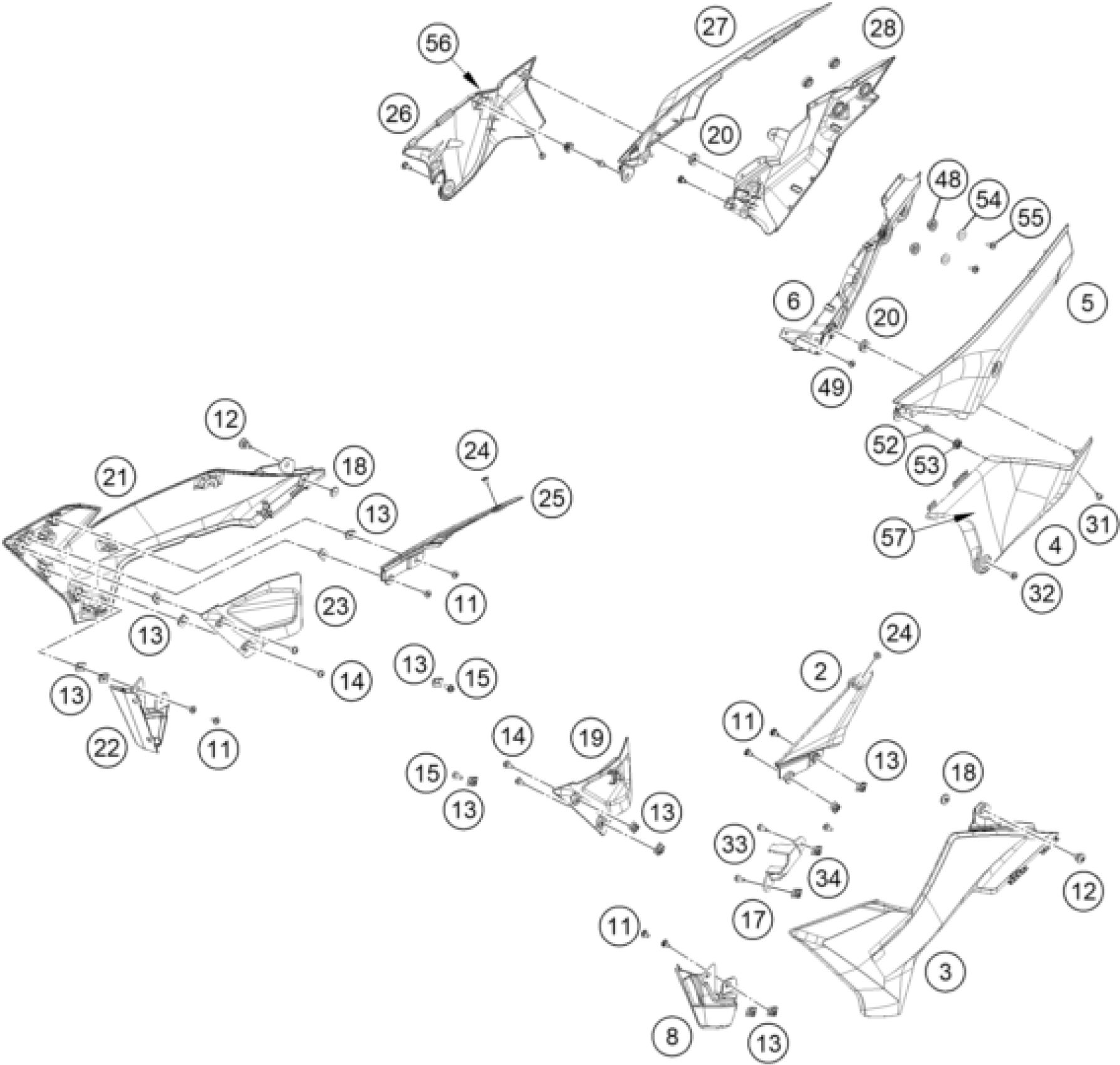

KTM 390 SMC R 2025 COVER Diagram

#

Description
Price

2

SPOILER TANK INNER LH

A60308050010

Unavailable

3

SPOILER TANK OUTER LH

A60308050000ABA

Unavailable

4

Side fairing left

A60108041000EB

Unavailable

5

Rear fairing left

A60108041010EBB

Unavailable

6

Rear fairing left

A60108041020

Unavailable

8

COVER RADIATOR LH

A60335034000

Unavailable

11

special screw M6x15-8.8-hexago

J900000600904

Unavailable

12

bolt flange-m6x1xl19xbrightxst

J025060196

$5.23

13

Clip nut M6

93003077000

$2.05

14

SCREW BUTTON HEAD STEP M6X1

J900000601404

$1.49

17

BRACKET UNIT CONNECTIVITY

A60308050030

Unavailable

18

DAMPER

J650002000600

Unavailable

20

GROMMET

J650002201400

$1.49

21

SPOILER TANK OUTER RH

A60308051000ABA

Unavailable

22

Radiator protection right

A60335035000

Unavailable

25

SPOILER TANK INNER RH

A60308051010

Unavailable

26

Side fairing right

A60108042000EB

Unavailable

27

Rear fairing right

A60108042010EBB

Unavailable

28

Rear fairing right

A60108042020

Unavailable

31

RIVET

93814050000

$1.49

32

XY

Unavailable

48

COLLAR

J800000900800

Unavailable

49

SCREW SOCKET STEP M6X1

J900000601207

Unavailable

52

PIN QUICK RELEASE

A60107044000

Unavailable

53

Rubber grommet ignition lock c

93011068010

$1.49

24

Flange bolt M6x11.7

J900000601213

Unavailable

19

SPOILER TANK INNER FRONT LH

A60308050020

Unavailable

23

SPOILER TANK INNER FRONT RH

A60308051020

Unavailable

34

CLIP NUT M5

90108050001

$2.05

33

SCREW TRUSS M5

J031050146

Unavailable

15

BOLT FLANGED M6X1

J900000601409

Unavailable

54

Washer 17x24x2

J690001720000

Unavailable

55

Cylinder head screw with ISK M

J900000802202

Unavailable

56

Sticker, cover right

A60208081000

Unavailable

57

Sticker, cover left

A60208080000

Unavailable
