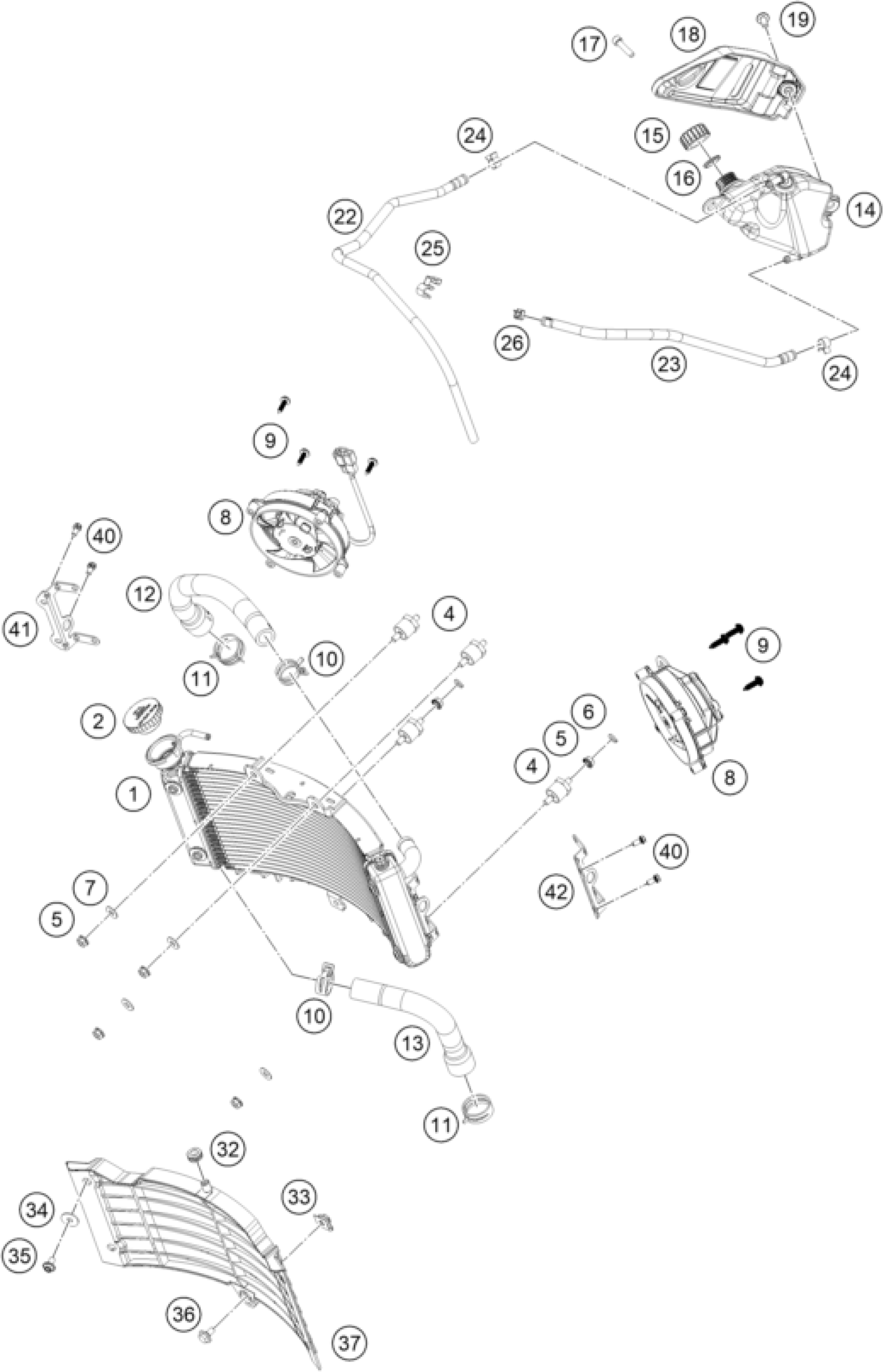

KTM 390 SMC R 2025 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator

96335010000

Unavailable

2

RADIATOR CAP

90135016100

Unavailable

4

SILENTBLOCK M6

93335001000

Unavailable

5

nut hex flange-m6x1xht.6xcl4xb

J926060003

Unavailable

6

Spring ring B6

J127060001

Unavailable

7

washer plain-id6.5xod16xthk1xb

J125070004

Unavailable

8

Radiator fan, cmpl

95835041044

Unavailable

9

SCREW TAPPING PAN DIA 4.8

J900000501900

Unavailable

10

HOSE CLAMP D23

90135020000

Unavailable

11

Spring band clamp D=29

J310001202900

Unavailable

12

PIPE COOLANT

96335024000

Unavailable

13

PIPE COOLANT

96335025000

Unavailable

14

TANK EXPANSION

96335065000

Unavailable

15

PLUG F. EXPANSION TANK

90135066000

Unavailable

16

COMPENSATING TANK O-RING

90102055000

Unavailable

17

Hexagon socket screw, M6X25

J912060253

Unavailable

18

COVER TANK EXPANSION

96335003000

Unavailable

19

SCREW SOCKET M6X1

J900000601607

Unavailable

22

drain pipe

60035067820

Unavailable

23

PIPE COOLANT

J600001041700

Unavailable

24

CLAMP 10MM

90107018011

Unavailable

25

Strap-clip swivel

95835068000

Unavailable

26

Spring clip 9.5

J300000801000

Unavailable

32

Rubber grommet

95835016000

Unavailable

40

SCREW TAPPING PAN DIA 4.8

J900000501900

Unavailable

37

COWL RADIATOR

A60135036000

Unavailable

36

BOLT FLANGED STEP M6X1

J900000601506

Unavailable
