Description

Price

1

HOUSING ASSEMBLY CLUTCH

96332001000

Unavailable

2

INNER CLUTCH HUB

90232102000

$46.93

3

JUDDER SPRING

90232134000

$10.93

4

SEAT JUDDER SPRING

90232135000

$7.85

5

INTERMEDI. DISC A

90232010100

$7.66

6

KIT FRICTION PLATE 390

96332011044

Unavailable

7

INTERMEDI. DISC B

90232110000

$7.38

9

PRESSURE PLATE

90232103000

$33.46

10

spring, clutch

96332005000

Unavailable

11

HH COLLAR SCREW M6X35

90232101101

$2.05

12

BALL BEARING 6902 15X28X7

J625069020

$10.46

13

SHIM

90232017000

$2.05

14

SPECIAL WASHER

90236015001

$1.49

15

NUT F. CLUTCH

90232019000

$5.23

16

rod pull

96332049000

$4.85

17

STOPPER PLATE

90232006000

$6.91

18

SPRING SEAT

90232004000

$5.98

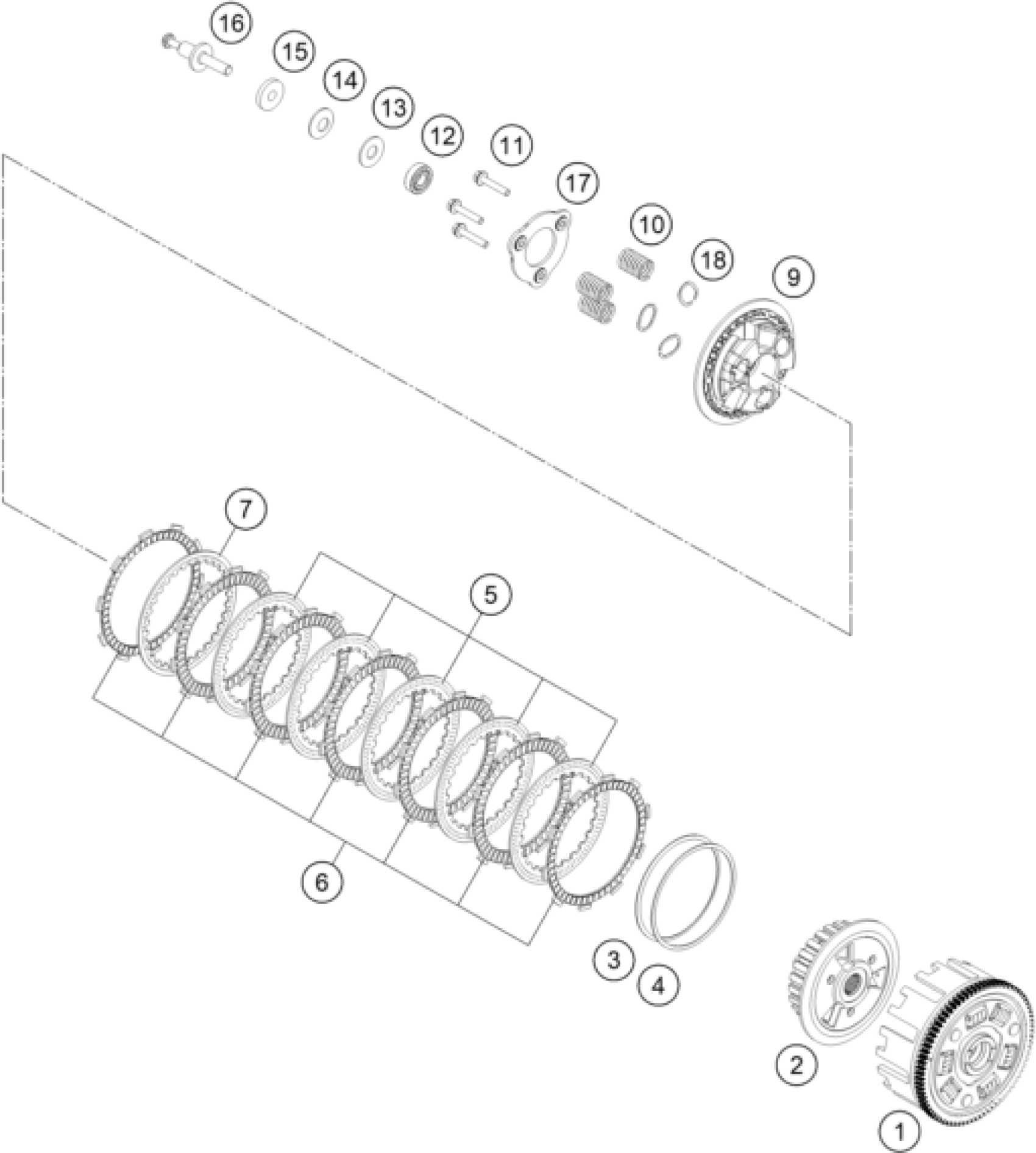

KTM 390 SMC R 2025 CLUTCH Diagram

HOUSING ASSEMBLY CLUTCH

INNER CLUTCH HUB

JUDDER SPRING

SEAT JUDDER SPRING

INTERMEDI. DISC A

KIT FRICTION PLATE 390

INTERMEDI. DISC B

PRESSURE PLATE

spring, clutch

HH COLLAR SCREW M6X35

BALL BEARING 6902 15X28X7

SHIM

SPECIAL WASHER

NUT F. CLUTCH

rod pull

STOPPER PLATE

SPRING SEAT
