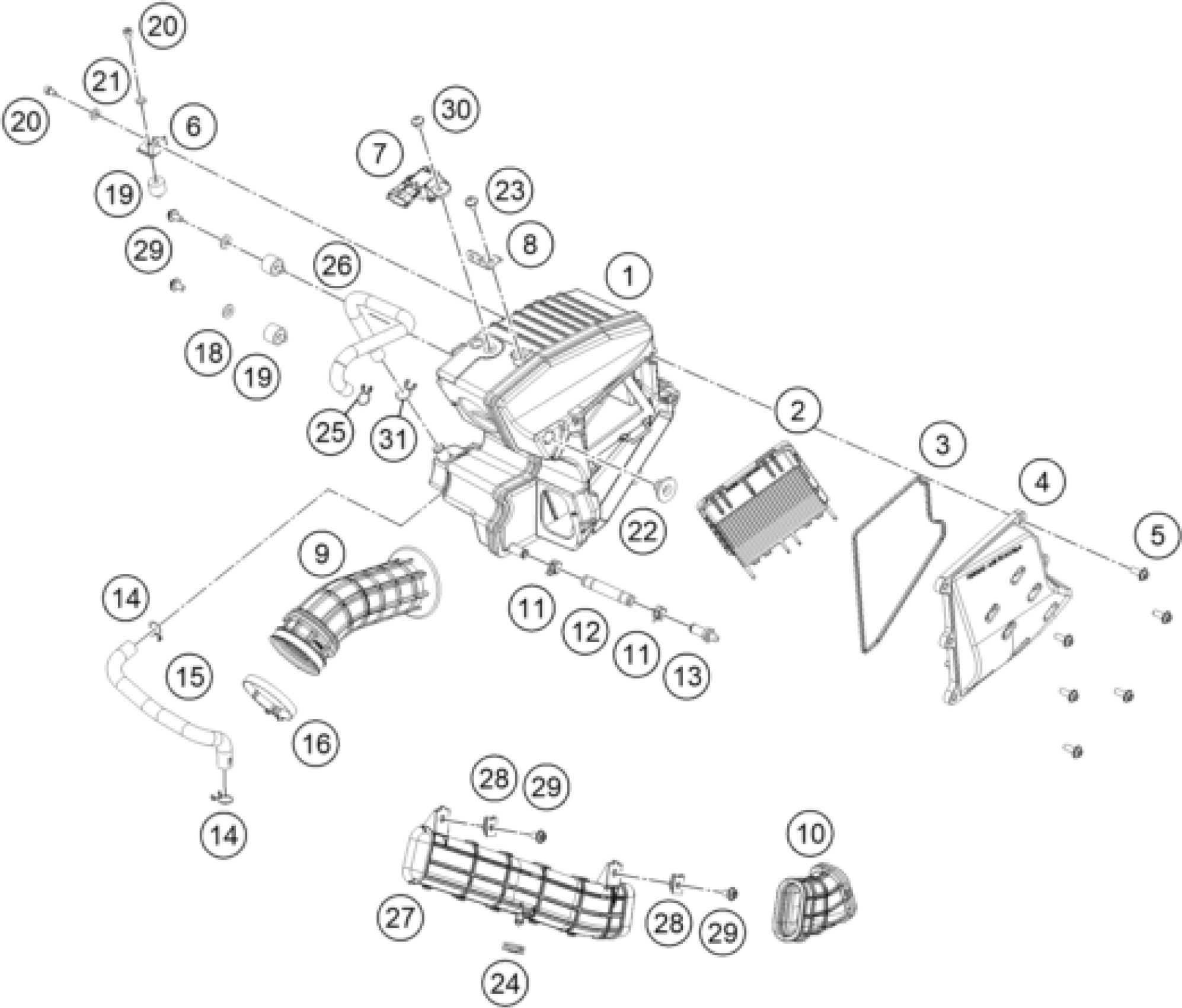

KTM 390 SMC R 2025 AIR FILTER Diagram

#

Description

Price

1

BOX ASSEMBLY FILTER AIR

96306001000

Unavailable

2

ELEMENT FILTER AIR

96306015000

Unavailable

3

SEAL COVER SIDE

96306090000

Unavailable

4

COVER SIDE

96306003010

Unavailable

5

SCREW SOCKET M6X1

J900000601607

Unavailable

7

TMAP-SENSOR

90141071000

Unavailable

8

bracket purge valve

96307030010

Unavailable

9

TUBE CONNECTING

96306026000

Unavailable

10

GROMMET DUCT

96306041000

Unavailable

11

CLAMP

96330087001

Unavailable

12

drain pipe

96330087020

Unavailable

13

PLUG DRAINAGE

90106000001

Unavailable

14

CLAMP (BREATHER TUBE)

96306030000

Unavailable

15

oil pipe

96330087010

Unavailable

16

hose clamp

90241002010

Unavailable

18

WASHER PLAIN

J690000720000

Unavailable

19

SILENT BLOCK AIRFILTER

90106001007

Unavailable

20

BOLT SOCKET M6X1

J900000601002

Unavailable

21

WASHER PLAIN

J690000620000

Unavailable

22

Damping rubber

93006001080

Unavailable

23

Lens head screw M6X10

J031060103

Unavailable

24

GROMMET

J650002201401

Unavailable

25

HOSE CLAMP

90130087001

Unavailable

26

breather pipe

96330087000

Unavailable

27

DUCT INTAKE

96306040000

Unavailable

28

Range change metal nut M6

93008084010

Unavailable

29

Allen head screw M6x12

J900000601206

Unavailable

30

Lens head screw M6X10

J031060103

Unavailable

6

Air box bracket

A61706001010

Unavailable

31

CLAMP 16MM

90607017000

Unavailable
