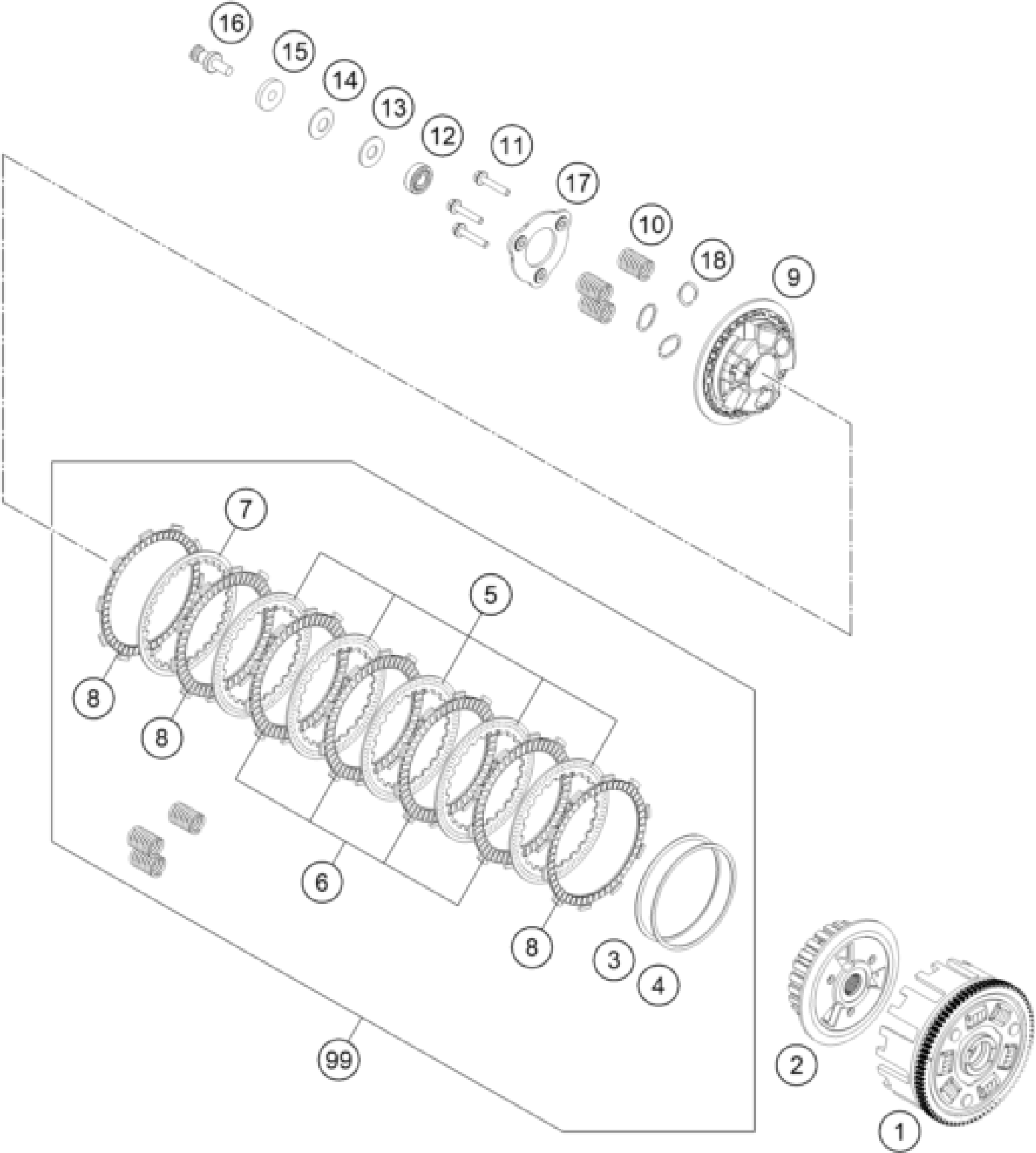

KTM 390 DUKE WHITE ABS 2015 CLUTCH Diagram

#

Description

Price

7

INTERMEDI. DISC B

90232110000

Unavailable

1

CLUTCH CAGE CPL.

90232101044

Unavailable

2

INNER CLUTCH HUB

90232102000

Unavailable

3

JUDDER SPRING

90232134000

Unavailable

4

SEAT JUDDER SPRING

90232135000

Unavailable

5

INTERMEDI. DISC A

90232010100

Unavailable

6

LINING DISC

90232011000

Unavailable

8

LINING DISC TURNED OFF

90232211000

Unavailable

9

PRESSURE PLATE

90232103000

Unavailable

10

CLUTCH SPRING

90232105000

Unavailable

11

HH COLLAR SCREW M6X35

90232101101

Unavailable

12

BALL BEARING 6902 15X28X7

J625069020

Unavailable

13

SHIM

90232017000

Unavailable

14

SPECIAL WASHER

90236015001

Unavailable

15

NUT F. CLUTCH

90232019000

Unavailable

16

PULL ROD

90232048004

Unavailable

99

CLUTCH KIT 390 DUKE 15

90232111010

Unavailable

17

STOPPER PLATE

90232006000

Unavailable

18

SPRING SEAT

90232004000

Unavailable
