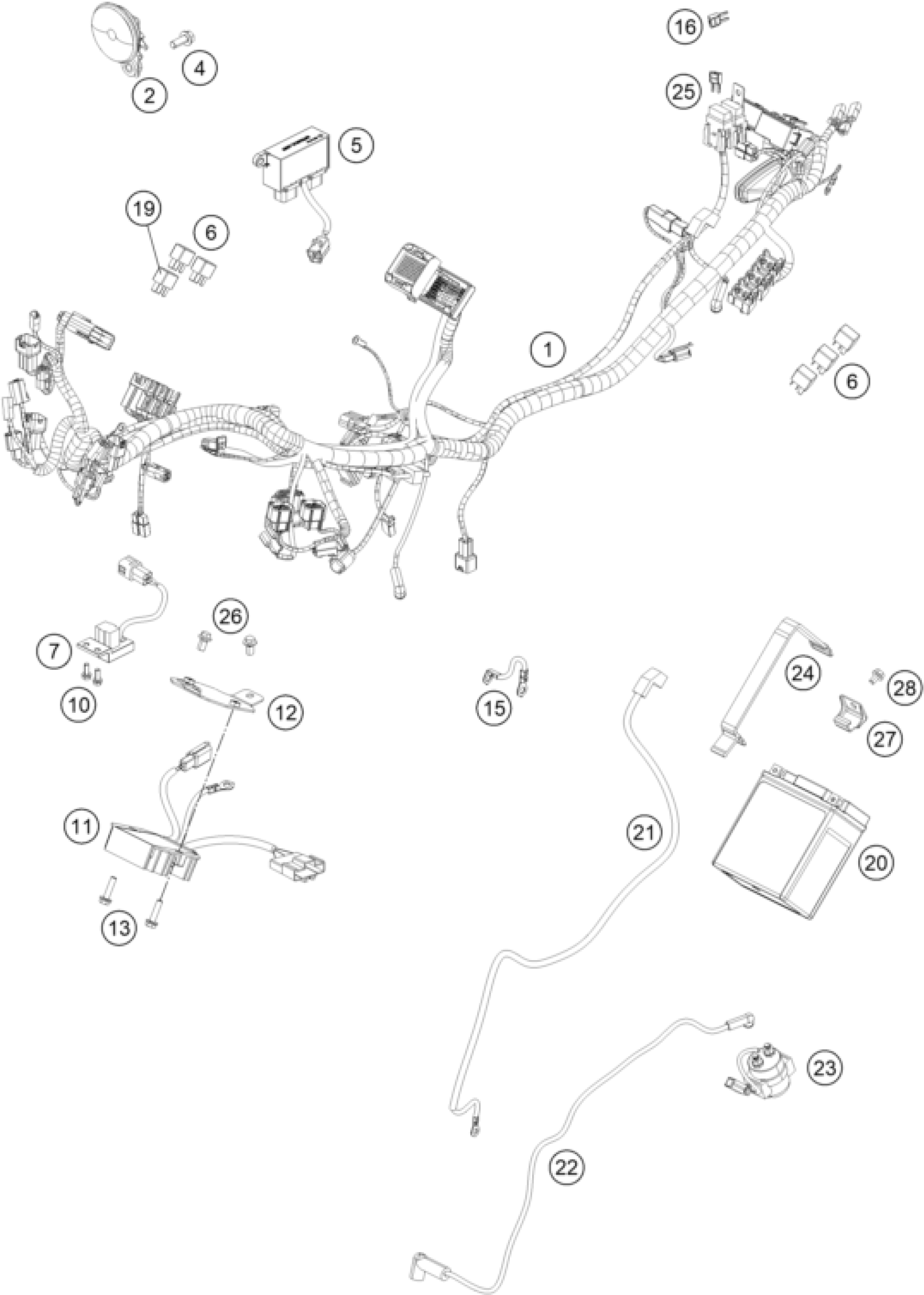

KTM 390 DUKE WHITE ABS 2013 WIRING HARNESS Diagram

#

Description

Price

2

HORN 82 DIA

90111060100

Unavailable

16

FUSE 15A 07

75011088015

Unavailable

5

INTEGRAL UNIT

90611035000

Unavailable

6

relay (interlock)

90611057000

Unavailable

1

WIRING HARNESS

90111275000

Unavailable

4

HH COLLAR SCREW M8X12 SW12

J025080123

Unavailable

7

ROLL OVER SENSOR

90141088000

Unavailable

10

HH COLLAR SCREW M5X13 SW8

J011050133

Unavailable

11

VOLTAGE REGULATOR

90111034000

Unavailable

12

BRACKET REGULATOR MTG

90111134010

Unavailable

13

bolt flanged M6X25

J025060253

Unavailable

15

earth wire

90211097000

Unavailable

16

FUSE 10A 07

75011088010

Unavailable

16

FUSE 30A

75011088030

Unavailable

27

BRACKET BATTERY MTG

90611054000

Unavailable

19

RELAY (AUX1DIODE)

90611157000

Unavailable

20

BATTERY 12V/8AH

90611053000

Unavailable

21

EARTH CABLE

90211197000

Unavailable

22

CABLE RELAY TO MOTOR

90211059000

Unavailable

23

STARTER RELAY

90111058000

Unavailable

24

BRACKET RUBBER FOR BATTERY

90111054000

Unavailable

25

FUSE 25A

90111088025

Unavailable

26

HH-COLLAR SCREW M6X10 SW8

J025060109

Unavailable

16

FUSE MINI 20A

75011088020

Unavailable

28

HH COLLAR SCREW M6X10 SW10

J025060103

Unavailable
