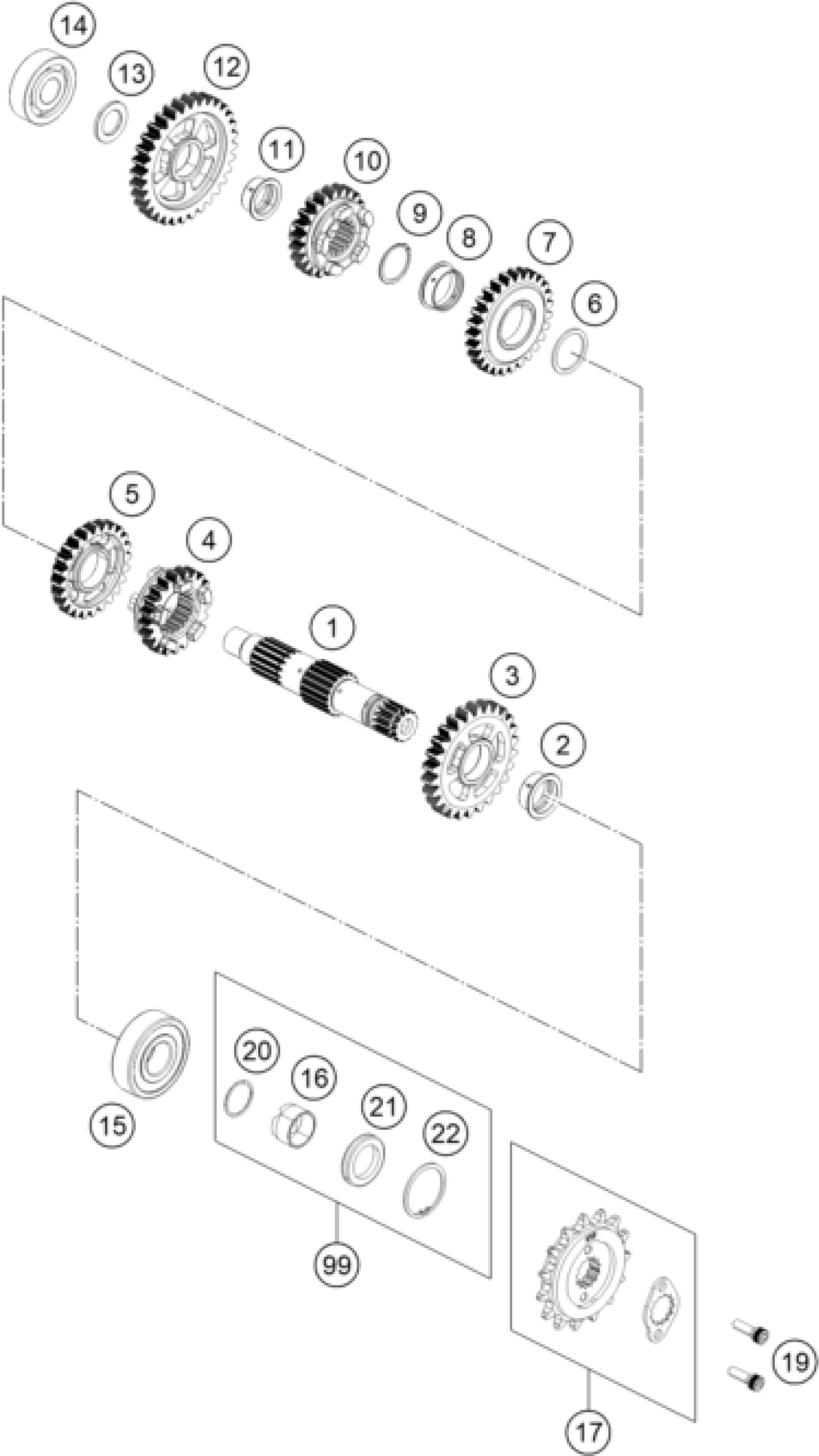

KTM 390 DUKE WHITE ABS 2013 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description

Price

1

COUNTERSHAFT CPL.

90233010010

Unavailable

2

COLLAR BUSH

90233012001

Unavailable

3

GEAR 2ND DRIVEN

90233012000

Unavailable

4

GEAR 6TH DRIVEN

90233016000

Unavailable

5

GEAR 4TH DRIVEN

90233014000

Unavailable

6

THRUST WASHER

90233037000

Unavailable

7

GEAR 3RD DRIVEN

90233013000

Unavailable

8

COLLAR BUSH

90233013001

Unavailable

9

CIRCLIP 23,5X1,2

J472023120

Unavailable

10

GEAR 5TH DRIVEN

90233015000

Unavailable

11

COLLAR BUSH

90233011001

Unavailable

12

GEAR 1ST DRIVEN

90233011000

Unavailable

13

THRUST WASHER

90233038000

Unavailable

14

DEEP GROOVE BALL BEARING

90233010001

Unavailable

15

DEEP GROOVE BALL BEARING 63/22

J625063220

Unavailable

16

BUSHING SPROCKET

90233030000

Unavailable

20

O-RING 19,5X1,5

J770019515

Unavailable

21

OIL SEAL OUTPUT SHAFT

90230077000

Unavailable

22

CIRCLIP 37X1,5

J472037150

Unavailable

99

SEALING KIT COUNTERSHAFT

90233030044

Unavailable

17

SPROCKET 15T W. LOCKING PLATE

90833029044

Unavailable

19

BOLT M6X10

90110057000

Unavailable
