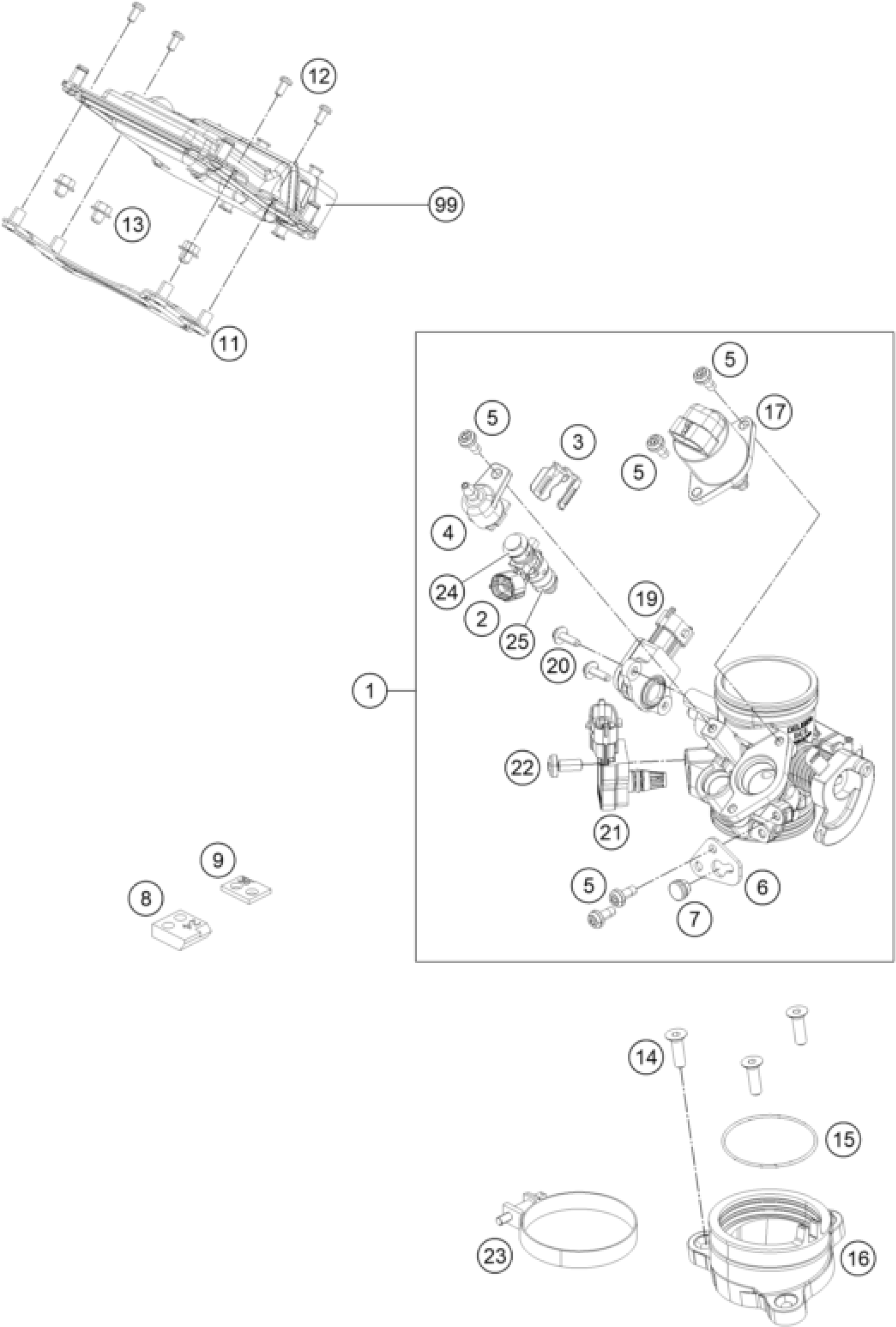

KTM 390 DUKE WHITE ABS 2013 THROTTLE BODY Diagram

#

Description

Price

1

THROTTLE BODY CPL.

90241001000

Unavailable

2

FUEL INJECTOR

90241023000

Unavailable

3

INJECTOR CLIP

90141001001

Unavailable

4

CONNECTOR FUEL RAIL

90141023004

Unavailable

5

SPECIAL SCREW M5X12

90141023005

Unavailable

7

GROMMET

90141023003

Unavailable

11

BRACKET TIMING CHARGER

90141029000

Unavailable

12

FLAT HEAD SCREW M4X8 PH

J005040081

Unavailable

13

HH COLLAR SCREW M5X8 SW8

J025050083

Unavailable

6

CABLE SUPPORT

90141023002

Unavailable

14

COUNTERSUNK SCREW M6X20

J991060203S

Unavailable

15

O-RING 53X2,4

J770053024

Unavailable

16

PIPE INTAKE

90241002000

Unavailable

17

IDLE ADJUSTER

90641072000

Unavailable

19

THROTTLE POSITION SENSOR

90141070000

Unavailable

20

SPECIAL SCREW M4X13

90141070001

Unavailable

21

TMAP-SENSOR

90141071000

Unavailable

22

SPECIAL SCREW M6X14

90141071001

Unavailable

23

hose clamp

90241002010

Unavailable

99

ECU RAW PART

90141031100

Unavailable

8

POWER REDUCTION PLATE

90241001005

Unavailable

9

POWER REDUCTION PLATE

90241001006

Unavailable

24

O-ring

55641023020

Unavailable

25

O-ring

55641023010

Unavailable
