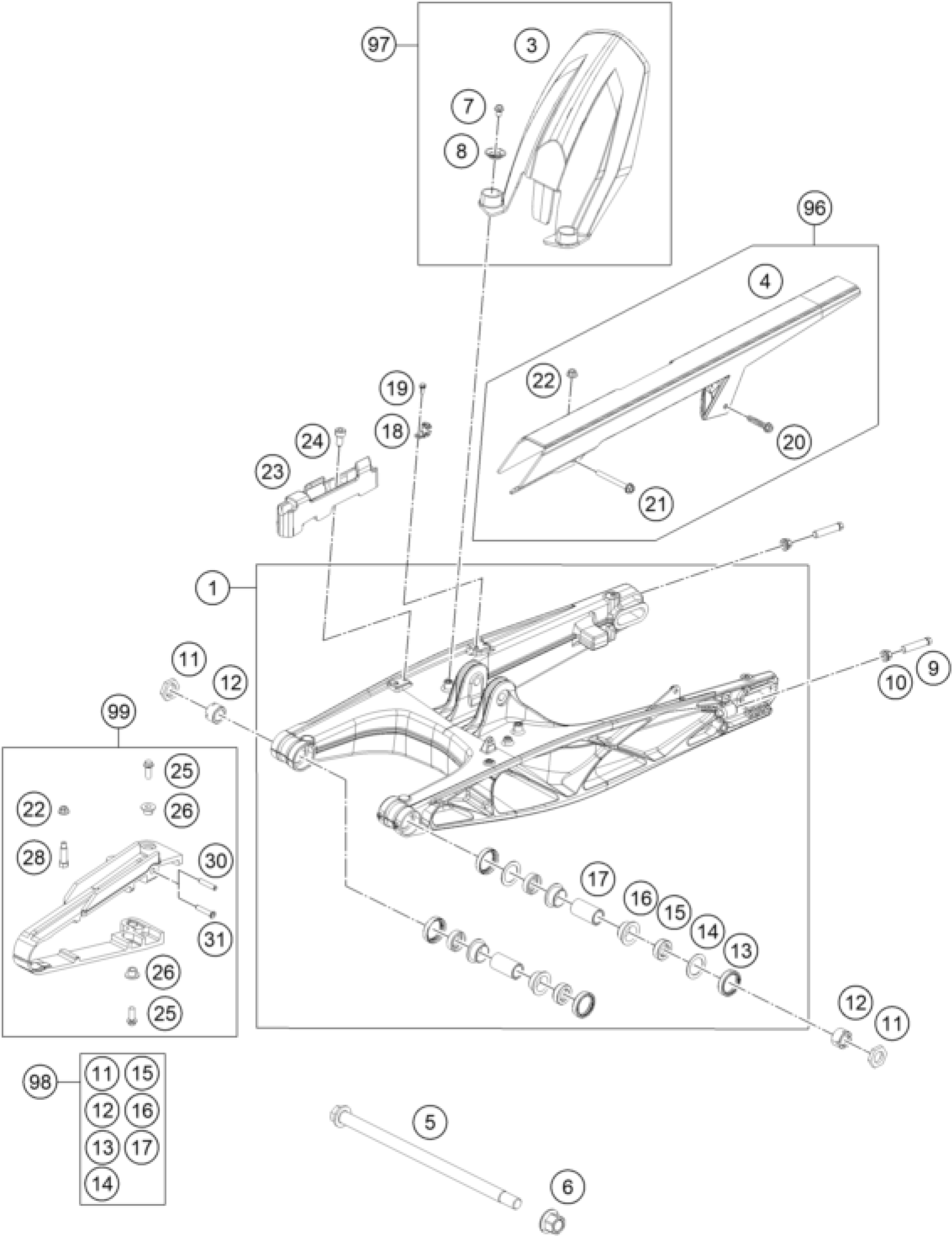

KTM 390 DUKE WHITE ABS 2013 SWING ARM Diagram

#

Description

Price

1

SWING ARM CPL.

90504030044

Unavailable

28

screw M5x0.8x30

90104040100

Unavailable

3

SPLASH PROTECTOR

90104050000

Unavailable

4

CHAIN GUARD CPL.

90104060000

Unavailable

11

hex thrust washer

90104042000

Unavailable

12

swingarm adjusting ring

90104046000

Unavailable

13

OIL SEAL RING 25X32X7

90104034001

Unavailable

14

Thrust washer 22.2x31.7x1

90104036000

Unavailable

15

cup for radial shaft seal

90104034000

Unavailable

16

Igus plain bearing

90104031000

Unavailable

17

sleeve bushing 15.1x20x38

90104032000

Unavailable

18

brake hose guide

90113047000

Unavailable

19

HH COLLAR SCREW M5X13 SW8

J011050133

Unavailable

20

SPECIAL SCREW T60 6X30 WS=6

0017060303

Unavailable

21

HH COLLAR SCREW M5X50 SW8

J025050503

Unavailable

22

HH COLLAR NUT

90204060001

Unavailable

23

brake hose guide

90113147000

Unavailable

24

AH SCREW M5X10

J912050101

Unavailable

98

SWINGARM REP. KIT 11-17

90104230010

Unavailable

99

CHAIN GUARD KIT 250/390

90104066210

Unavailable

25

HH COLLAR SCREW M6X16 SW8

J025060169

Unavailable

26

chain slider bushing

90604062000

Unavailable

7

HH COLLAR SCREW M6X8 SW8

J025060083

Unavailable

8

BUCKET

90104067000

Unavailable

9

BOLT HEX M10X1.25X50 WS10

90104040000

Unavailable

10

flanged hex nut M10x1.25 WS13

90104010002

Unavailable

97

SPLASH GUARD KIT 390 DUKE

90106010010

Unavailable

96

CHAIN PROTECTION KIT DUKE

90104060110

Unavailable

6

FLANGED NUT M14X1.5

90104038000

Unavailable

5

Shaft swing arm L=299mm

90104037000

Unavailable

31

SLEEVE CHAIN GUARD

90904070020

Unavailable

30

SLEEVE CHAIN GUARD

90104070020

Unavailable
