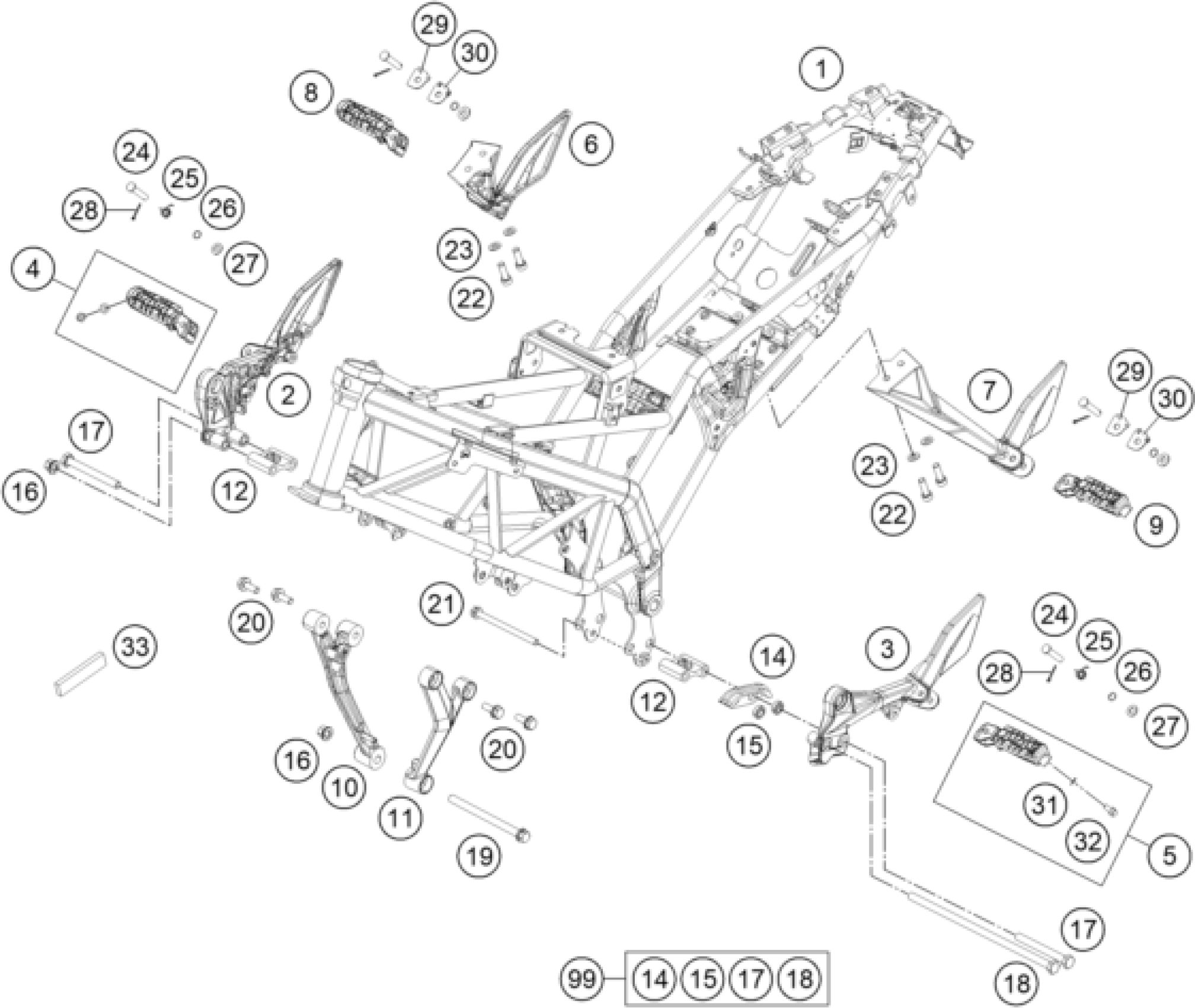

KTM 390 DUKE WHITE ABS 2013 FRAME Diagram

#

Description

Price

1

FRAME CPL.

90203001033

Unavailable

5

footrest front left cpl.

90103040033

$12.71

3

FOOTREST BRACKET FRONT L/S

90103038000

$62.26

12

footrest support holder, front

90103038001

$9.90

14

chainguide

90104070000

$10.84

7

FOOTREST BRACKET REAR L/S

90103048000

$48.33

8

footrest rear right cpl.

90103051033

$21.87

9

footrest rear left cpl.

90103050033

$21.87

10

ENGINE CARRIER R/S

90203006000

$32.06

2

FOOTR. BRACKET FRONT R/S

90103039000

$61.89

4

footrest front right cpl.

90103041033

$12.71

6

FOOTREST BRACKET REAR R/S

90103049000

$48.70

11

ENGINE CARRIER L/S

90203005000

$30.66

15

spacer chainguide

90104066010

$3.08

16

FLANGED NUT M10X1.25 WS14

90103038002

$2.05

17

HH COLLAR SCREW M10X1,25X92

J025100926

$3.08

18

HH COLLAR SCREW M10X1,25X265

J025102656

$6.35

19

ENGINE MOUNTING SCREW M10X132

90103013000

$4.11

20

COLLAR SCREW M8X132 WS14

J025081323

Unavailable

21

HH COLLAR SCREW M8X105 SW12

J027081053

$2.05

22

BOLT

90103098000

$2.05

23

WASHER 8,2X16X1,5

J125080003

$1.49

24

BOLT FOR FOOTREST

90103044000

$4.11

25

footrest return spring

90103042000

$4.11

26

O-RING 9X1,5

J770009015

$1.49

27

WASHER M8

J125080004

$1.49

28

PIN 25X1,8MM

J094018250

$1.49

29

footrest lock plate 1

90103052000

$3.08

30

footrest lock plate 2

90103053000

$3.08

31

PLAIN WASHER 6,4X12X1

90103040001

$1.49

32

CAP SCREW M6X10 SS

J029060103S

$2.05

99

CHAIN GUIDE KIT 125 DUKE

90104070010

Unavailable

33

ANTI-ABRASIVE TAPE

90103000001

Unavailable

33

ANTI-ABRASIVE TAPE

90103000002

Unavailable

33

ANTI-ABRASIVE TAPE

90103000003

Unavailable
