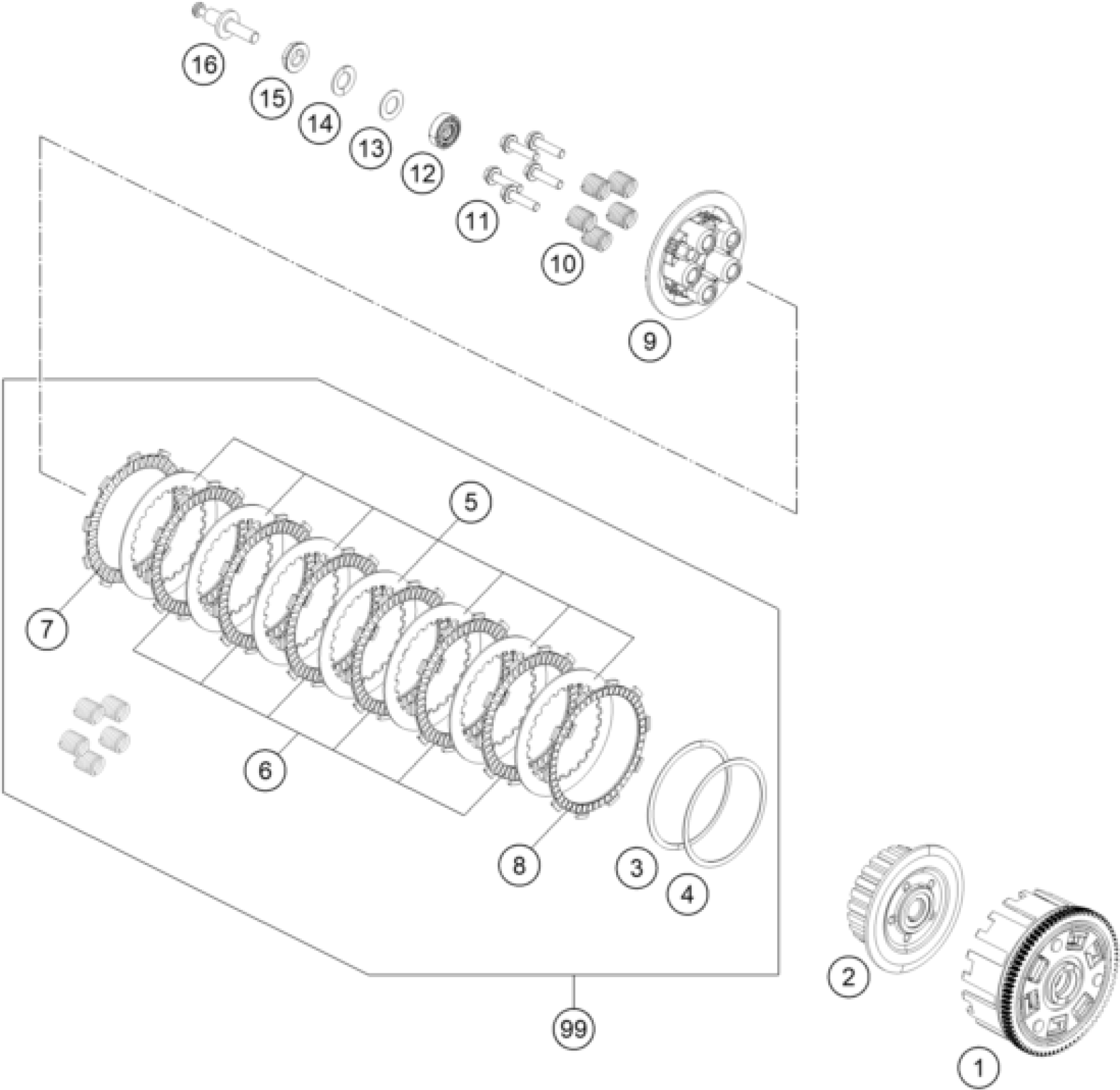

KTM 390 DUKE WHITE ABS 2013 CLUTCH Diagram

#

Description

Price

16

PULL ROD

90232048004

Unavailable

2

INNER CLUTCH HUB

90232002000

Unavailable

3

BELLEVILLE SPRING

90232034000

Unavailable

1

CLUTCH CAGE CPL.

90232001044

Unavailable

4

SUPPORT RING

90232035000

Unavailable

5

INTERMEDI. DISC

90232010000

Unavailable

6

LINING DISC

90232011000

Unavailable

7

LINING DISK INSIDE

90232111000

Unavailable

8

LINING DISC TURNED OFF

90232211000

Unavailable

9

PRESSURE PLATE

90232003000

Unavailable

10

CLUTCH SPRING

90232005000

Unavailable

11

HH COLLAR SCREW M6X25

90232001001

Unavailable

12

BALL BEARING 15X32X9

90232095000

Unavailable

13

SHIM

90232017000

Unavailable

14

SPECIAL WASHER

90236015001

Unavailable

15

NUT F. CLUTCH

90232019000

Unavailable

99

CLUTCH KIT 390 DUKE

90232011010

Unavailable
