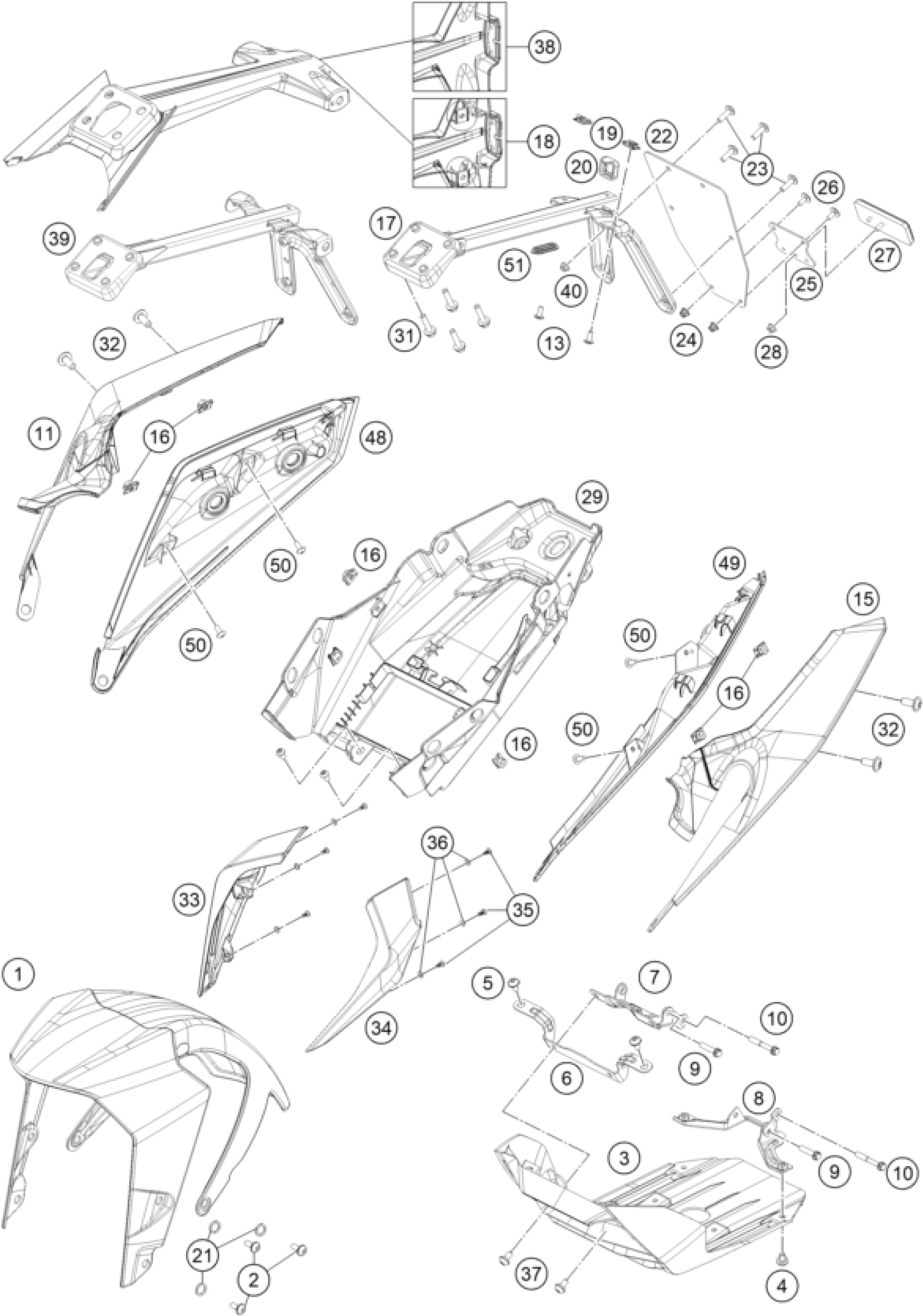

KTM 390 DUKE, white 2021 MASK, FENDERS Diagram

#

Description

Price

1

Front fender cpl. black

9300801003330

Unavailable

2

Panhead screw with shoulder

J031050161

Unavailable

3

Under-engine fairing 250/390

93308020000

Unavailable

4

Screw M6X1X9

93008020060

Unavailable

5

SOCKET HEAD BOLT M6X12

90508006001

Unavailable

6

Bracket belly pan front

93008021000

Unavailable

7

Bracket belly pan rear

93008021020

Unavailable

8

Bracket belly pan rear

93008021120

Unavailable

9

Hexagon srew M6X14

J025060144

Unavailable

10

Hexagon screw M6X35

J025060359

Unavailable

11

Seat cowl up rh cer white

93008039000AB

Unavailable

13

Lens head screw M5X12

J031050123

Unavailable

15

DUKE 390 SEATCOWL UP RHJP18100

93008018010AB

Unavailable

16

CLIP NUT M5

90108050001

Unavailable

17

Structure assembly plate numbe

93008015200

Unavailable

18

License plate holder support c

93008015050

Unavailable

19

Clip Nut M5

93008083010

Unavailable

20

Protection rubber

93008015010

Unavailable

21

Washer nylon

93009059000

Unavailable

22

REAR FENDER EXT.

90808016000

Unavailable

23

AH SCREW M6X1X20

90508006003

Unavailable

24

HEX NUT M5 AF8

90102031010

Unavailable

25

REFLECTOR MOUNTING

90514044000

Unavailable

26

FLAT HEAD SCREW M5X12 PH

J005050123

Unavailable

27

REFLECTOR

90514045000

Unavailable

28

HH COLLAR NUT

90204060001

Unavailable

29

Tail end lower part

93008019000

Unavailable

31

Hex collar screw M6X22

J025060226

Unavailable

32

AH SCREW M8X20

90508008001

Unavailable

33

Side mask right LED black

9300800100030

Unavailable

34

Side mask left LED black

9300802400030

Unavailable

35

Lens head screw M3,5X10

J981030101

Unavailable

36

Washer plain small 4.5X8X0.5XB

J125040003

Unavailable

37

Screw M6X1X13

93008040000

Unavailable

38

License plate holder support,

93008015150

Unavailable

39

Licence plate holder support

93008015300

Unavailable

40

Nut nyloc flanged M6X1XHT.9.1

90508016001

Unavailable

48

SEAT COWL LOWER RH

93008019030

Unavailable

49

SEAT COWL LOWER LH

93008019020

Unavailable

50

Lens head screw M5X12

J031050123

Unavailable

51

grommet

93008015060

Unavailable
