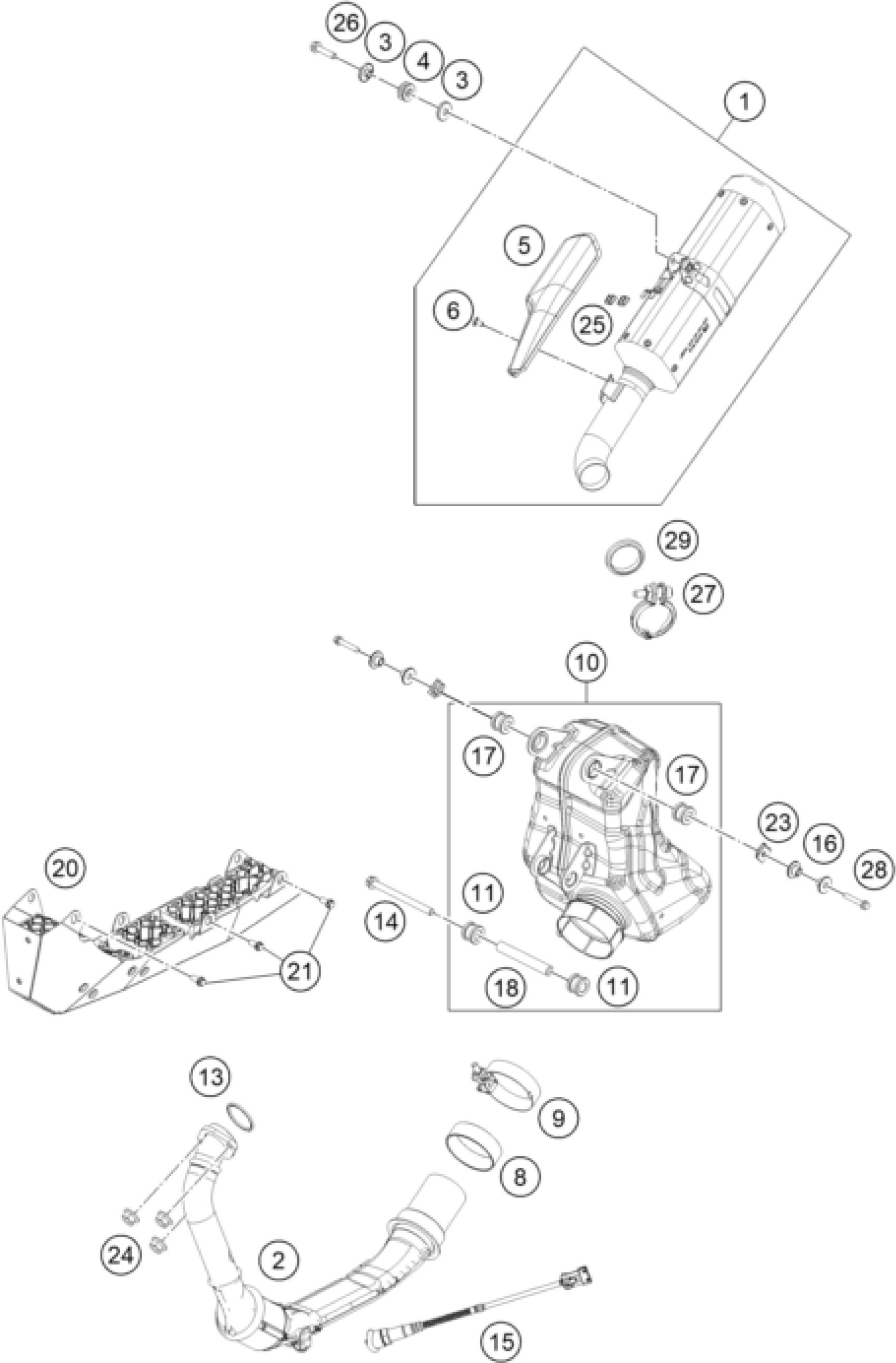

KTM 390 DUKE, silver 2021 EXHAUST SYSTEM Diagram

#

Description

Price

10

ASSEMBLY PREMUFFLER

28105050044

Unavailable

2

PIPE ASSEMBLY A

94305007031

Unavailable

1

MUFFLER ASSEMBLY SECONDARY

94305083000

Unavailable

5

MUFFLER SHIELD

93805011000

Unavailable

6

Lens head screw M6X10

J031060103

Unavailable

25

GROMMET MUFFLER SHIELD

93805011003

Unavailable

24

Hex collar nut M6

J926080003

Unavailable

15

Oxygen sensor

94341090000

Unavailable

17

damper, bottom

90205068000

Unavailable

11

damper, bottom

90105068100

Unavailable

18

muffler mounting tube

90105084000

Unavailable

16

muffler mounting spacer bushin

90205086001

Unavailable

28

BOLT SILENCER MTG

90105000002

Unavailable

14

HH COLLAR SCREW M8X105 SW12

J027081053

Unavailable

26

BOLT FLANGED M8X35

J025080353

Unavailable

3

BUSH MUFFLER

93805095000

Unavailable

4

DAMPER MUFFLER

93805096000

Unavailable

9

Exhaust clamp

94305051000

Unavailable

27

Exhaust clamp

94305051045

Unavailable

29

Exhaust flange gasket, muffler

94305050071

Unavailable

8

Exhaust flange gasket, premuff

94305050072

Unavailable

20

Heat protection cmpl.

94305065033

Unavailable

21

BOLT FLANGED M6X14

J028060143

Unavailable

23

clip nut

90103097000

Unavailable

13

exhaust flange gasket

90105004000

Unavailable
