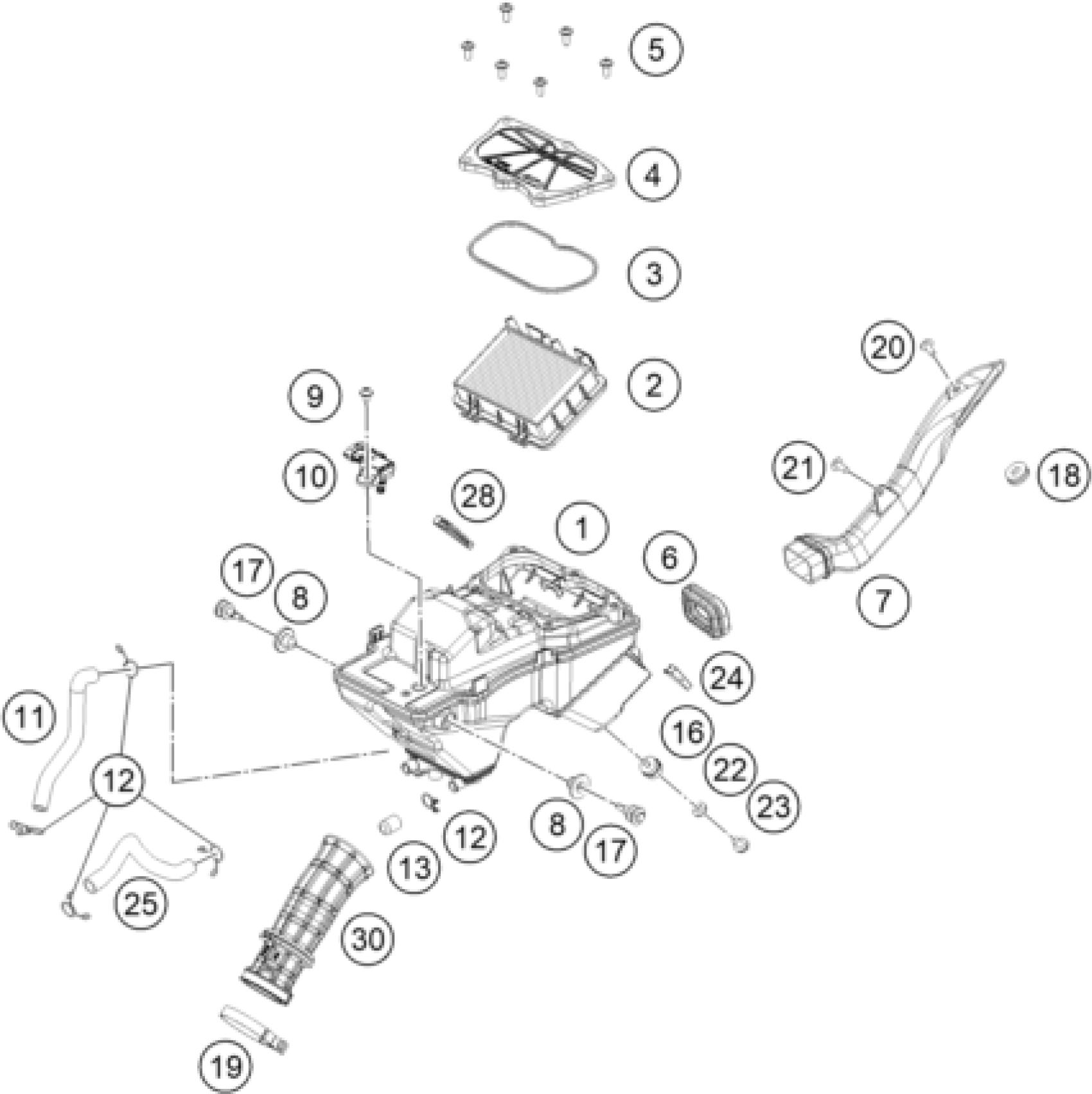

KTM 390 DUKE, silver 2021 AIR FILTER Diagram

#

Description

Price

1

Air filter box

94306001000

Unavailable

2

FILTER

93006015000

Unavailable

3

Seal

93006020050

Unavailable

4

Air filter box cover

93006002000

Unavailable

5

Flat-head screw M6

93006039000

Unavailable

6

Carburetor connection boot

93006001060

Unavailable

7

Intake snorkel cmpl.

94306040033

Unavailable

8

Damping rubber

93006001080

Unavailable

11

Engine vent hose

93030088050

Unavailable

12

HOSE CLAMP

90130087001

Unavailable

13

Plug

93030089000

Unavailable

16

SILENT BLOCK AIRFILTER

90106001007

Unavailable

17

Screw

93007046050

Unavailable

18

Rubber bushing

93008019010

Unavailable

19

hose clamp

90241002010

Unavailable

20

Screw truss M5X12

J031050126

Unavailable

21

Screw truss M5X16

J031050166

Unavailable

22

Washer - plain

J125060001

Unavailable

23

HH COLLAR SCREW M6X8 SW10

J026060083

Unavailable

24

Rubber cowl pad

93006001015

Unavailable

25

Engine vent hose

93030087050

Unavailable

28

Distance piece air filter box

93006021000

Unavailable

30

CONNECTING TUBE

93306026000

Unavailable

10

TMAP-SENSOR

90141071000

Unavailable

9

Lens head screw M6X10

J031060103

Unavailable
