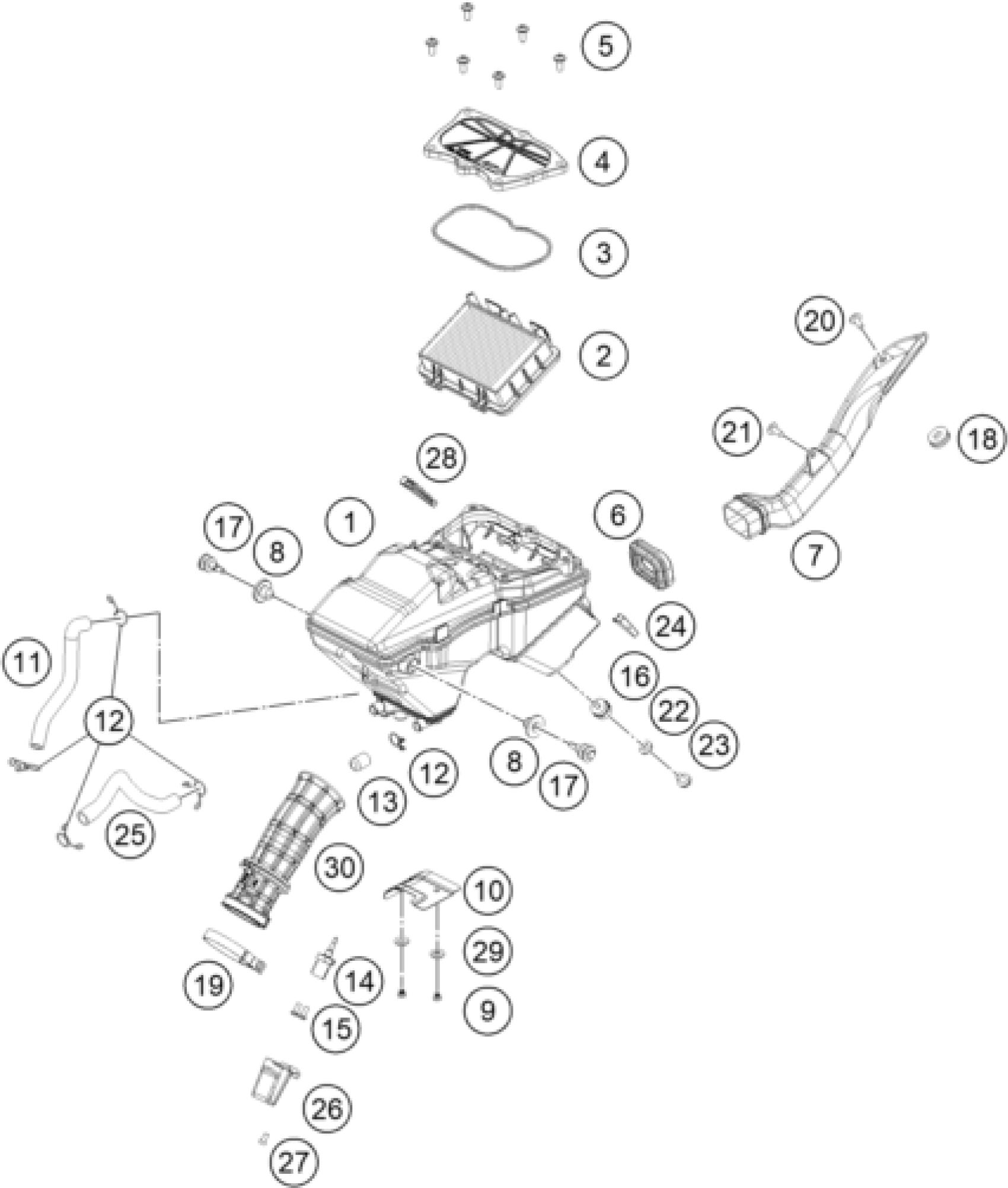

KTM 390 Duke, orange - CKD 2020 AIR FILTER Diagram

#

Description

Price

1

ASSEMBLY AIR BOX

93306001000

Unavailable

2

FILTER

93006015000

$22.24

3

Seal

93006020050

$1.49

4

Air filter box cover

93006002000

$10.46

5

Flat-head screw M6

93006039000

$1.49

6

Carburetor connection boot

93006001060

$2.05

7

Duct dirty side

93006040000

$19.16

8

Damping rubber

93006001080

$1.49

9

Screw Truss M5X0.8

J031050103

$1.49

10

Heat protection

93006001070

$7.38

11

Engine vent hose

93030088050

$22.71

12

HOSE CLAMP

90130087001

$3.08

13

Plug

93030089000

$1.49

14

Intake air temperature sensor

93041080000

$41.69

15

Lens head screw M5X12

J005050126

$1.49

16

SILENT BLOCK AIRFILTER

90106001007

$5.88

17

Screw

93007046050

$6.54

18

Rubber bushing

93008019010

$1.49

19

hose clamp

90241002010

$5.23

20

Sleeve spoiler inner RR MTG

93008044000

$1.49

21

Screw truss M5X16

J031050166

$1.49

22

Washer - plain

J125060001

$1.49

23

HH COLLAR SCREW M6X8 SW10

J026060083

$1.49

24

Rubber cowl pad

93006001015

$1.49

25

Engine vent hose

93030087050

$3.08

26

SENSOR COVER

93041080060

$1.49

27

Oval head screw M5X10

J005050101

Unavailable

28

Distance piece air filter box

93006021000

$1.49

29

WASHER ASBESTOS

90505090050

$5.79

30

Tube connecting _E25

93306826000

Unavailable
