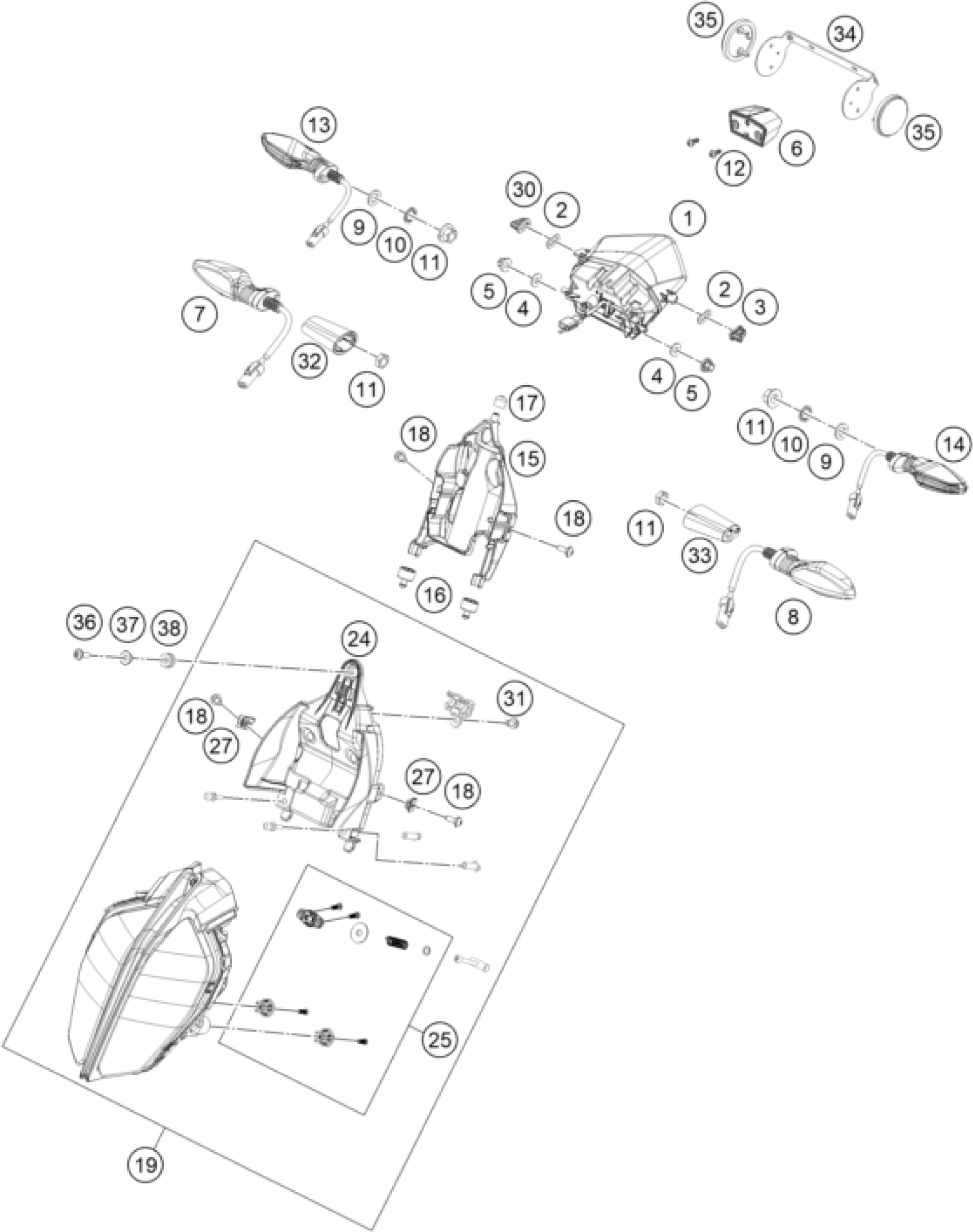

KTM 390 Duke, orange - B.D. 2018 LIGHTING SYSTEM Diagram

#

Description

Price

1

lamp tail MY17

93014040100

$118.36

2

Washer

93014040040

$1.49

3

Rubber grommet tail light left

93014040020

$1.49

4

Washer

93014040030

$1.49

5

Rubber bushing

93014040010

$1.49

6

LICENSE PLATE ILLUMINATION

90114047000

$26.55

7

Right front flasher US

93014526000

$35.90

8

Left front flasher US

93014525000

$39.64

9

WASHER PLAIN 10,5

J125100003

$1.49

10

TOOTHED WASHER M10

J797100003

$1.49

11

Nut hex thin-M10x1.25

J934100006

$1.49

12

SHEET MET.SCR. DIN 7981 4,2X13

J981420133

$1.49

13

INDICATOR CPL. RR R/S USA

90514526044

$41.13

14

INDICATOR CPL. RR L/S USA

90514525044

$41.13

15

Support

93014013000

$8.78

16

Rubber bushing

93014015000

$1.49

17

Rubber bushing

93014014000

$1.49

18

Screw M6X1X13

93008040000

$1.49

19

Headlight

93014001344

$815.50

24

Holder headlamp LED

93014019100

$19.53

25

Kit LED lamp Bush

93014099000

$5.23

27

Range change metal nut M6

93008084010

$1.49

31

Screw M6X1X9

93008020060

$2.05

32

Right flasher adapter US

93014526050

$2.05

33

Left flasher adapter US

93014525050

$2.05

34

BRACKET SIDE REFLECTOR REAR

90212581000

$6.91

35

SIDE REFLECTOR REAR

90212582000

$5.23

36

AH SCREW M6X1X20

90508006003

$4.11

37

Collar head lamp holder MTG

93014018100

$1.49

38

Rubber bushing

93014017000

$1.49

30

Rubber grommet tail light righ

93014049000

$1.49
