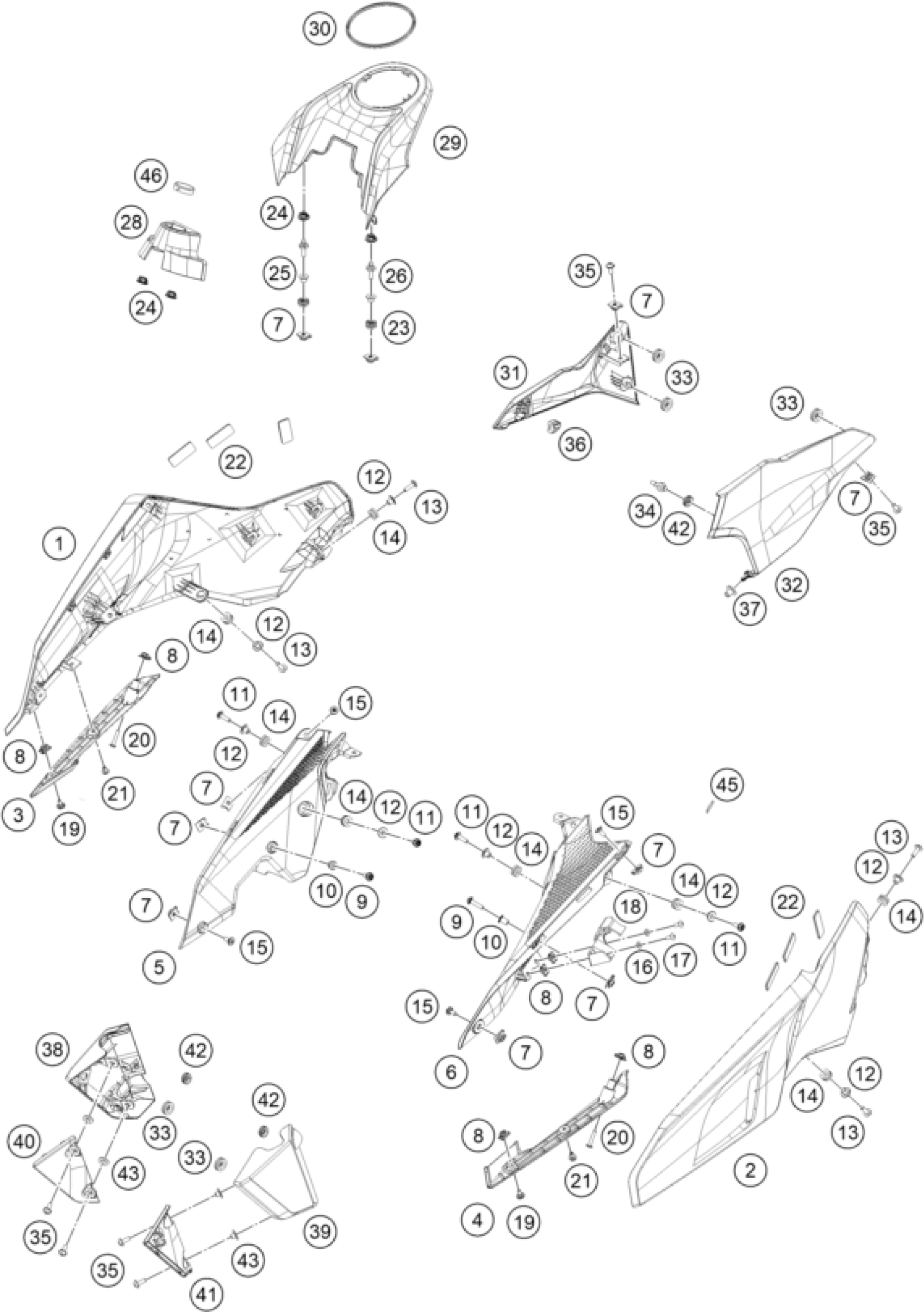

KTM 390 DUKE, orange 2024 COVER Diagram

#

Description

Price

1

SPOILER T RHJP181732 ELE ORG M

96308051000EDA

Unavailable

2

SPOILER T LHJP181731 ELE ORG M

96308050000EDA

Unavailable

29

COVER CAP

96307058000

Unavailable

4

SPOILER TANK BOTTOM LH

96308060000

Unavailable

3

SPOILER TANK BOTTOM RH

96308061000

Unavailable

7

Range change metal nut M6

93008084010

$1.49

14

Rubber bushing

93014017000

$1.49

13

AH SCREW M6X1X20

90508006003

$4.11

8

CLIP NUT M5

90108050001

$2.05

25

bushing fuel tank spoiler

J800000701001

Unavailable

23

grommet

J650001801400

$1.49

30

seal fuel tank cover

96307058010

Unavailable

12

Collar head lamp holder MTG

93014018100

$1.49

16

washer M5x0,8

J690000600102

Unavailable

17

screw truss M5x0.8xl14xcl4.8xb

J900000501405

Unavailable

18

BCCU bracket

96308062010

Unavailable

22

Tank support rubber

95807012020

$1.49

11

socket screw M6x20

J900000602005

Unavailable

15

screw socket step M6x1

J900000601501

Unavailable

26

pin quick release M6

96307064100

Unavailable

24

Rubber grommet ignition lock c

93011068010

$1.49

19

socket screw M5x12,7

J900000501300

Unavailable

10

COLLAR WIND SHIELD

J800000701501

Unavailable

9

screw socket M6x1

J900000602507

Unavailable

28

Ignition lock cover

96311068000

Unavailable

32

COVER SIDE LH JP181737 WITH DE

96308041000C1B

Unavailable

31

COVER SIDE RH JP181738 WITH DE

96308042000C1B

Unavailable

33

GROMMET

J650002201400

$1.49

42

Rubber grommet

J650002001400

$1.49

36

cap

96308042010

Unavailable

34

pin quick release M8

96308077000

Unavailable

37

CAP

J660002001500

Unavailable

35

SPECIAL SCREW M6X1X16

90808043000

$1.49

39

COVER RADIATOR LH DUKE 400 WIT

96335031000C1A

Unavailable

38

COVER RADIATOR RH DUKE 400 WIT

96335032000C1A

Unavailable

41

Radiator inner cover left

96335034000

Unavailable

40

Radiator inner cover right

96335035000

Unavailable

43

bushing radiator cover

J800000600901

Unavailable

6

Fuel tank fairing left

96308062000

Unavailable

5

Fuel tank fairing right

96308063000

Unavailable

20

screw buton HD+collar- M5x8x31

J900000503100

Unavailable

45

SCHAUM

90135065090

Unavailable

21

RIVET

93814050000

$1.49

46

grommet cover switch ignition

96311066010

Unavailable
