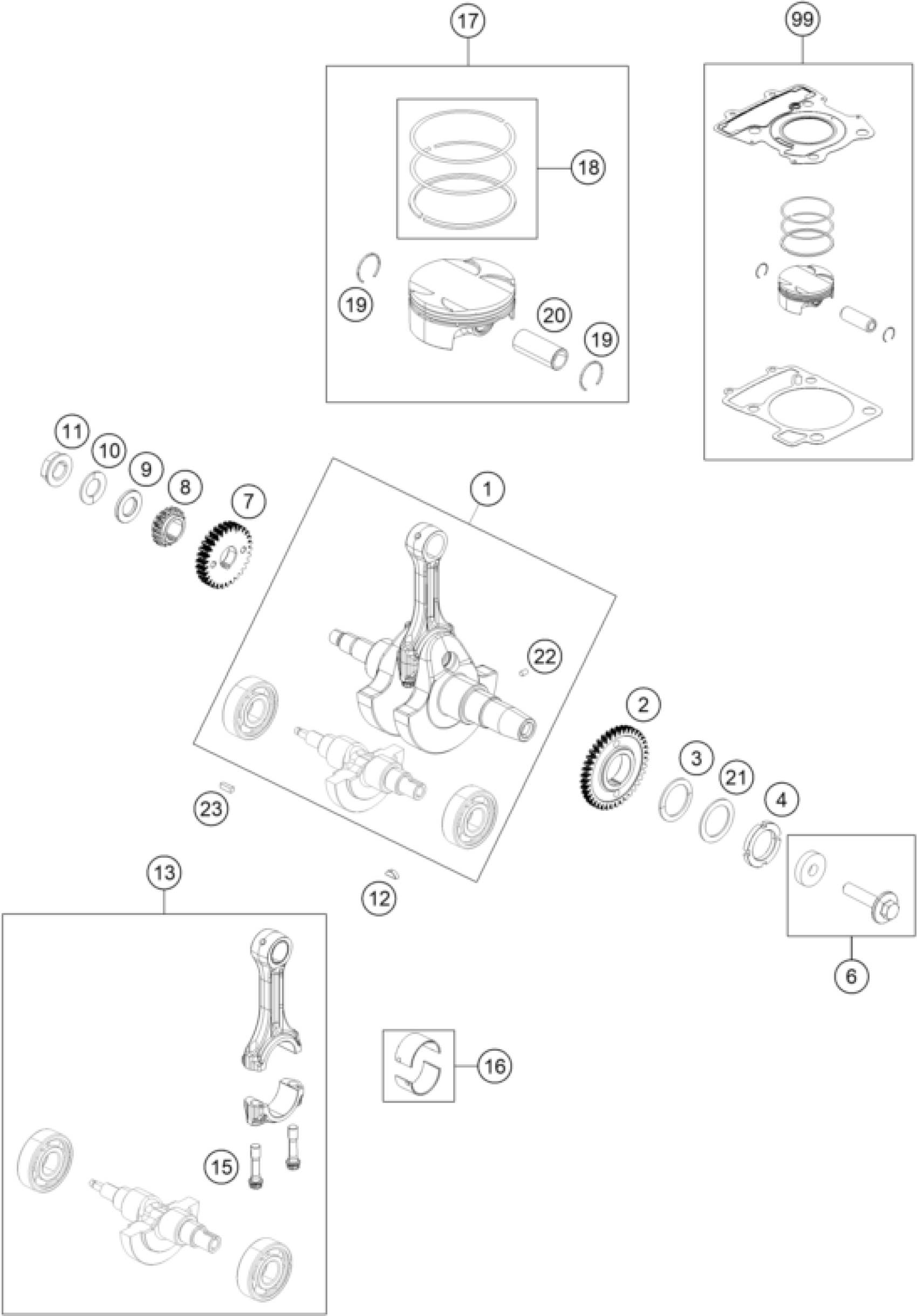

KTM 390 Duke, orange 2020 CRANKSHAFT, PISTON Diagram

#

Description

Price

1

Crankshaft cpl.

94330018044

Unavailable

2

GEAR BALANCER DRIVE

90230055000

$30.66

3

CONICAL WASHER 28,35X38X1,75

90230069000

$2.05

4

NUT FOR DRIVE WHEEL AGW

90130018008

$6.35

6

ROTOR SCREW CPL.

90239005050

$5.41

7

PRIMARY GEAR 30T

90232023030

$40.94

8

SPROCKET CRANKSHAFT

90236014000

$11.96

9

WASHER PLAIN

90236015000

$2.05

10

SPECIAL WASHER

90236015001

$1.49

11

NUT M16X1,5

90230029000

$5.23

12

WOODRUFF KEY 4X5X13

J888040050

$2.05

13

connecting rod cpl.

93830015044

Unavailable

15

BOLT FLANGED M8.5X0.75

J900000903300

$5.23

16

CONROD BEARING SHELL

90230015010

$14.39

16

CONROD BEARING SHELL (GREEN)

90230015011

Unavailable

16

CONROD BEARING SHELL (BLUE)

90230015012

Unavailable

17

PISTON D89

90230007200

$309.66

18

PISTON RINGS CPL.

90230030010

$113.13

19

RING SNAP

90230074000

$4.11

20

PISTON PIN

90230033000

$23.74

21

PLAIN WASHER 28,2X39X1,5

90230068000

$1.49

22

Parallel pin

90134013000

$1.49

23

Woodruff key 4X4X12

J888040150

$2.05

99

PISTON KIT 390 DUKE 2013

90230007010

$316.58
