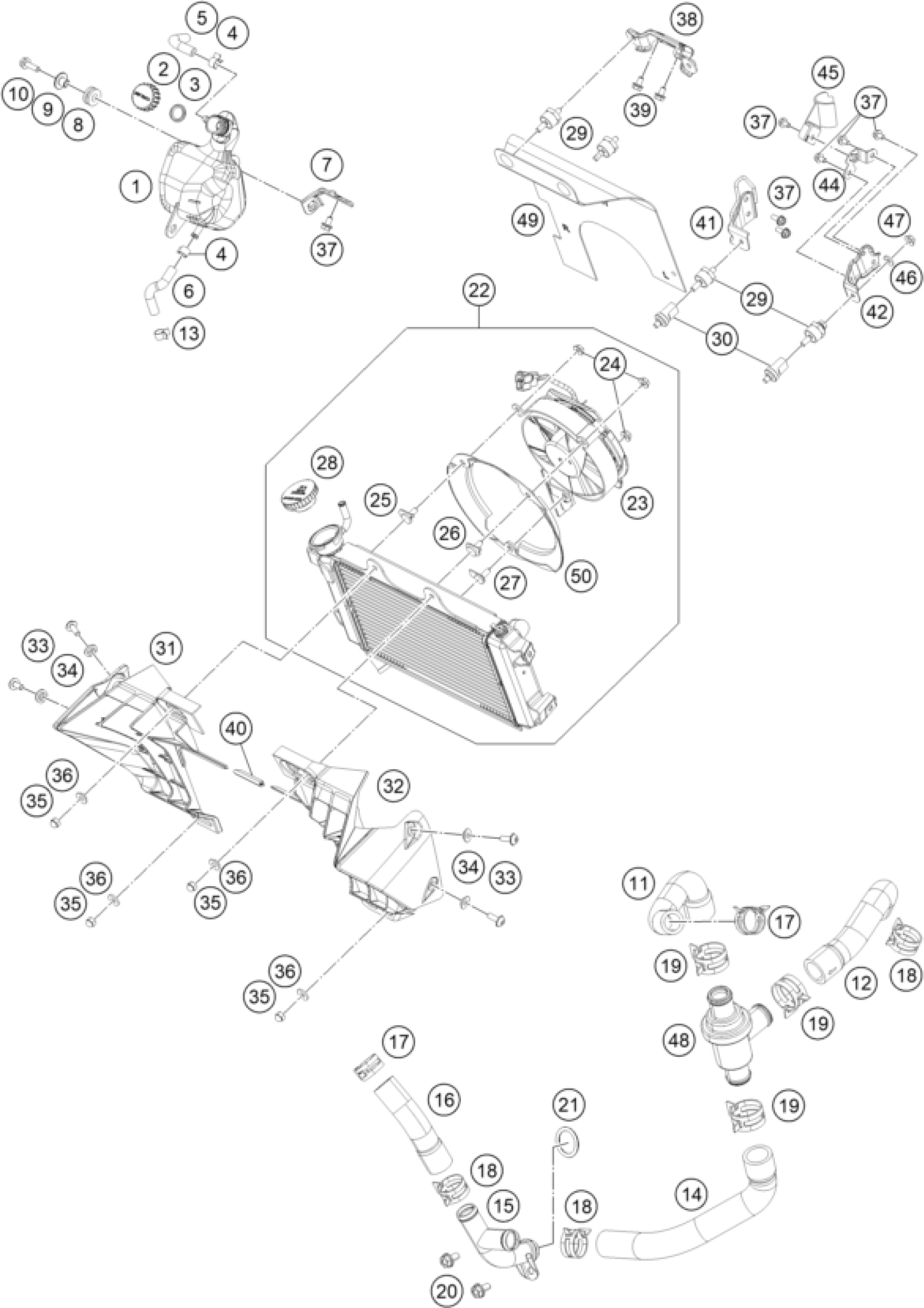

KTM 390 Duke, orange 2020 COOLING SYSTEM Diagram

#

Description

Price

1

water compensation tank

93035065000

$14.86

2

PLUG F. EXPANSION TANK

90135066000

$3.08

3

COMPENSATING TANK O-RING

90102055000

$1.49

4

CLAMP 10MM

90107018011

$2.05

5

HOSE 6X10,5X80 MM

90135067000

$1.49

6

pipe tank expansion-radiator

J600000607200

$1.49

7

Retaining bracket

93035065050

$3.08

8

Rubber bushing

93008028050

$1.49

9

distance sleeve

93035065030

$1.49

10

HH COLLAR SCREW M6X20 SW10

J025060203

$1.49

11

Pre-formed hose

93035024000

$8.13

12

Pre-formed hose

93035025000

$6.63

14

Pre-formed hose

93035026000

$10.09

15

COOLANT PIPE T

90635071033

$31.78

16

pre-formed hose radiator-t-pie

90235024030

$8.41

17

HOSE CLAMP D23

90135020000

$3.08

18

hose clamp D26

90135020001

$3.08

19

HOSE CLAMP D28

90135020003

$3.08

20

Hex collar screw M6X14

J025060141

$1.49

21

O-RING 18,5X3

J770018530

$2.05

22

Radiator assembly

94335010033

$429.34

23

Radiator fan assembly

93535041044

$174.09

24

FLANGED NUT

90835041004

$2.05

25

BRACKET FAN MOUNTING 3

90835041003

$2.05

26

BRACKET FAN MOUNTING 2

90835041002

$2.05

27

BRACKET FAN MOUNTING 1

90835041001

$2.05

28

RADIATOR CAP

90135016100

$17.20

29

SILENTBLOCK M6

93335001000

$4.11

30

Spacer for radiator cover

93035033020

$3.08

31

Radiator fairing right

93035035000

$6.12

32

Radiator fairing left

93035034000

$6.12

33

SPECIAL SCREW M6X1X16

90808043000

$1.49

34

Washer

93035033010

$1.49

35

Cap nut M6

93035003000

$1.49

36

Washer 6.5x16x2

93035044000

$1.49

37

HH COLLAR SCREW M6X10 SW10

J025060103

$1.49

38

Support

93035004000

$3.08

39

Hexagon screw M6X10

J025060101

$1.49

40

Flange

93035009050

$1.49

41

RADIATOR SUPPORT R/S BELOW

90203006001

$4.11

42

RADIATORSUPPORT L/S BELOW

90203005001

$3.08

44

Retaining bracket

93035017060

$1.49

45

THERMOSTAT HALTER

93035017050

$2.05

46

Spring ring M6

J127060006

$1.49

47

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05

48

THERMOSTAT

90135017000

$33.56

49

shield

93005090000

$5.98

13

Spring clip 9.5

J300000801000

$1.49

50

shroud

28135041010

$13.64
