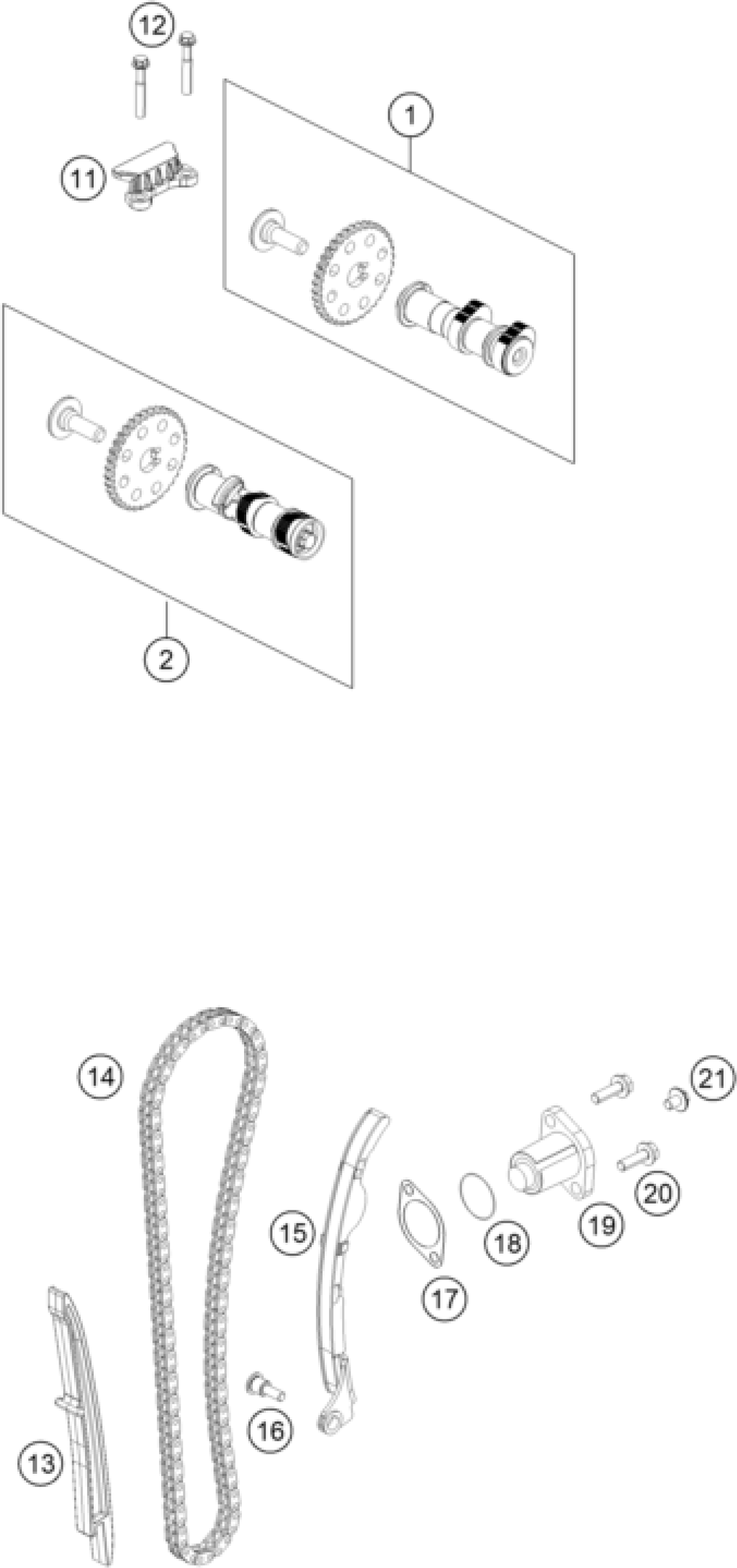

KTM 390 DUKE ORANGE 2017 TIMING DRIVE Diagram

#

Description

Price

1

CAMSHAFT INTAKE CPL.

90836009033

Unavailable

2

CAMSHAFT EXHAUST CPL.

90836010033

Unavailable

11

CHAIN GUIDE TOP

90236018000

Unavailable

12

HH COLLAR SCREW M6X45

J025060453

Unavailable

13

TIMING CHAIN GUIDE

90236001000

Unavailable

14

TIMING CHAIN

90236013000

Unavailable

15

TENSIONER RAIL CPL.

90236002000

Unavailable

16

SCREW TENSIONER RAIL

90236002004

Unavailable

17

GASKET CHAIN ADJUSTER

90136003003

Unavailable

18

O-RING 10,15X1,5

J770010015

Unavailable

19

CHAIN ADJUSTER

90236003044

Unavailable

20

Hex collar screw M6X20

J025060204

Unavailable

21

SPECIAL SCREW 6X6

90136003002

Unavailable
