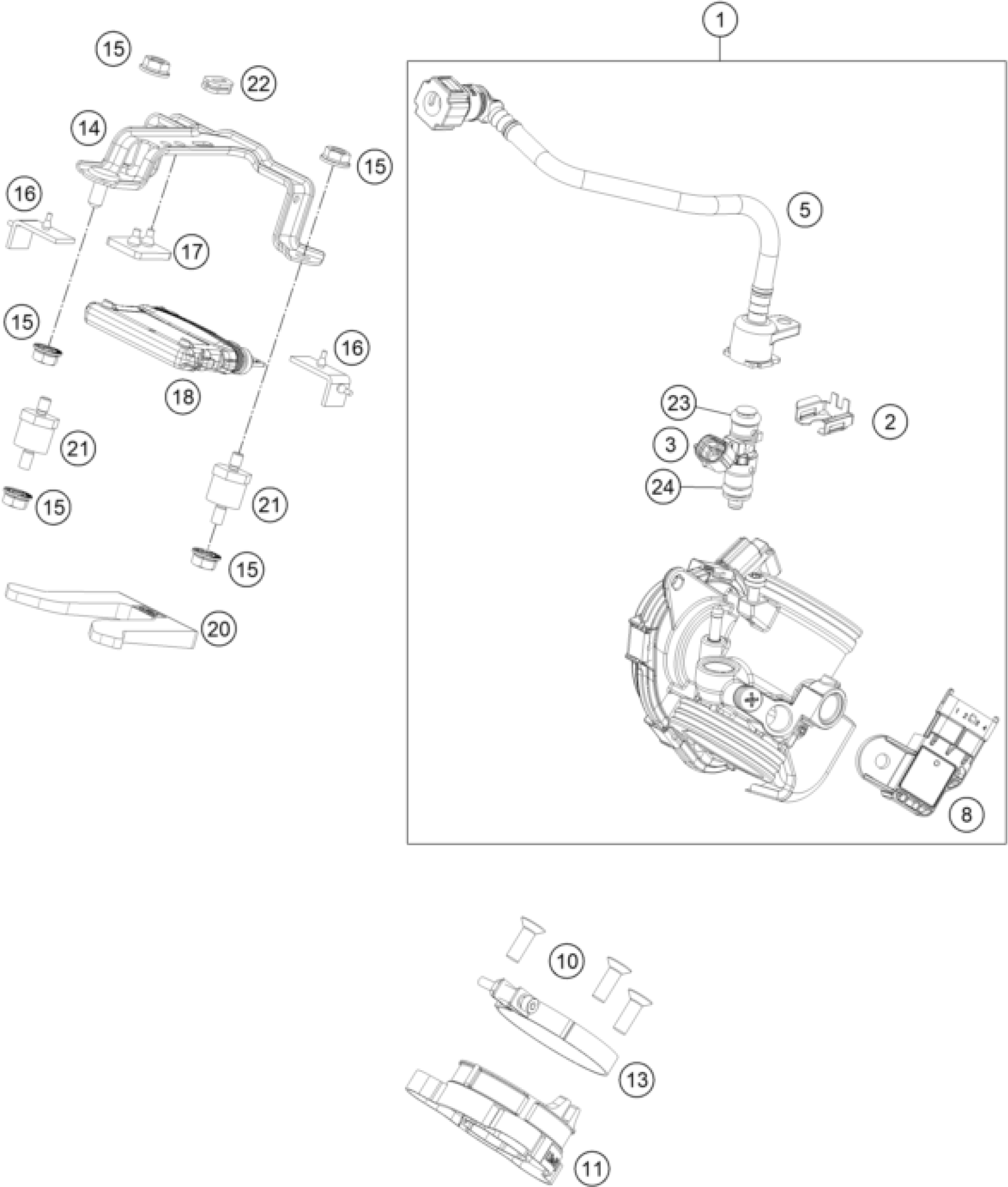

KTM 390 DUKE ORANGE 2017 THROTTLE BODY Diagram

#

Description

Price

2

INJECTOR CLIP

90141001001

Unavailable

8

Pressure sensor

93041085000

Unavailable

10

COUNTERSUNK SCREW M6X20

J991060203S

Unavailable

11

PIPE INTAKE

90241002000

Unavailable

14

ECU Support top

93041030010

Unavailable

15

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

Unavailable

16

rubber band, ECU

93841036000

Unavailable

17

rubber band, ECU, top

93841032000

Unavailable

20

Rubber cowl pad

93041030100

Unavailable

1

Throttle body

93341001000

Unavailable

3

FUEL INJECTOR

90241023000

Unavailable

5

Injector upper part with hose

93341013044

Unavailable

13

hose clamp

90241002010

Unavailable

18

Control unit

93841031000

Unavailable

21

Bump rubber ECU support

93011038000

Unavailable

22

DAMPER ECU

93541034000

Unavailable

23

O-ring

55641023020

Unavailable

24

O-ring

55641023010

Unavailable
