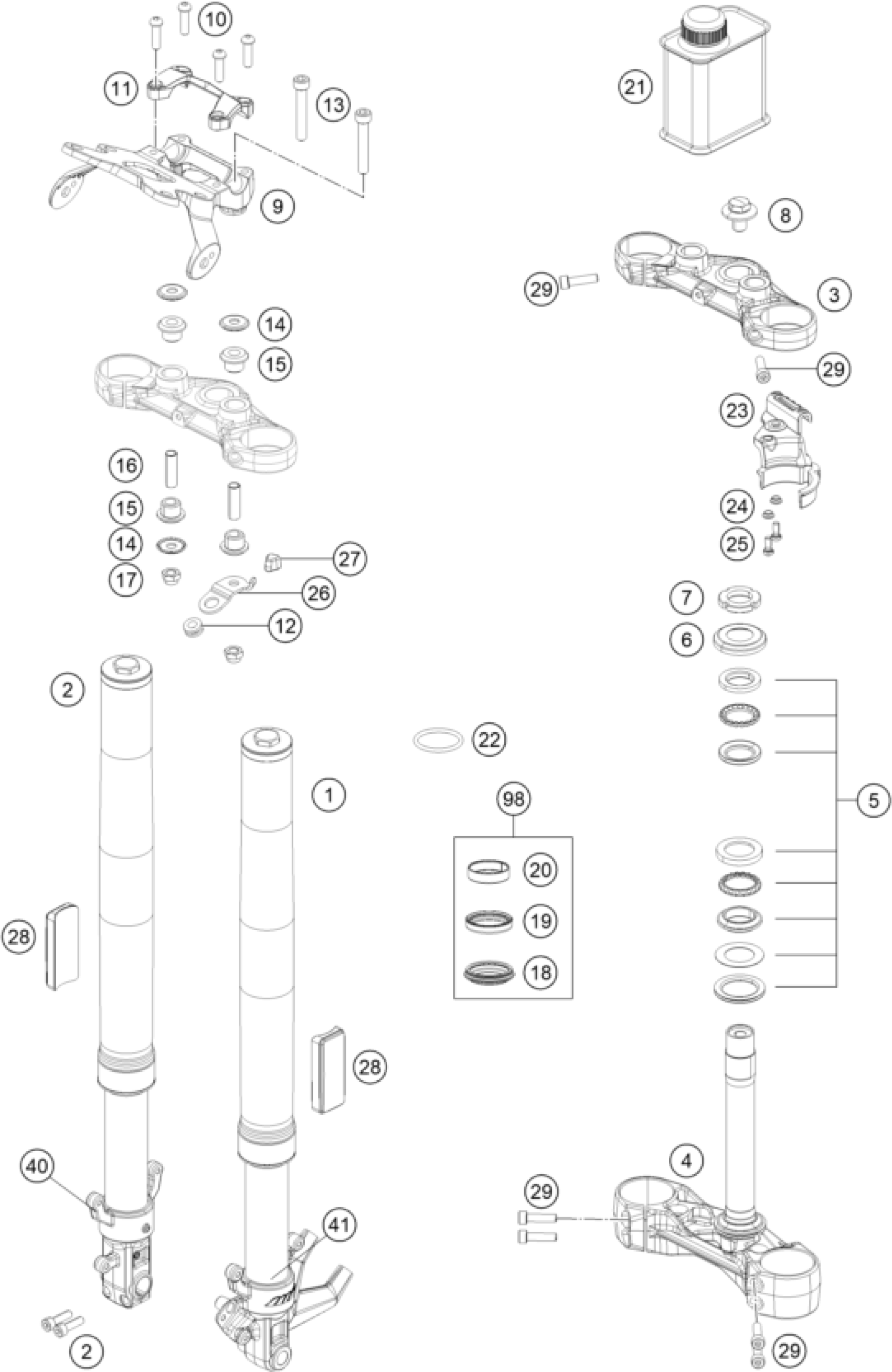

KTM 390 DUKE ORANGE 2017 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

Assembly leg left

93301001100

Unavailable

2

Assembly leg right

93301002100

Unavailable

29

AH SCREW M8X1.25X30

90501045000

Unavailable

3

Upper triple clamp GDC

93001034033

Unavailable

4

assembly lower triple clamp GD

93001032133

Unavailable

5

STEERING HEAD BEARING-KIT

90101080044

Unavailable

6

protection cap

90101086000

Unavailable

7

adjusting ring steering head

90101036000

Unavailable

8

steering head screw

90501044000

Unavailable

9

Holder handsbar CUM TFT speedo

93014064000

Unavailable

10

Bolt socket-M8X1.25Xl 29Xblack

J912080293

Unavailable

11

Handlebar clamp

93001038000

Unavailable

13

hexagon socket screw M10X1.25X

93001044000

Unavailable

14

WASHER 10,5X32X2

90101042000

Unavailable

15

RUBBER BUSHING

90101040000

Unavailable

16

Spacer tube 10.2X12X42

93001041000

Unavailable

17

SELF L. NUT M10X1,25 H11 WS17

J982101253

Unavailable

18

Dirt scarper SKF 43mm black

43570624

Unavailable

19

Shaft seal SKF 43x52,9x11,4 bl

43570623

Unavailable

20

Guide bushing 43x47x12

43570618

Unavailable

21

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

22

O-ring 43x2 NBR70 siliconized

40140024

Unavailable

23

Hose clamp

93013055000

Unavailable

24

sleeve for hose clamp

90113055010

Unavailable

25

AH SCREW M6X15 10.9

J021060156

Unavailable

26

Bracket clutch cable guide

93032059000

Unavailable

28

side reflector, front

90212582001

Unavailable

40

assembly fork pipe rh.

93001007033

Unavailable

41

assembly fork pipe lh.

93001006033

Unavailable

98

REP. KIT FORK KPL.

90101000010

Unavailable

12

Sleeve clutch cable guide

93032060030

Unavailable

27

RUBBER CLUTCH CABLE GUIDE

93032060020

Unavailable
