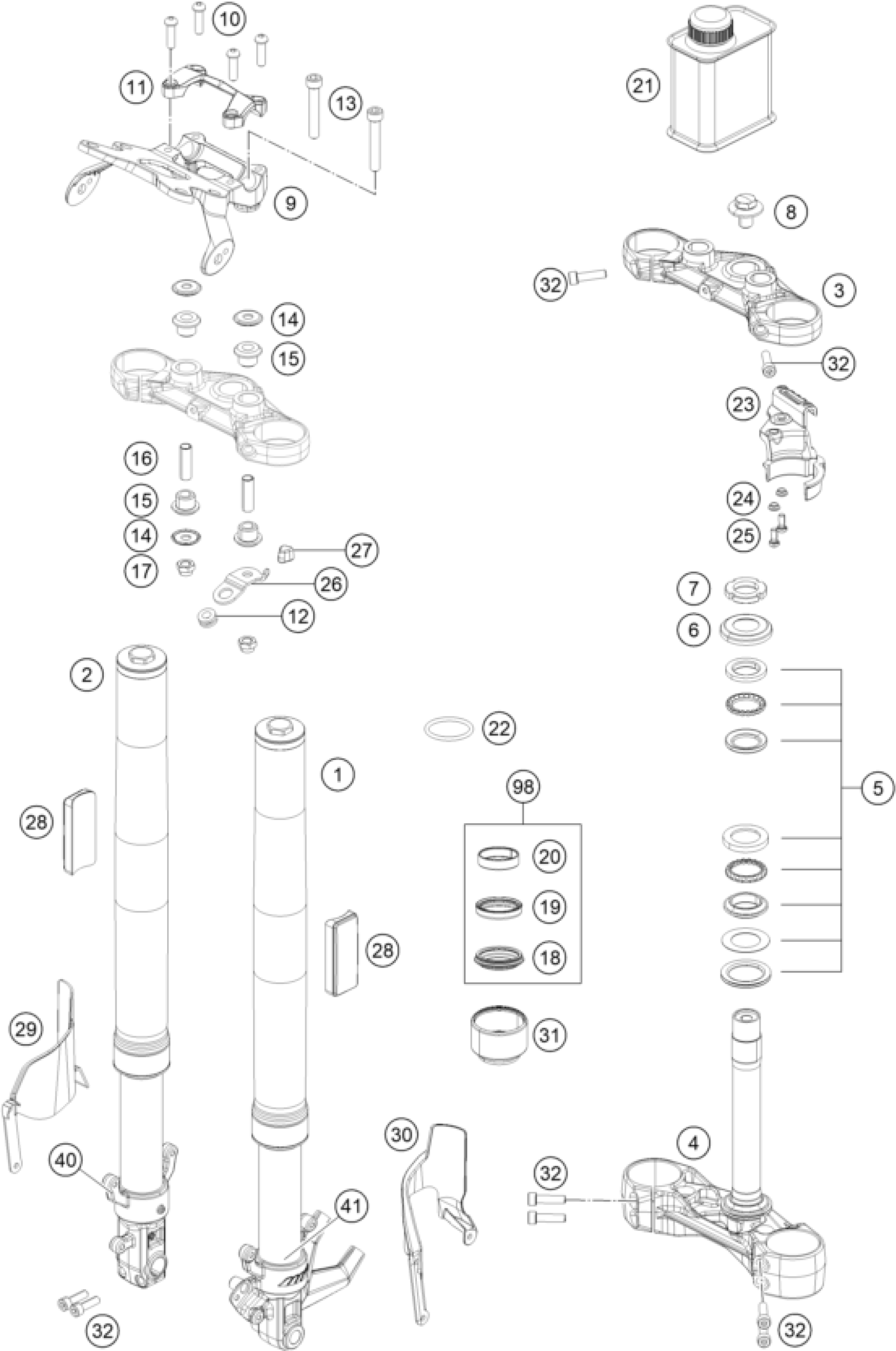

KTM 390 Duke, orange 17 <2017> FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

Fork leg left

93101001000

Unavailable

2

Fork leg right

93101002000

Unavailable

32

BOLT SOCKET M8X1,25X30L

90101031007

$2.05

3

Upper triple clamp GDC

93001034033

$92.56

4

assembly lower triple clamp GD

93001032133

$242.90

5

STEERING HEAD BEARING-KIT

90101080044

$33.65

6

protection cap

90101086000

$3.08

7

adjusting ring steering head

90101036000

$5.88

8

steering head screw

90501044000

$13.92

9

Holder handsbar CUM TFT speedo

93014064000

$43.38

10

Bolt socket-M8X1.25Xl 29Xblack

J912080293

$2.05

11

Handlebar clamp

93001038000

$5.23

12

Sleeve clutch cable guide

93032060030

$1.49

13

hexagon socket screw M10X1.25X

93001044000

$2.05

14

WASHER 10,5X32X2

90101042000

$1.49

15

RUBBER BUSHING

90101040000

$2.05

16

Spacer tube 10.2X12X42

93001041000

$1.49

17

SELF L. NUT M10X1,25 H11 WS17

J982101253

$1.49

18

Dirt scarper SKF 43mm black

43570624

$16.73

19

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

20

Guide bushing 43x47x12

43570618

$11.68

21

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

22

O-ring 43x2 NBR70 siliconized

40140024

$4.11

23

Hose clamp

93013055000

$3.08

24

sleeve for hose clamp

90113055010

$1.49

25

AH SCREW M6X15 10.9

J021060156

$1.49

26

Bracket clutch cable guide

93032059000

$2.05

27

RUBBER CLUTCH CABLE GUIDE

93032060020

$1.49

28

side reflector, front

90212582001

$5.23

29

FORK PROTECTION R/S

90101093000

Unavailable

30

FORK PROTECTION L/S

90101092000

Unavailable

40

assembly fork pipe rh.

93001007033

$235.33

41

assembly fork pipe lh.

93001006033

$287.04

98

REP. KIT FORK KPL.

90101000010

$103.78

31

FORK FRONT DUST COVER

90201025000

$4.11
