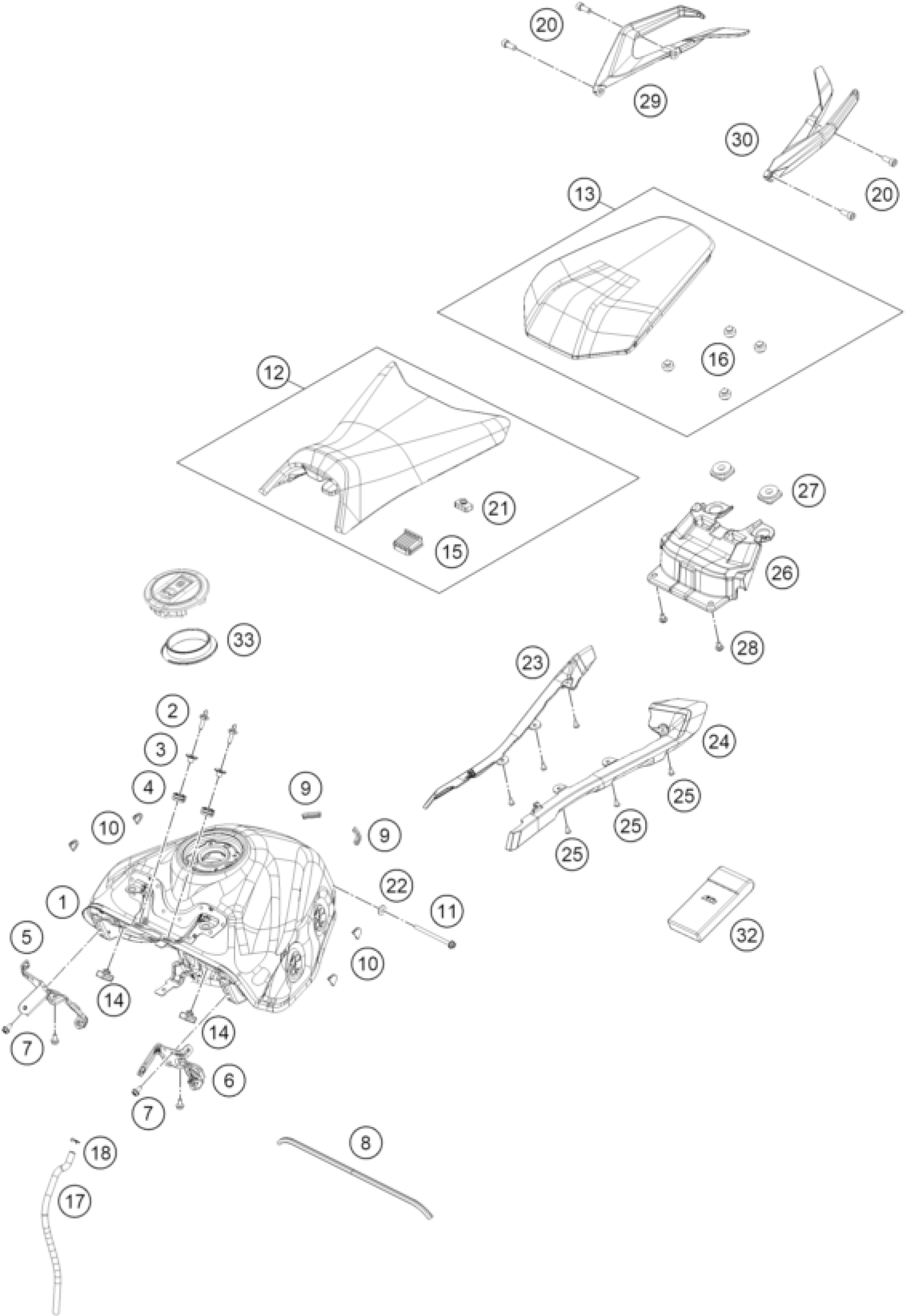

KTM 390 DUKE KTMR2R, orange 2024 TANK, SEAT Diagram

#

Description

Price

1

MY23 TANK FUEL JP171091 ELE OR

96307013000EB

Unavailable

2

pin quick release M6

96307064100

Unavailable

3

distance sleeve

93035065030

$1.49

4

grommet

J650002401800

Unavailable

5

bracket fuel tank spoiler righ

96307013041

Unavailable

6

bracket fuel tank spoiler left

96307013042

Unavailable

7

bolt flanged M6x12

J900000601205

Unavailable

8

beading lower grill central

96307013045

Unavailable

9

beading

96307013046

Unavailable

10

Rubber cap tank

93008059000

$1.49

11

bolt flanged M6x1

J900000609002

Unavailable

12

SEAT RIDER RIDER JP191028 ORA

96307040000EB

Unavailable

13

Pillion seat

96307047000

Unavailable

14

damper

96307013043

Unavailable

15

DAMPER SEAT FRONT

96307040020

Unavailable

16

pillion seat base bobbin

J660002000900

Unavailable

17

drain pipe

96315019000

Unavailable

18

clamp

J310000101100

Unavailable

20

Set screw w.hexagon socket M8x

J900000802200

Unavailable

21

Seat cowl pad

93007040010

$3.08

22

WASHER PLAIN-ID 6XOD 18XTHK 1.

J690000615000

Unavailable

23

SPACER SEAT RH JP191031 ELE OR

96307040070EB

Unavailable

24

SPACER SEAT LH JP191030 ELE OR

96307040080EB

Unavailable

25

SELF TAPPING SCREW K50X12 T20

J081050121

$2.05

26

COWL SEAT MIDDL JP181722 ELE O

96307047040EB

Unavailable

27

grommet

J650003302400

Unavailable

28

Screw M6X1X9

93008020060

$2.05

29

grab handle RH

96312909000C1

Unavailable

30

grab handle LH

96312908000C1

Unavailable

32

Tool set

95829099000

$44.68

33

Fuel tank cap

96307008020

Unavailable
