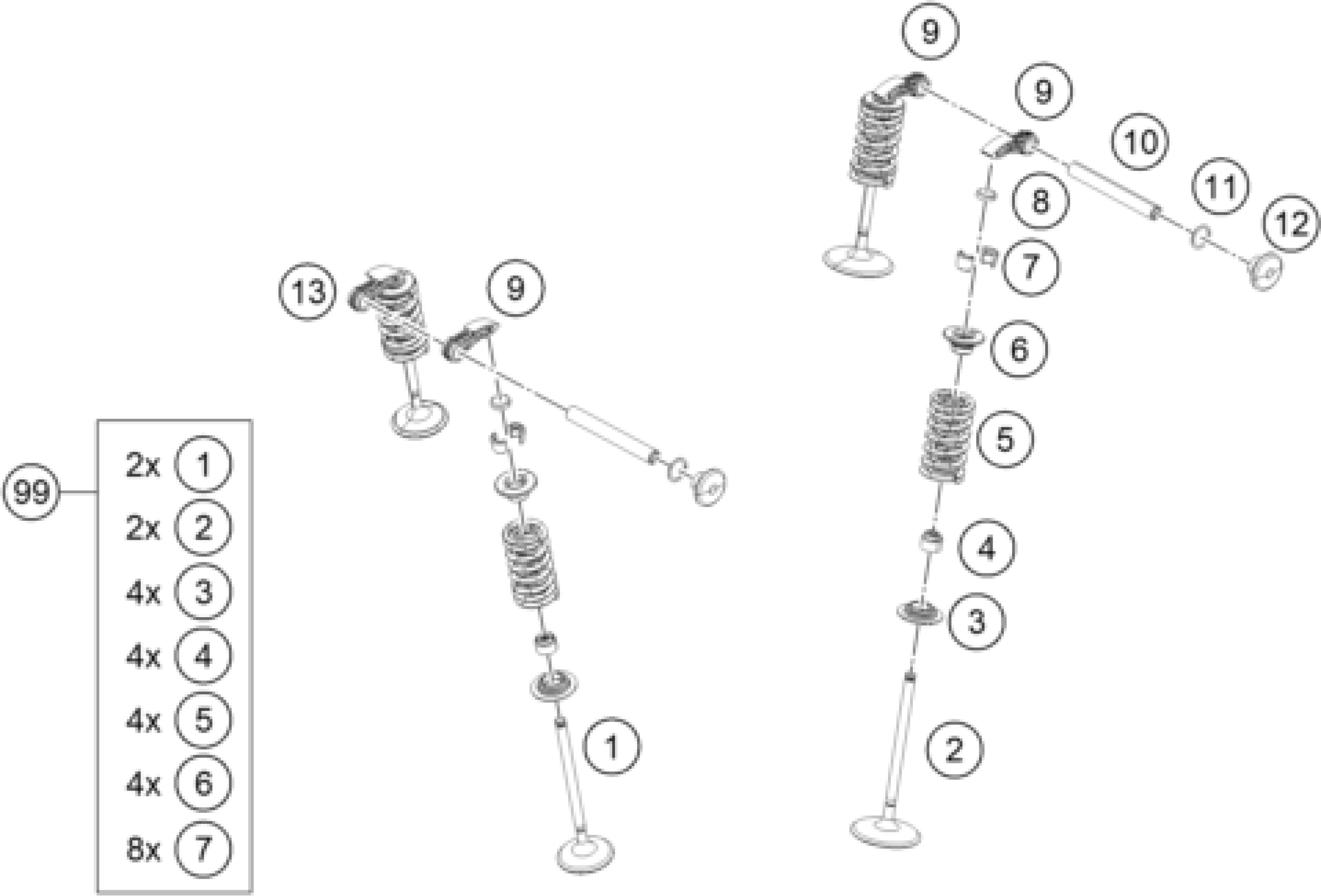

KTM 390 DUKE KTMR2R, blue 2024 VALVE DRIVE Diagram

#

Description

Price

1

Exhaust valve

93836031000

$24.86

2

INTAKE VALVE

90236030000

$17.38

3

valve spring washer

90236036000

$3.08

4

valve stem seal

90236027000

$5.23

5

VALVE SPRING SET

90236028010

$7.56

6

VALVE SPRING RETAINER

90236032000

$3.08

7

VALVE COLLET

90236033000

$1.49

8

SHIM D=10/1,85 03

60036035185

Unavailable

8

SHIM D=10/1,90 03

60036035190

Unavailable

8

SHIM D=10/1,95 03

60036035195

Unavailable

8

SHIM D=10/2,00 03

60036035200

Unavailable

8

SHIM D=10/2,05 03

60036035205

Unavailable

8

SHIM D=10/2,10 03

60036035210

Unavailable

8

SHIM D=10/2,15 03

60036035215

Unavailable

8

SHIM D=10/2,20 03

60036035220

Unavailable

8

SHIM D=10/2,25 03

60036035225

Unavailable

8

SHIM D=10/2,30 03

60036035230

Unavailable

8

SHIM D=10/2,35 03

60036035235

Unavailable

8

SHIM D=10/2,40 03

60036035240

Unavailable

8

SHIM D=10/2,45 03

60036035245

Unavailable

8

SHIM D=10/2,50 03

60036035250

Unavailable

8

SHIM D=10/2,55 03

60036035255

Unavailable

8

SHIM D=10/2,60 03

60036035260

Unavailable

8

SHIM D=10/2,65 03

60036035265

Unavailable

8

SHIM D=10/2,70 03

60036035270

Unavailable

8

SHIM D=10/2,75 03

60036035275

Unavailable

8

SHIM D=10/2,80 03

60036035280

Unavailable

8

SHIM D=10/2,85 03

60036035285

Unavailable

8

SHIM D=10/2,90 03

60036035290

Unavailable

8

SHIM D=10/2,95 03

60036035295

Unavailable

8

SHIM D=10/3,00 03

60036035300

Unavailable

8

SHIM D=10/3,05 03

60036035305

Unavailable

8

SHIM D=10/3,10 03

60036035310

Unavailable

8

SHIM D=10/3,15 03

60036035315

Unavailable

8

SHIM D=10/3,20 03

60036035320

Unavailable

8

SHIM D=10/3,3

60036035330

Unavailable

9

cam follower

90136060000

$59.08

99

VALVE KIT 390 DUKE

90236030010

Unavailable

10

VALVE LEVER SHAFT

90236056000

$4.11

11

O-RING 10,3X1,2 MM

J770010312

$2.05

12

SCREW PLUG

90136056001

$5.23

13

VALVE LEVER

90236060000

$52.16
