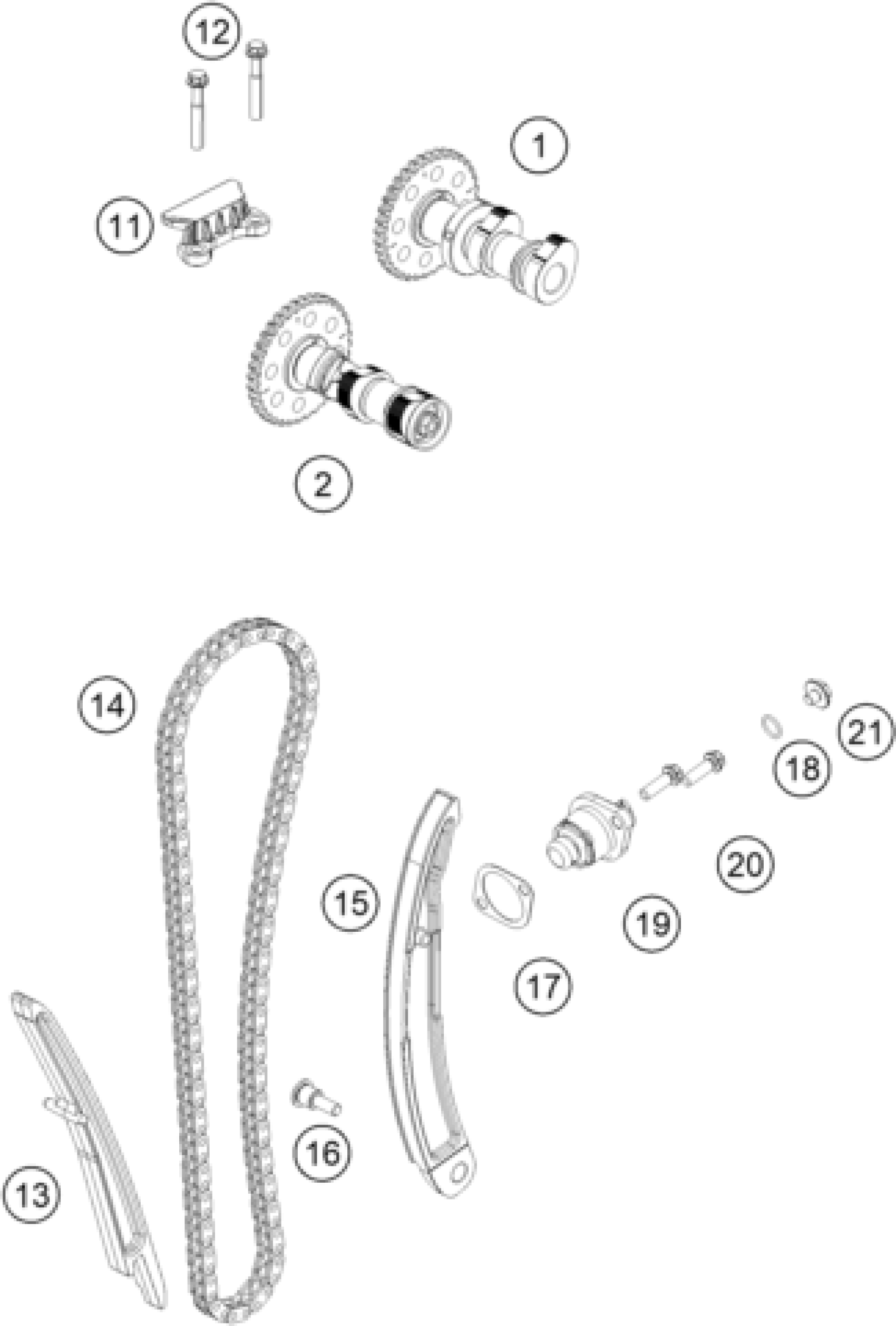

KTM 390 DUKE KTMR2R, blue 2024 TIMING DRIVE Diagram

#

Description

Price

1

CAMSHAFT ASSEMBLY INTAKE

96336009033

Unavailable

2

CAMSHAFT ASSEMBLY EXHAUST

96336010033

Unavailable

11

BRACKET GUIDE CHAIN TOP

96336004000

Unavailable

12

HH COLLAR SCREW M6X45

J025060453

Unavailable

13

GUIDE CHAIN TIGHT SIDE

96336001000

Unavailable

14

CHAIN

96336013000

Unavailable

15

GUIDE CHAIN SLACK SIDE

96336002033

Unavailable

16

SPECIAL SCREW 6X14,9

90130004007

Unavailable

17

GASKET CHAIN ADJUSTER

90136003003

Unavailable

18

O-RING 10,15X1,5

J770010015

Unavailable

19

TENSIONER CHAIN

96336003044

Unavailable

20

Hex collar screw M6X20

J025060204

Unavailable

21

SPECIAL SCREW 6X6

90136003002

Unavailable
