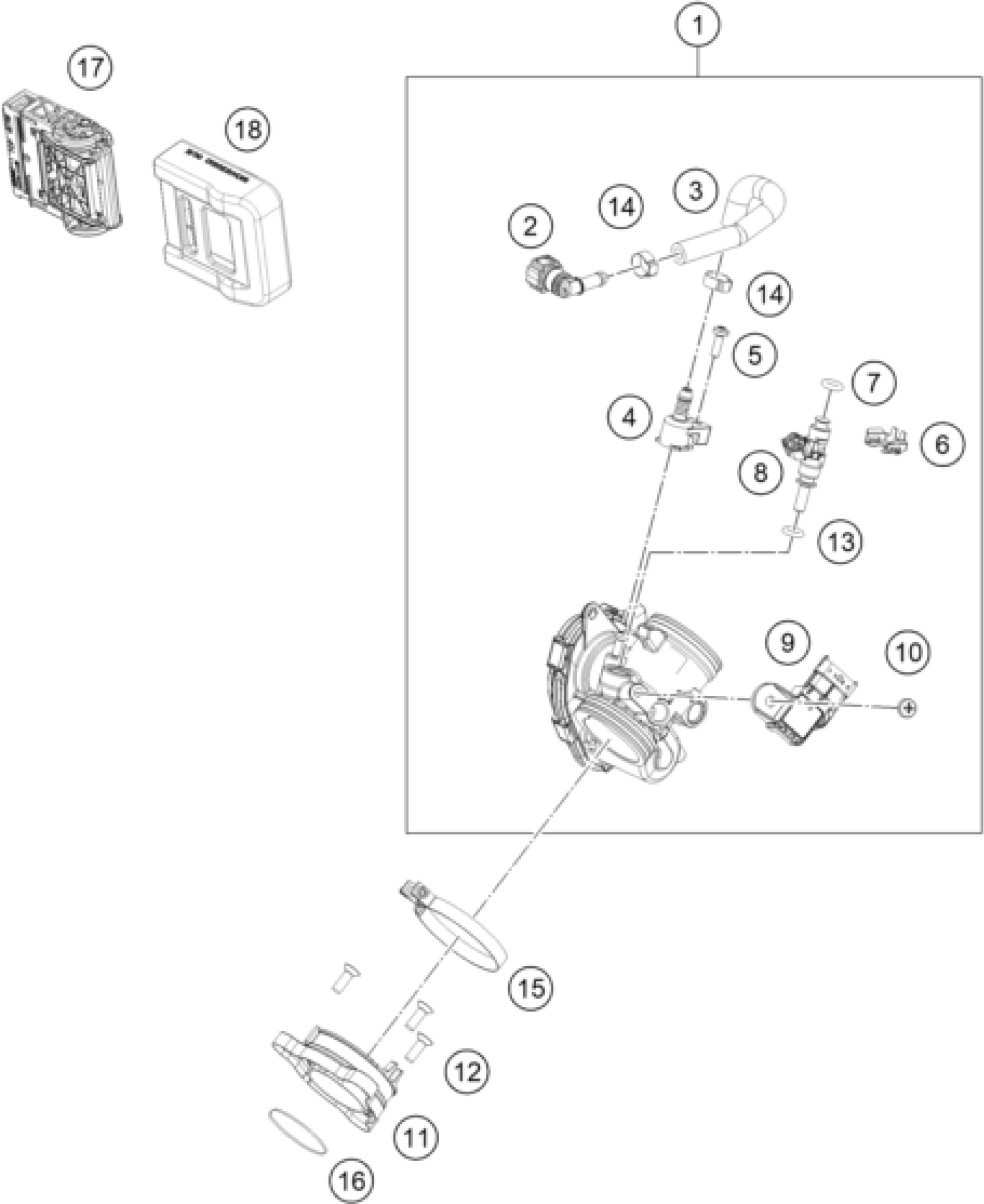

KTM 390 DUKE KTMR2R, blue 2024 THROTTLE BODY Diagram

#

Description

Price

1

BODY THROTTLE ASSEMBLY

96341001033

Unavailable

8

Injector

96341023000

Unavailable

6

INJECTOR CLIP

90141001001

Unavailable

3

fuel pipe

96307016000

Unavailable

4

Connecting piece, fuel line

95841037000

Unavailable

2

Angle piece

28107028000

Unavailable

9

Pressure sensor

93041085000

Unavailable

10

SPECIAL SCREW M6X14

90141071001

Unavailable

7

O-ring

55641023020

Unavailable

13

O-ring

55641023010

Unavailable

5

SPECIAL SCREW M5X12

90141023005

Unavailable

14

clamp quick connector end perm

00050148706

Unavailable

15

hose clamp

90241002010

Unavailable

11

PIPE INTAKE

96336044000

Unavailable

12

COUNTERSUNK SCREW M6X20

J991060203S

Unavailable

16

O-RING 53X2,4

J770053024

Unavailable

17

ECU EMS

96341031000

Unavailable

18

HOLDER ECU

96341030000

Unavailable
