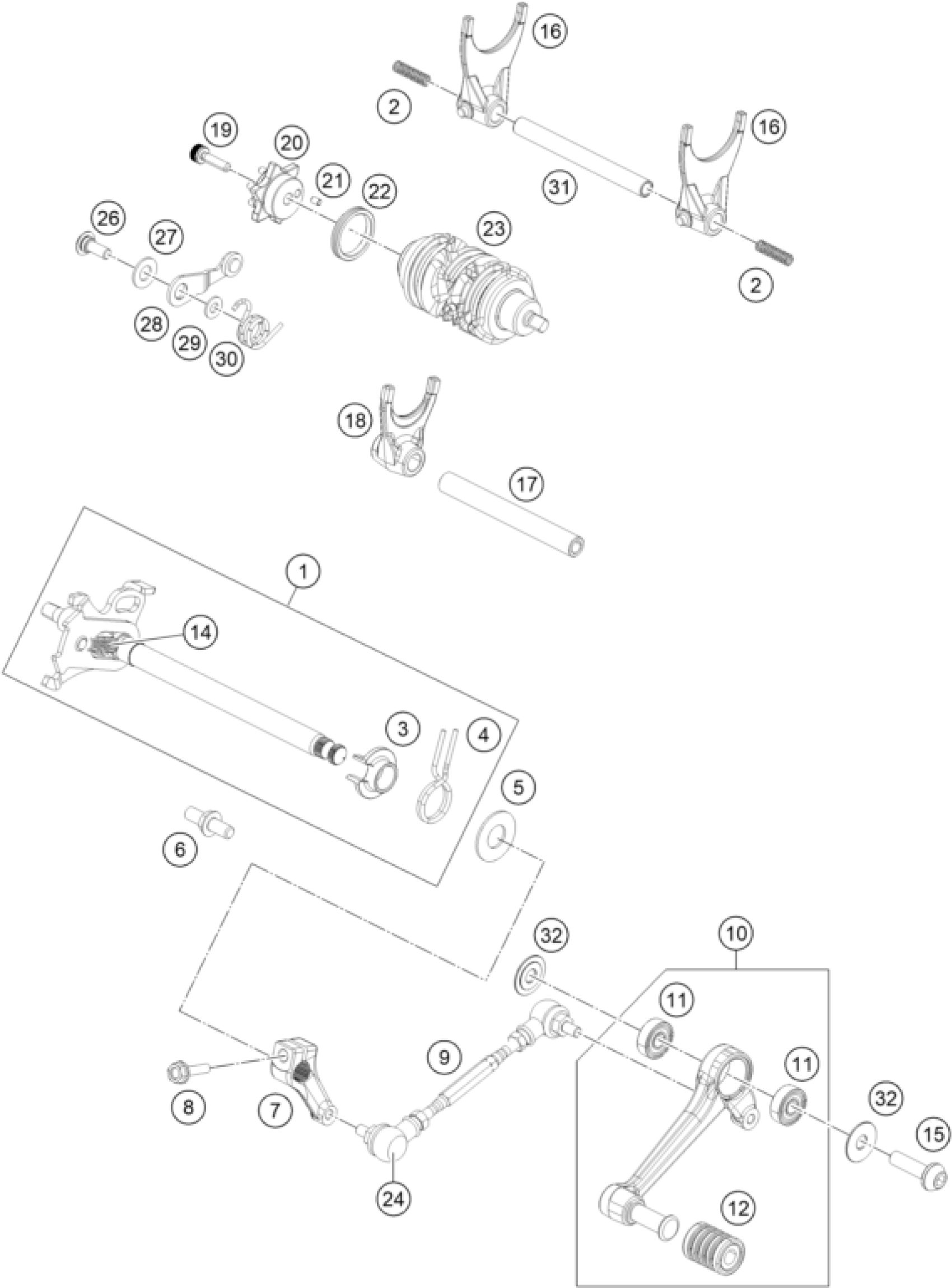

KTM 390 DUKE KTMR2R, blue 2024 SHIFTING MECHANISM Diagram

#

Description

Price

1

assembly lever gear shift

96334005033

Unavailable

3

SPRING BUSHING

90134022000

Unavailable

4

spring torsion

96334014000

Unavailable

5

STOP DISK 14X30X1,5

90134050000

Unavailable

6

SPRING GUIDE

90134016000

Unavailable

7

linkage gear shift lever

96034031010

Unavailable

8

Bolt-Flange-Kad ST-D DIA-06 L-

J025060221

Unavailable

9

shifting rod assembly

96334036033

Unavailable

10

gear lever assembly

96334031033

Unavailable

11

BALL BEARING 608

J625060800

Unavailable

12

GEAR SHIFT LEVER RUBBER

90134035000

Unavailable

16

fork gear shift output

96334002000

Unavailable

17

SHIFT RAIL

90234019000

Unavailable

18

fork gear shift input

96334001000

Unavailable

19

SOCKET HEAD SCREW M6X20

90130001001

Unavailable

20

Detent

94334015000

Unavailable

21

Parallel pin

90134013000

Unavailable

22

SPACER

90134012002

Unavailable

23

drum gear shift

96334012000

Unavailable

26

SCREW LOCKING LEVER

90134025000

Unavailable

27

WASHER LOCKING LEVER

90134030000

Unavailable

28

LOCKING LEVER CPL.

90134024033

Unavailable

29

Washer, 6x14x1.2

J125061416

Unavailable

30

spring torsion

96334023000

Unavailable

31

Gear shift rail

93834020000

Unavailable

32

WASHER SHIFTING LEVER

90534031020

Unavailable

14

TENSION SPRING

90134009000

Unavailable

2

SPRING SHIFT RAIL

90234039000

Unavailable

24

cover dust tie rod

93003044000

Unavailable

15

BOLT SHIFT LEVER

90534034300

Unavailable
