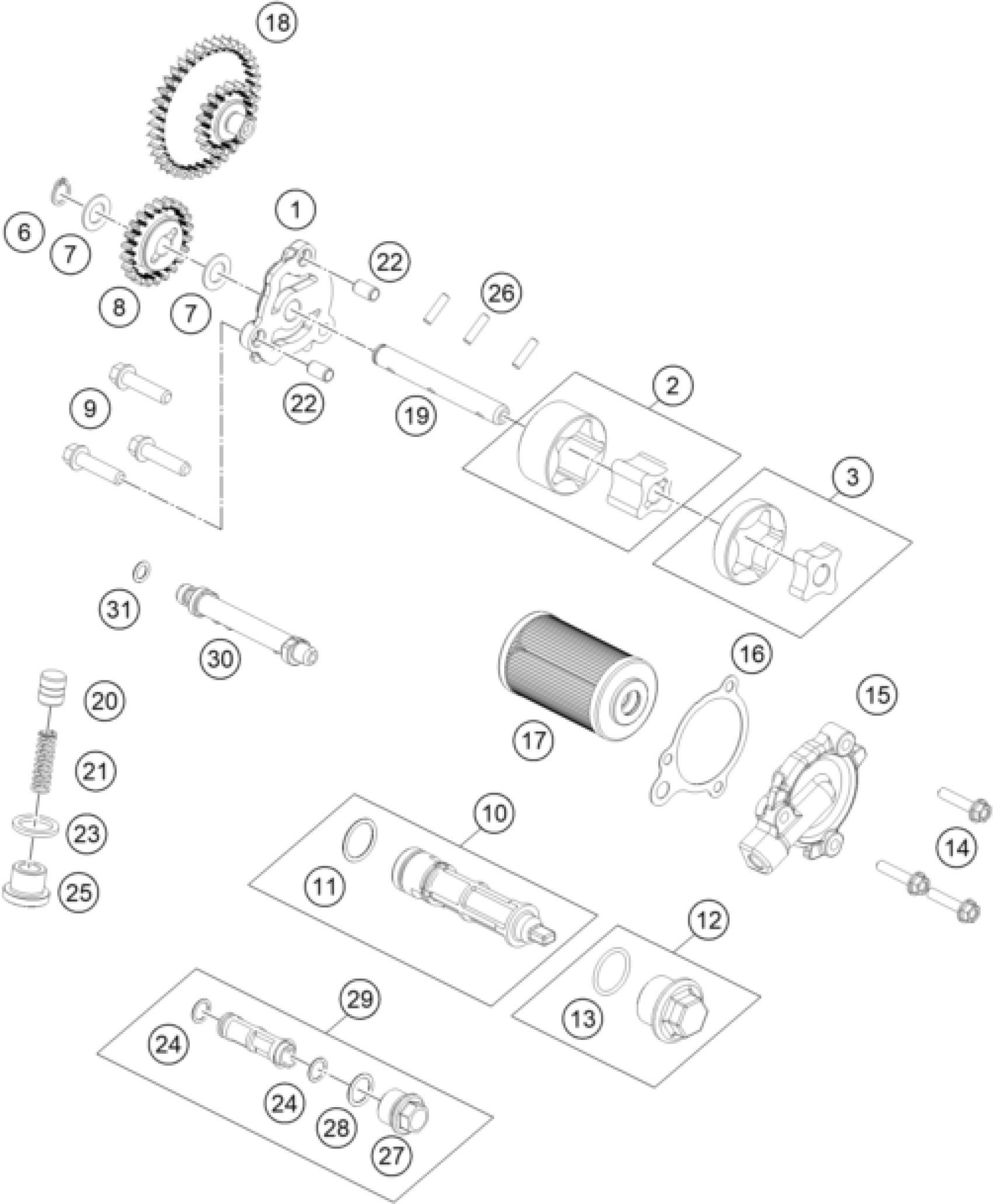

KTM 390 DUKE KTMR2R, blue 2024 LUBRICATING SYSTEM Diagram

#

Description

Price

1

cover pump evacuation

96338008000

Unavailable

6

Seeger ring 10X1,0

J471010100

Unavailable

7

WASHER 10,2X18X1

J125100006

Unavailable

8

gear pump oil driven

96338001000

Unavailable

9

Hexagonal bolt M6x25

J900000602511

Unavailable

10

MESH STRAINER CPL.

90238015033

Unavailable

11

O-RING 17,7X2,1 MM

J770017721

Unavailable

12

CLOSURE CAP OIL SCREEN

90138015050

Unavailable

13

O-RING

90138015052

Unavailable

14

BOLT FLANGED M6X1

J900000602510

Unavailable

15

KT26 CAP ASSEMBLY FILTER OIL (

9633804100024

Unavailable

16

Oil filter cover gasket

96338041010

Unavailable

17

OIL FILTER

90138015000

Unavailable

18

gear pump oil intermediate

96338006000

Unavailable

19

shaft pump oil

96338002000

Unavailable

22

Dowel 8x6.3x10

J800000601002

Unavailable

24

O-RING 9X1,5

J7700090151

Unavailable

26

PARALLEL PIN

90238003000

Unavailable

27

CAP STRAINER

90238017000

Unavailable

28

O-RING 12,5X2

J770012520

Unavailable

2

KT26 Evacuation Inner/Outer as

96338009000

Unavailable

3

KT26 Oil Pump Inner/Outer asse

96338011000

Unavailable

29

MESH STRAINER CPL.

90238016044

Unavailable

25

bolt socket M16x1.5

J900001601200

Unavailable

21

spring oil pump prv k16b ug

96338026000

Unavailable

20

piston valve pressure relief

96338028000

Unavailable

23

RING - SEALING

J780001602200

Unavailable

30

rail oil

96330065000

Unavailable

31

O Ring

J770000719000

Unavailable
