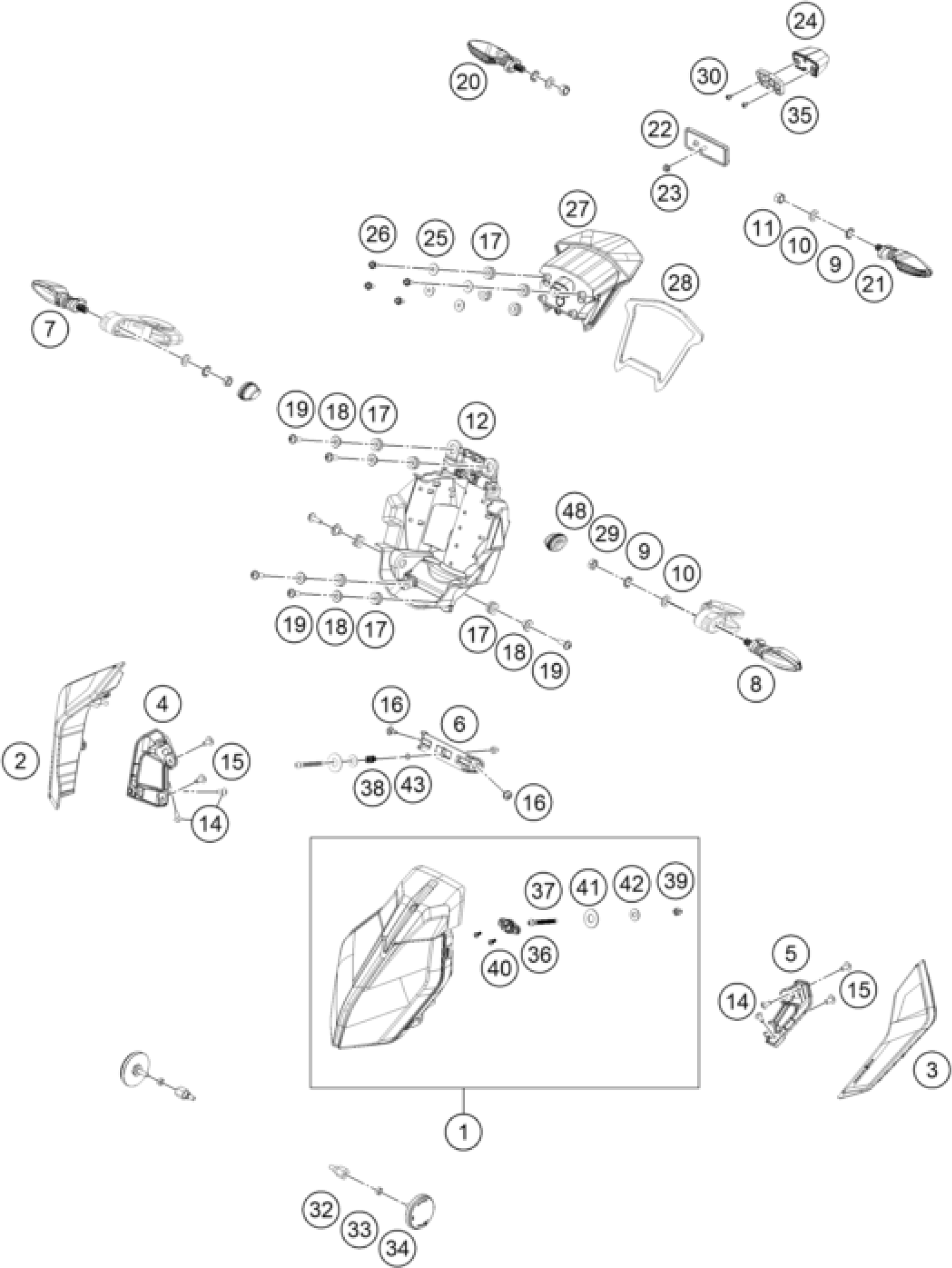

KTM 390 DUKE KTMR2R, blue 2024 LIGHTING SYSTEM Diagram

#

Description

Price

1

Headlight

96314001000

Unavailable

2

Position light right

96311004030

Unavailable

3

Position light left

96311004040

Unavailable

4

position light holder right

96314004010

Unavailable

5

position light holder Left

96314004020

Unavailable

6

headlight adjuster plate

96314002000

Unavailable

7

Indicator front rh

93014026000

Unavailable

8

Indicator front lh

93014025000

Unavailable

9

Toothed washer, M10

J06797100183

Unavailable

10

Washer M10

J125100009

Unavailable

11

Nut hex M10x1.25

J910001000800

Unavailable

12

Headlight carrier front

96314010000

Unavailable

14

Linsenkopf-Schraube M5x12

J900000501202

Unavailable

15

Roundhead screw, M6x12

J900000601204

Unavailable

16

Screw button head step M5x6.5

J900000500900

Unavailable

17

Rubber bushing

93014017000

Unavailable

18

Collar head lamp holder MTG

93014018100

Unavailable

19

AH oval head screw M6x19

J900000601900

Unavailable

20

FLASHER CPL. RE. R/S

90114025000

Unavailable

21

FLASHER CPL. RE. L/S

90114026000

Unavailable

22

REFLECTOR REFLEX

96314045000

Unavailable

23

nut hex flanged M5x0.8

J910000501100

Unavailable

24

License plate lighting

28114047000

Unavailable

25

Washer, license plate holder s

93308015010

Unavailable

26

HH-COLLAR SCREW M5X12

J025050126

Unavailable

27

Rear Light

96314040000

Unavailable

28

rubber support taillight

96314043000

Unavailable

29

Nut hex thin-M10x1.25

J934100006

Unavailable

30

Oval head screw M4,2x22

J981042226

Unavailable

32

Reflector holder

94512082010

Unavailable

33

NUT HEX THICK

J910000600505

Unavailable

34

Side reflector

94512082000

Unavailable

35

Spacer license plate lighting

90114047010

Unavailable

40

Screw M4X14

93014024110

Unavailable

36

bush

93014024100

Unavailable

38

Spring 1 x 8.5 x 30

93014001010

Unavailable

39

Dome nut (m6x1)

J910000601200

Unavailable

37

Aiming bolt (m6)

J900000605400

Unavailable

41

Washer plain

J690001210000

Unavailable

42

Washer plain

J690000710001

Unavailable

43

washer plain-ID 6.2XOD 9.5XTHK

J125062006

Unavailable

48

GROMMET INDICATOR

96314025010

Unavailable
