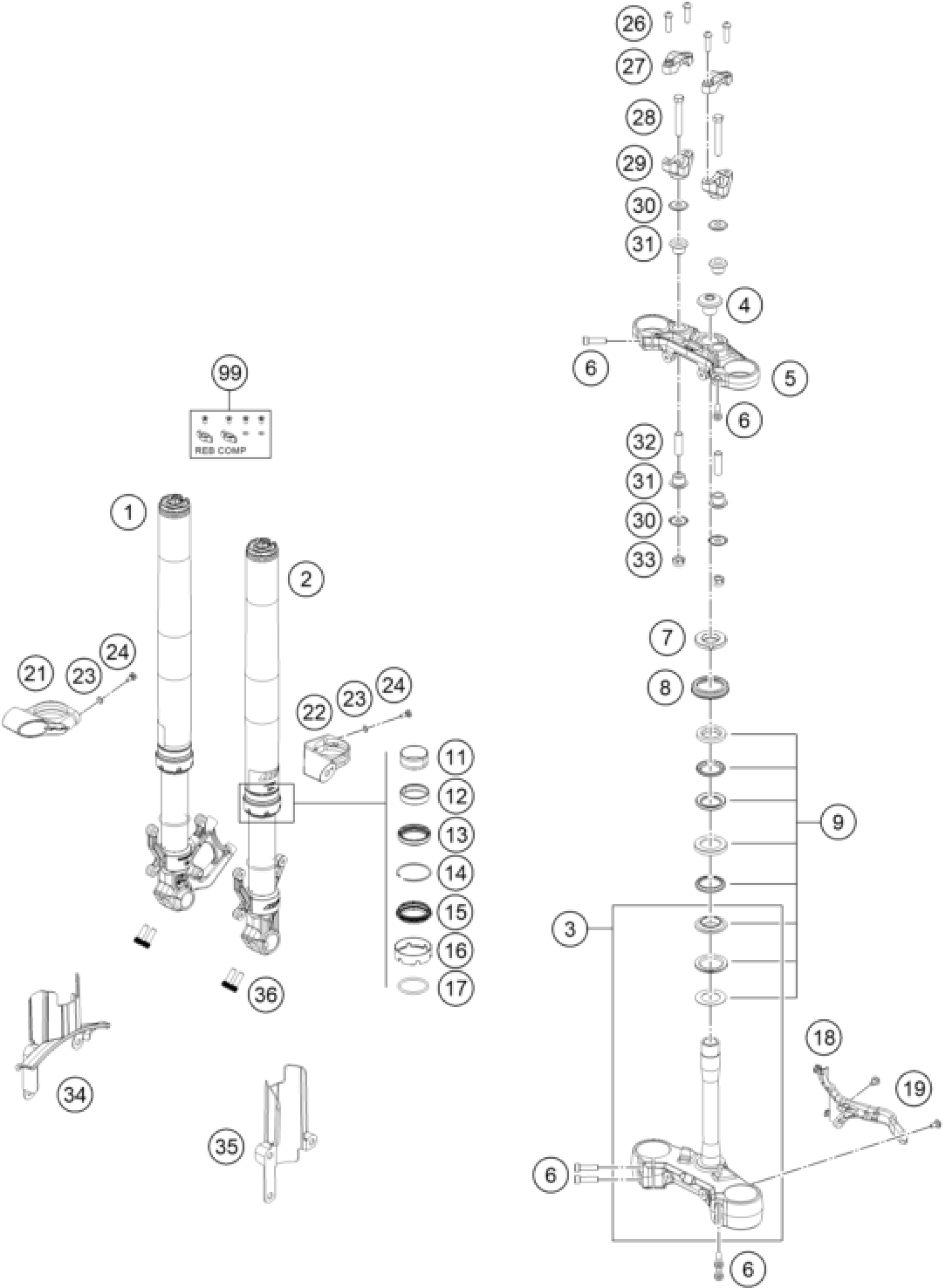

KTM 390 DUKE KTMR2R, blue 2024 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

fork leg assembly right

96301002000

Unavailable

2

fork leg assembly left

96301001000

Unavailable

3

BRACKET ASSEMBLY UNDER

96301031032C1

Unavailable

4

screw socket M22x1.5

J900002202000

Unavailable

5

BRACKET UPPER JP151052 BLCK MT

96301034032C1

Unavailable

6

AH SCREW M8X1.25X30

90501045000

Unavailable

7

Adjusting ring steering head

90101036100

Unavailable

8

protection cap

90101086000

Unavailable

9

STEERING HEAD BEARING-KIT

90101080044

Unavailable

11

GUIDE BUSH UPPER

43578016

Unavailable

12

GUIDE BUSH LOWER

43578014

Unavailable

13

Shaft seal SKF 43x52,9x11,4 bl

43570623

Unavailable

14

CIRCLIP

43578044

Unavailable

15

Dirt scarper SKF 43mm red

43570723

Unavailable

16

Fork protection ring d43

43578206

Unavailable

17

O-ring 40x2,5 VMQ70 red ISO 36

43578219

Unavailable

18

Brake hose guide

96313025000

Unavailable

19

Screw M6X1X9

93008020060

Unavailable

21

indicator holder front right

96314033000

Unavailable

22

indicator holder front left

96314034000

Unavailable

23

WASHER PLAIN-ID7.5XOD11.5XT1XB

J125070002

Unavailable

24

screw button head step M5x0.8

J900000501500

Unavailable

26

Bolt socket-M8X1.25Xl 29Xblack

J912080293

Unavailable

27

HANDLE HOLDR UPPR JG151043 PC

95801038000C1

Unavailable

28

bolt M10x65

J900001006500

Unavailable

29

HB HOLDR DUKE JP151073 BLK MT

96301039000C1

Unavailable

30

WASHER 10,5X32X2

90101042000

Unavailable

31

RUBBER BUSHING

90101040000

Unavailable

32

SPACER TUBE

90101041000

Unavailable

33

SELF L. NUT M10X1,25 H11 WS17

J982101253

Unavailable

99

Adjuster kit screw cap

RP10021

Unavailable

35

Fork protector left

96301092000

Unavailable

34

Fork protector right

96301093000

Unavailable

36

bolt socket M8x1.25

J900000802503

Unavailable
