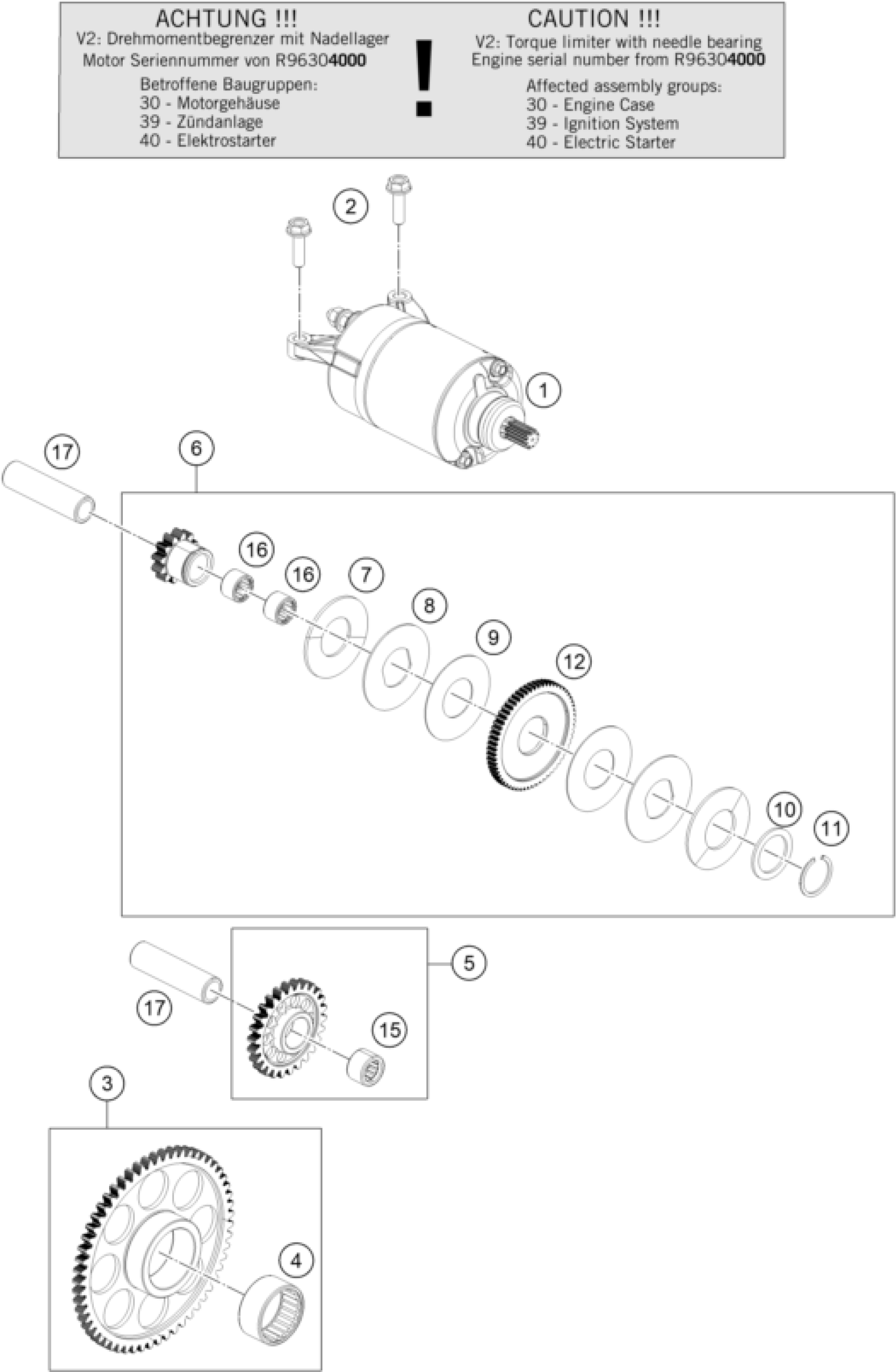

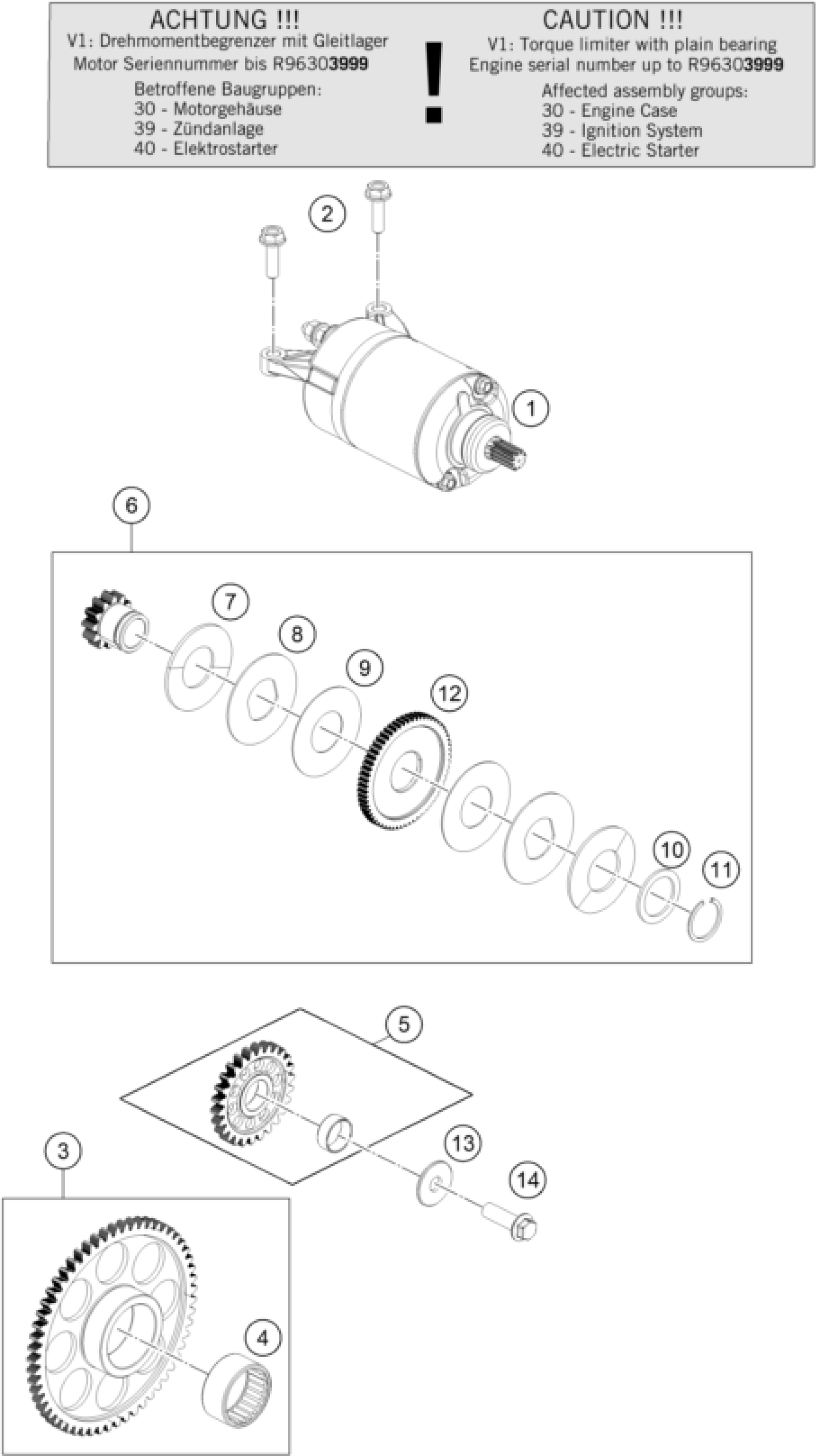

KTM 390 DUKE KTMR2R, blue 2024 ELECTRIC STARTER Diagram

#

Description

Price

1

MOTOR STARTER KT26 JP351601

9634000100024

Unavailable

2

Bolt-Flange-Kad ST-D DIA-06 L-

J025060221

Unavailable

3

gear assembly clutch starter

96340020033

Unavailable

4

BEARING NEEDLE ROLLER

J430002801600

Unavailable

5

Gear Assembly Starter Counter

96340022033

Unavailable

6

gear assembly starter counter

96340016033

Unavailable

7

CONICAL WASHER

90240023006

Unavailable

8

WASHER

90240023005

Unavailable

9

PAD FRICTION

90240023004

Unavailable

10

SHIM 1.8 mm THK

J690002218000

Unavailable

10

SHIM 2.0 mm THK

J690002220000

Unavailable

10

SHIM 2.2 mm THK

J690002222000

Unavailable

10

SHIM 2.4 mm THK

J690002224000

Unavailable

11

RING SNAP INPUT

J710002012000

Unavailable

12

GEAR STARTER COUNTER

90240023002

Unavailable

13

WASHER PIVOT BOLT

J690000820000

Unavailable

14

bolt flanged M8x1.25

J900000802504

Unavailable

10

SHIM 2.6 mm THK

J690002226000

Unavailable

10

SHIM 2.8 mm THK

J690002228000

Unavailable
